S5K3H7 Sensor MIPI Interface 8MP Camera Module For Mobile Phone
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-81150-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/3.2" Samsung S5K3H7 |
|---|---|---|---|
| Resolution: | 8MP (3264*2448) | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | 4K |
| High Light: | S5K3H7 8MP Camera Module,RGB 8MP Camera Module,S5K3H7 4K Camera Module |
||
Product Description
S5K3H7 Sensor MIPI Interface 8MP Camera Module For Mobile Phone
8MP MIPI Camera Module With Samsung S5K3H7 Sensor For Mobile Phone Front Camera
8MP Camera Module

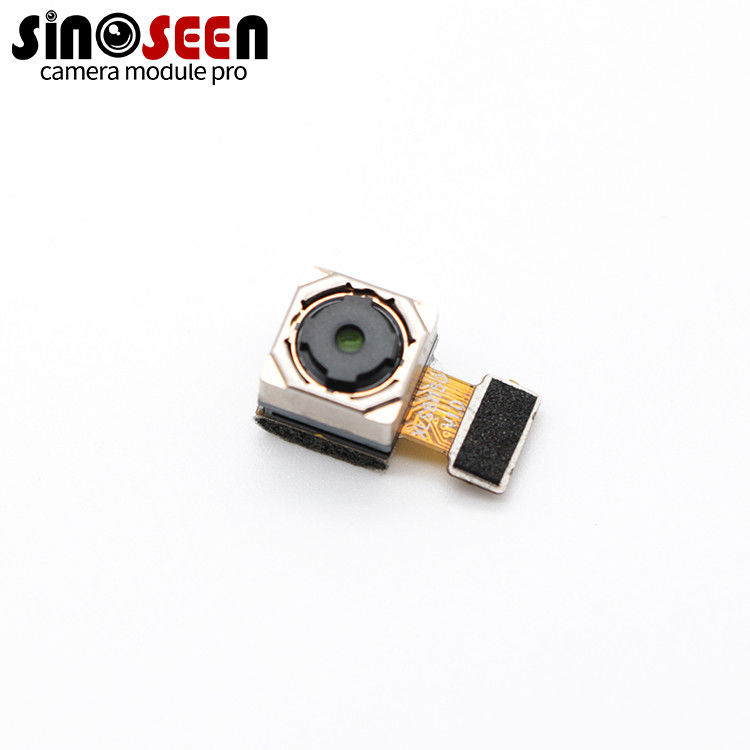

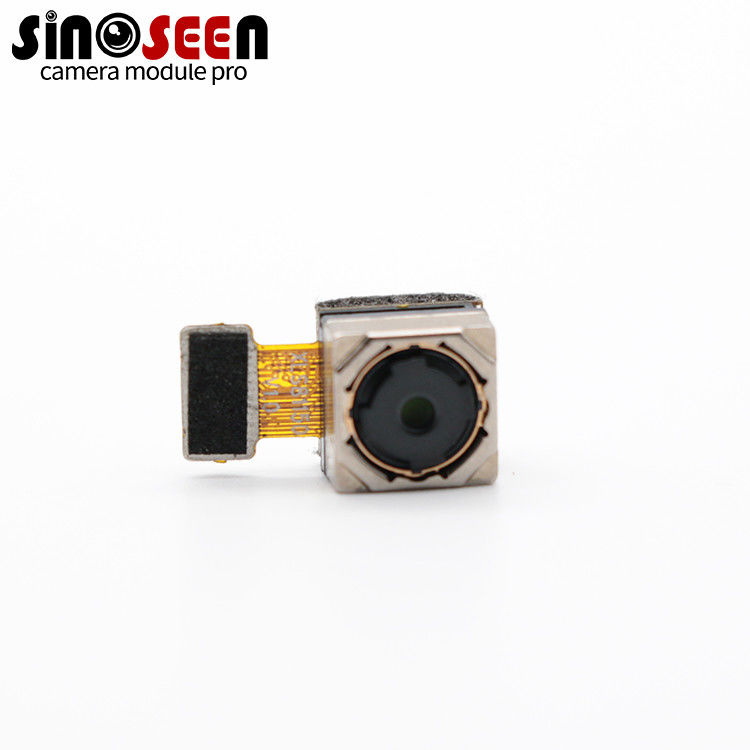

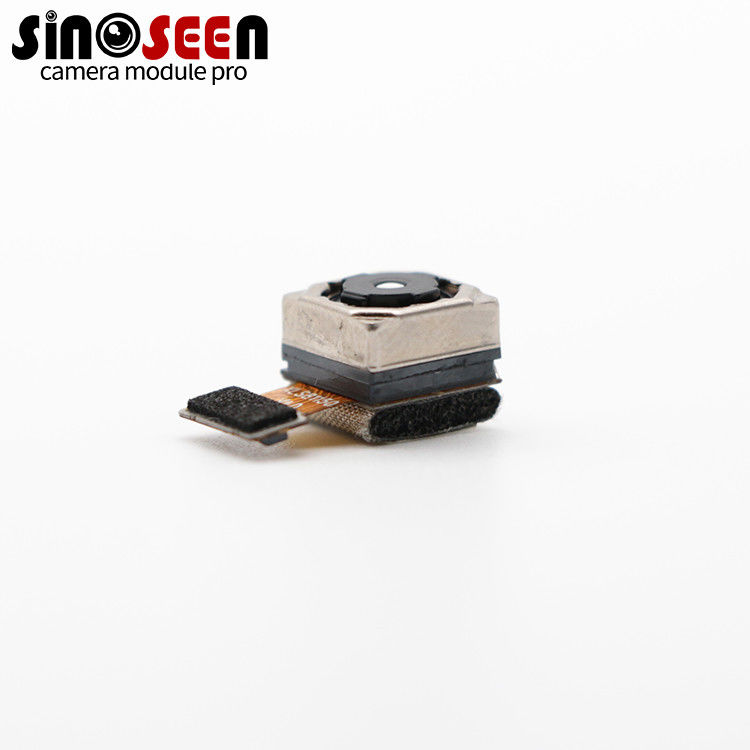

This is an 8MP MIPI camera module with Samsung sensor S5K3H7. It is used as the front camera of a mobile phone. The image is very clear and stable.
If you need to design a camera module for your mobile phone or tablet, congratulations, you have found the right person. We have extensive experience in the field of mobile phones and tablet cameras. We have customized a variety of camera modules for hundreds of mobile phones, high-pixel, low-pixel, fixed focus, auto focus, various structure sizes, we can perfectly provide you with the right plan.
|
Model No |
SNS-81150-V1.0 |
|
Sensor |
1/3.2’’ Samsung S5K3H7 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Auto focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Dimension |
Customizable |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
