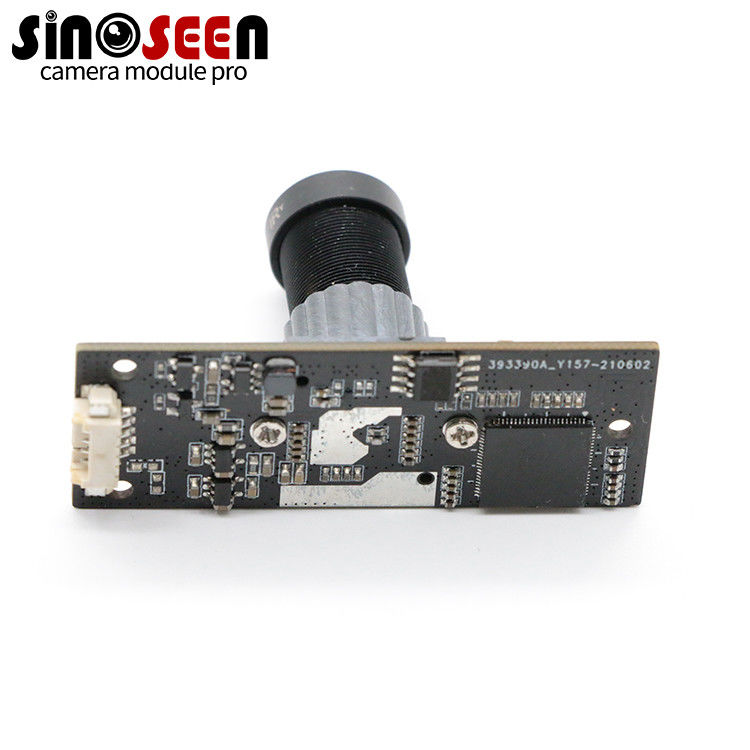

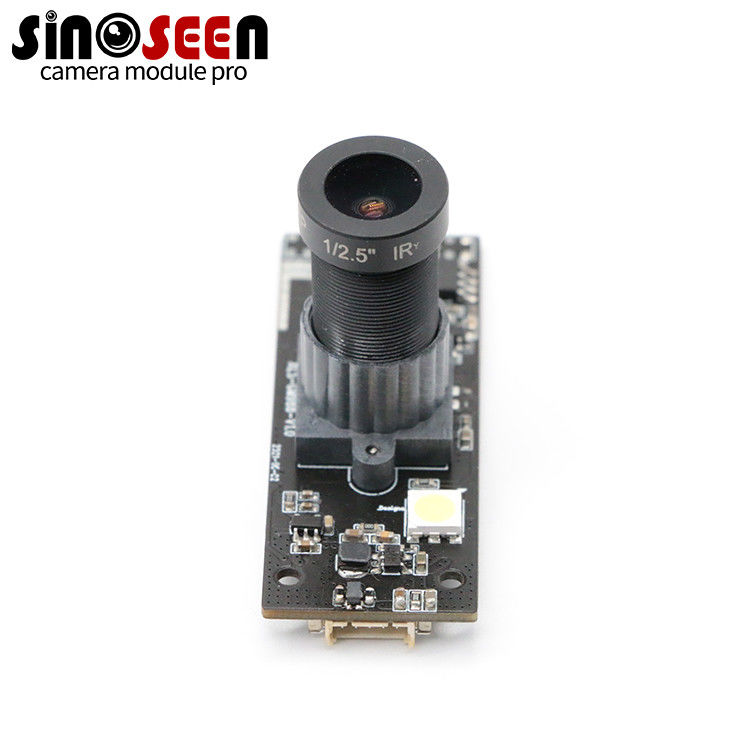

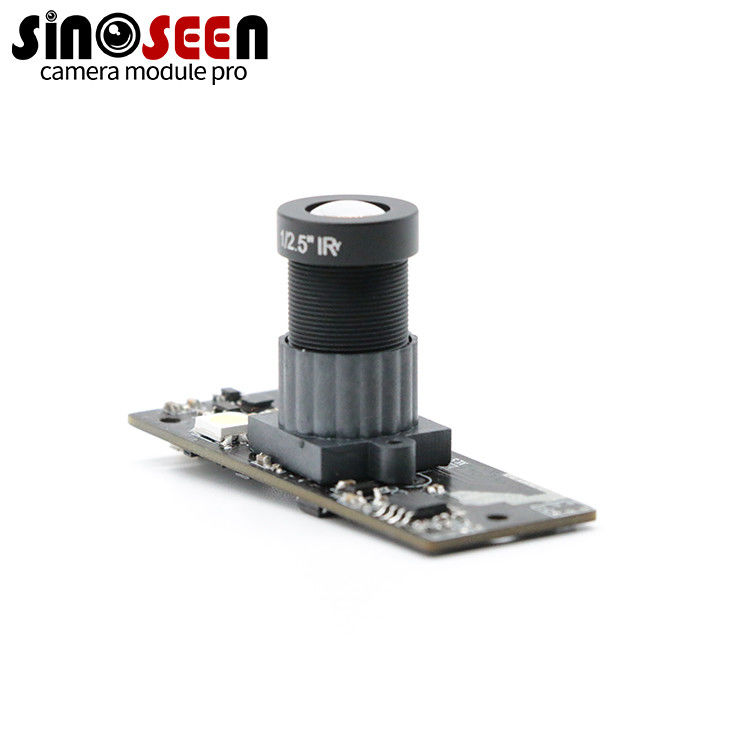

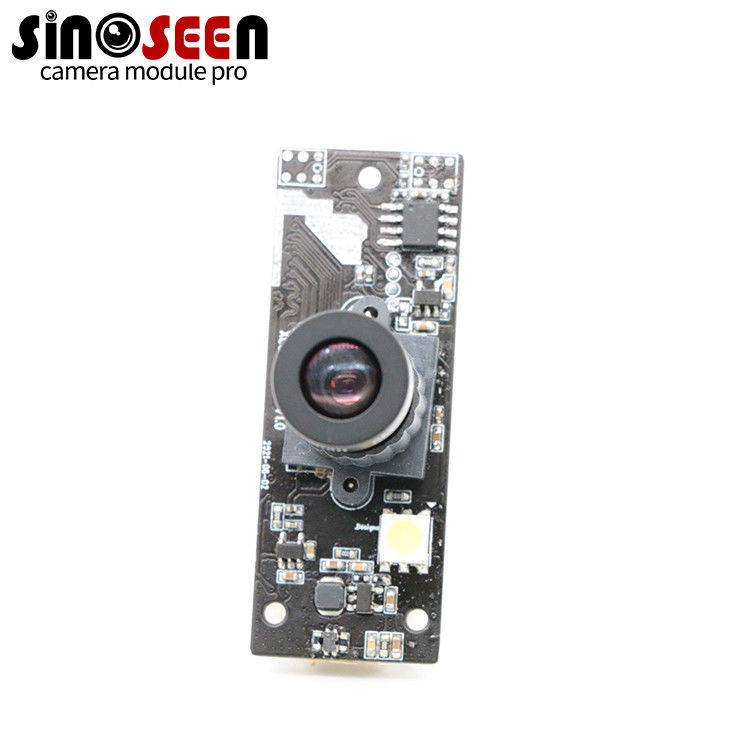

4K 30fps 8MP HD USB Camera Module With SONY IMX317 Sensor

4K 30fps 8MP HD USB Camera Module With SONY IMX317 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-8MP-IMX317-2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8MP Camera Module Sensor: 1/2.5'' SONY IMX317 CMOS
Resolution: 8MP 3840(H) X 2160(V) Dimensions: 38MMx38MM(Customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB Feature: HD
High Light:

30fps USB Camera Module

,

SONY IMX317 Sensor USB Camera Module

,

4K HD 8MP Camera Module

Product Description

SONY IMX317 sensor4k 30fps HD usb camera module



4k 30fps HD Usb Camera Module 8mp With SONY IMX317 Sensor



8MP HD USB Camera Module

This is our newly developed camera module, using Sony IMX317 sensor, this sensor has a resolution of 8MP (3840x2160).IMX317 is a 7.20mm diagonal (1/2.5 type) star-level CMOS image sensor with a color square pixel array and approximately 8.51m effective pixels. The 12-bit digital output makes it possible to output signals with approximately 8.51m effective pixels for high-resolution shooting still images.
It also has three power supply voltages: analog 2.8V, digital 1.2V and 1.8V for I/O interface with low power consumption.
In addition, it achieves a 12-bit digital output through horizontal and vertical addition and sub-sampling for shooting high-speed and high-definition moving images. The sensor realizes the functions of high sensitivity, low dark current, and has an electronic shutter function with variable storage time.Can be used for face recognition, HD photo, Gao Paiyi, aerial drone, HD monitoring, etc.



Specification

Model No

SNS-8MP-IMX317-2

Sensor

1/2.5’’ SONY IMX317 CMOS

Pixel

8 Mega Pixel

Most effective pixels

3840(H) x 2160(V)

Pixel Size

1.62µm x 1.62µm

Image area

3864um (H) x 2196um (V)

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

Chroma

Color, RGB

Clock Frequency

6 to 72 MHz

Microphones

Built-in

Interface type

Micro USB

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure

Lens

Focal length: 3.6mm

Lens construction: 5E+IR

D FOV: 100 degree

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Operating Voltage

DC 5V

Operating Current

260mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC





4K 30fps 8MP HD USB Camera Module With SONY IMX317 Sensor 04K 30fps 8MP HD USB Camera Module With SONY IMX317 Sensor 14K 30fps 8MP HD USB Camera Module With SONY IMX317 Sensor 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
