8mp HD 1080p Wifi Camera Module With SONY CMOS Sensor IMX214
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-wifi-imx214 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8MP Camera Module | Sensor: | 1/3"CMOS |
|---|---|---|---|
| Resolution: | 8mp 3840*2160 | Dimensions: | (customizable) |
| Lens FOV: | 75°(optional) | Focus Type: | Fixed Focus |
| Interface: | Wifi | Feature: | Wifi |
| High Light: | 8MP WiFi Camera Module,IMX214 Sensor WiFi Camera Module,1080P 8MP Camera Module |
||
Product Description

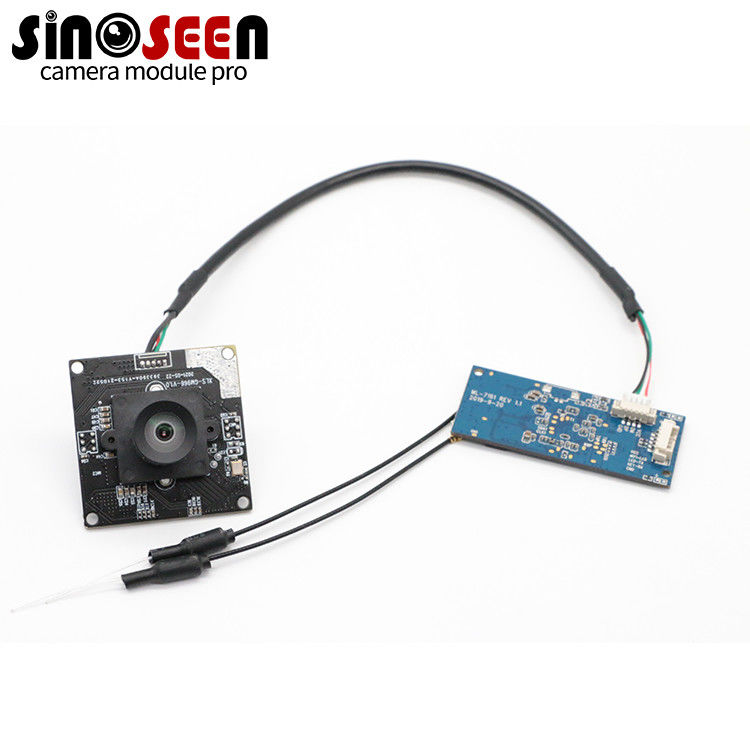

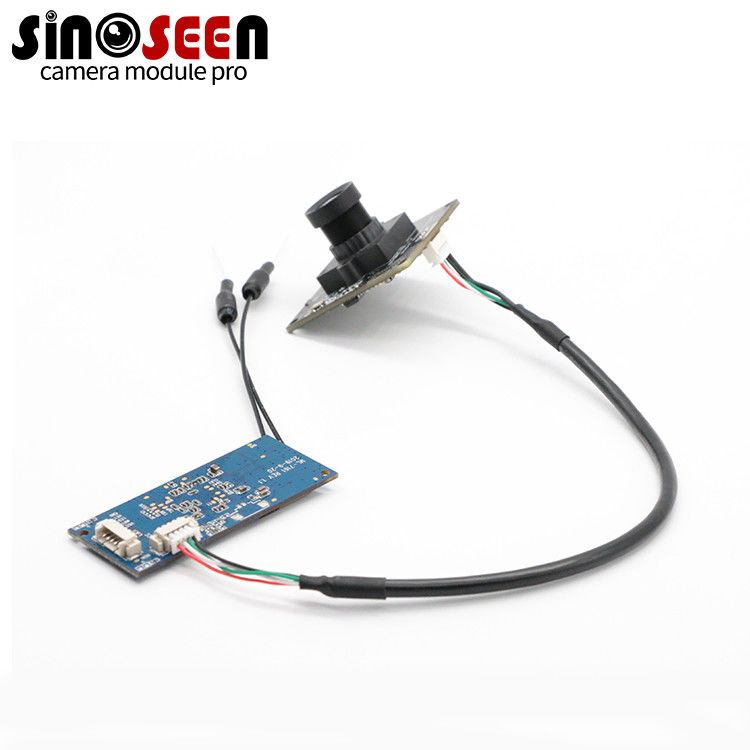

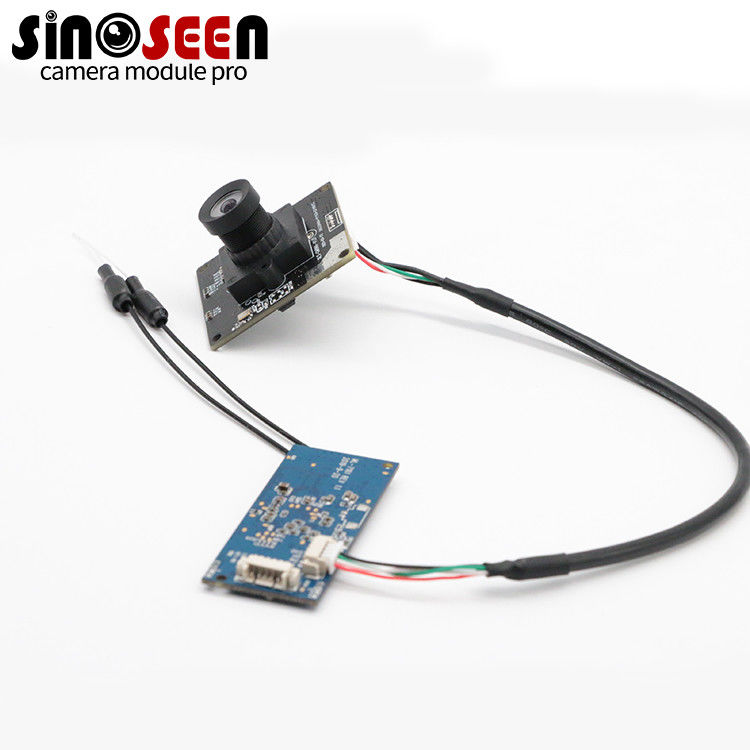

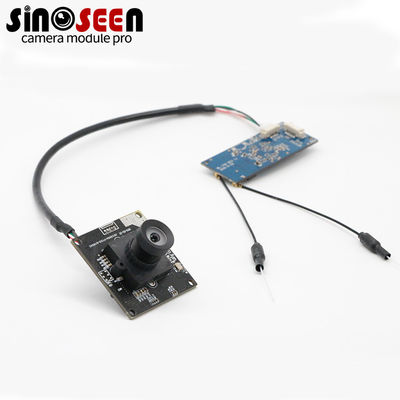

SONY CMOS Sensor IMX214 8mp HD 1080p Wifi Camera Module
8mp HD 1080p Wifi Camera Module With SONY CMOS Sensor IMX214
This is an ultra-high-definition 8MP camera module with IMX214 sensor from SONY.It can be connected to WiFi, it is a WiFi camera.The pixels can reach 30-16 million.IMX214 is the second generation of Exmor RS for Mobile series stacked CMOS image sensors developed by Sony. This sensor is upgraded on the basis of the same series of IMX135, with an effective pixel of about 13.13 million and a size of 1/3.06 inches (about 5.867 mm diagonal). IMX214 is the industry’s first sensor that supports full 13 million pixels high dynamic range (HDR) output at 30 frames per second, and it is also Sony’s first mobile terminal that supports Sony’s exclusive partitioned high dynamic range exposure (SME-HDR). CMOS sensor.
Compared with the previous generation IMX135, the Sony IMX214 adopts more advanced technology, and has significantly improved low-light performance, power consumption, and camera speed. The full HD 1080P shooting frame rate has been increased from 30 frames per second to 60 frames per second. Added 4K camera (30 frames per second), and used the latest zoned high dynamic range exposure (SME-HDR)
If you need, we can also customize your camera module according to your needs.
|
Model No |
SNS-wifi-imx214 |
|
|
|
Image Sensor |
SONY IMX214 |
|
|
|
Image Sensor Size |
1/3”CMOS |
|
|
|
Effective Pixels |
3840*2160 |
|
|
|
Pixel size |
1.62umX1.62um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG / YUY2 |
|
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
|
IR-LED |
|
|
|
LED IR-850( |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M6.5 |
LENS |
|
|
Lens Construction |
5P+IR |
|
|
|
F/NO |
2.1 |
|
|
|
EFL |
3.24mm |
|
|
|
FOV |
D:75° H:52° V:48° ±3° |
|
|
|
Micro shooting distance |
10cm-infinity |
|
|
|
MIC |
support MIC |
|
|
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
