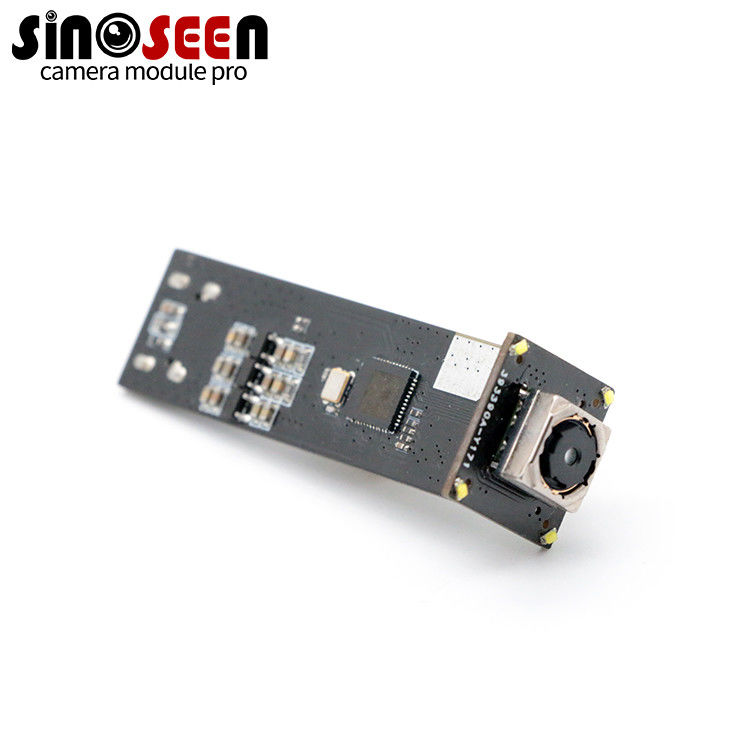

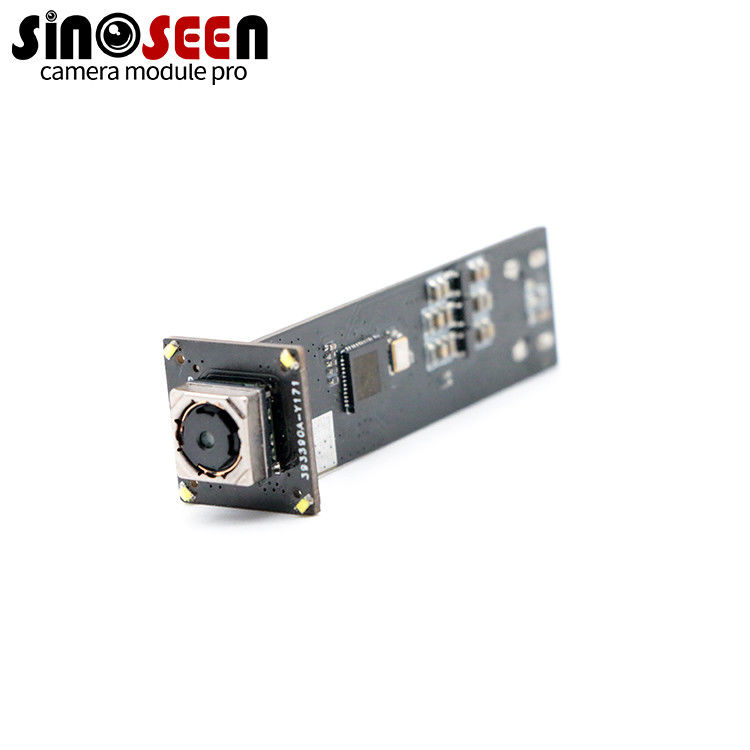

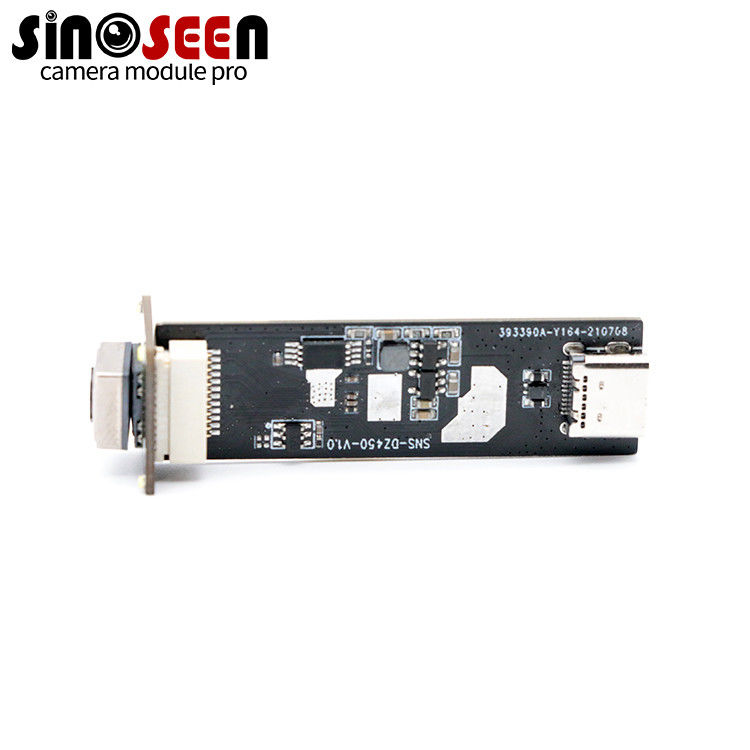

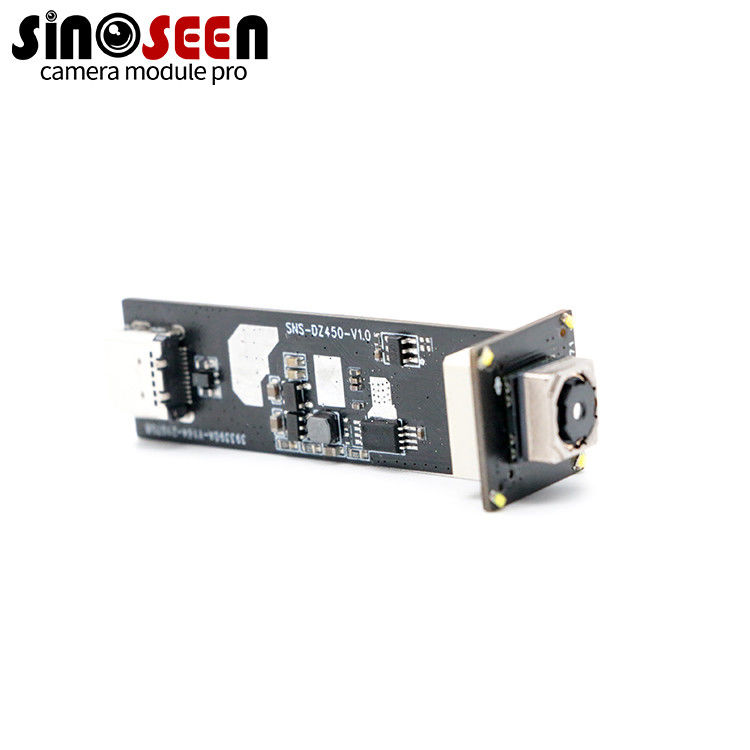

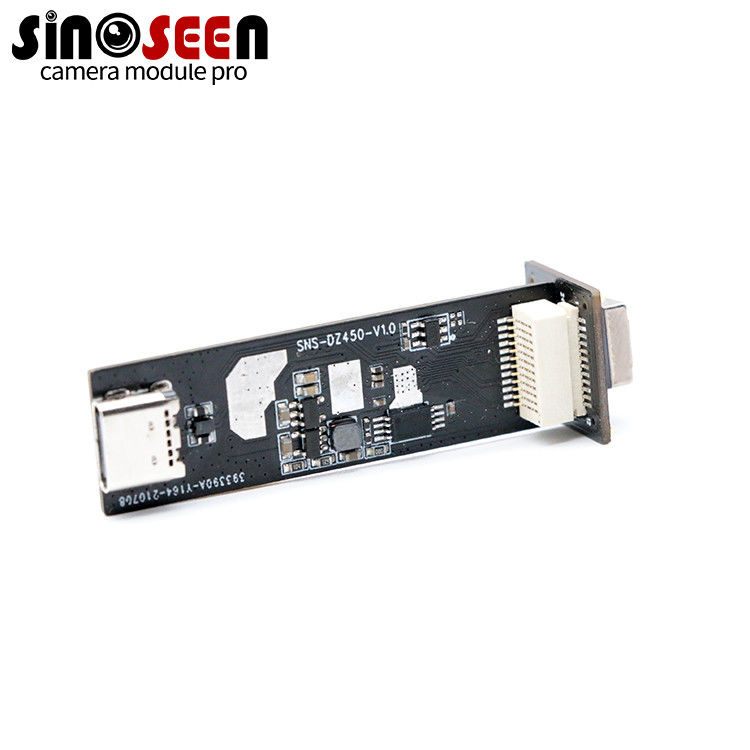

IMX179 Sensor 4K Auto Focus 8MP USB 3.0 Camera Module

IMX179 Sensor 4K Auto Focus 8MP USB 3.0 Camera Module

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-8MP-IMX179-fgu0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8mp Camera Module Sensor: 1/3.2'' IMX179
Resolution: 8MP 3264(H) X 2448(V) Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB3.0 Feature: Auto Focus
High Light:

Auto Focus USB 3.0 Camera Module


IMX179 Sensor USB 3.0 Camera Module


Auto Focus 8MP Camera Module

Product Description

USB3.0 8MP USB camera module 4k Auto Focus with sensor IMX179

4k Auto Focus USB3.0 8MP USB camera module with SONY CMOS sensor IMX179


Auto Focus 8MP USB 3.0 Camera Module

For this product, we use the TYPE-C interface at the connector end according to customer needs


4k HD pixels

Maximum resolution: 3264(H) X 2448(V)

Support USB3.0 can also be compatible with USB2.0

◆ CMOS active pixel type point

◆ 2-wire serial communication circuit chip

◆ CSI2 serial data output

◆ Timing generator chip

◆ H and V drive circuit

◆ On CDS/PGA chip

◆ 10-bit AC converter chip

◆ Automatic optical black (OB ) On the clamp circuit chip

◆ PLL (rectangular wave/sine wave)

◆ High sensitivity, low dark current, no smear

◆ Excellent anti-flowering characteristics

◆ Variable shutter function (1H unit)

◆ R, G, B chip

◆ Max's primary Color pigment mosaic filter. 30 frames/sec in full pixel scanning mode

◆ Pixel rate: >260MHz (>30 frames/sec in full pixel mode)

Model No SNS-GM028M-V1.0
Sensor 1/3.2’’ IMX179
Pixel 8 Mega Pixel
Most effective pixels 3264(H) x 2448(V)
Pixel Size 1.4µm x 1.4µm
Compression format MJPG / YUY2
Resolution see above
Frame rate see above
Shutter Type Electronic rolling shutter
Focus type Auto/Fixed focus
S/N ratio 36dB
Dynamic range 60dB
Interface type USB 3.0
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens Focal length: 3.6mm
  Lens Size: 1/3 inch
  FOV: 90°
  Thread Size: M12*P0.5
Audio frequency Support
microphone Built-in
Power supply USB BUS POWER
Power consumption DC 5V, 200mA
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Not Supported
Dimension (customizable)
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default

Support OS
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
