4K 8MP HDR USB Camera Module With SONY IMX415 Sensor

4K 8MP HDR USB Camera Module With SONY IMX415 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-8MP-IMX415-bc00

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8mp Camera Module Sensor: 1/2.8'' SONY IMX415 CMOS
Resolution: 8MP 3840(H) X 2160(V) Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HDR
High Light:

4K HDR USB Camera Module

,

SONY IMX415 Sensor USB Camera Module

,

HDR 8MP Camera Module

Product Description

8MP HDR usb camera module 4K with SONY IMX415 sensor

4K 8MP HDR usb camera module with SONY IMX415 sensor



HDR USB Camera Module SONY IMX415

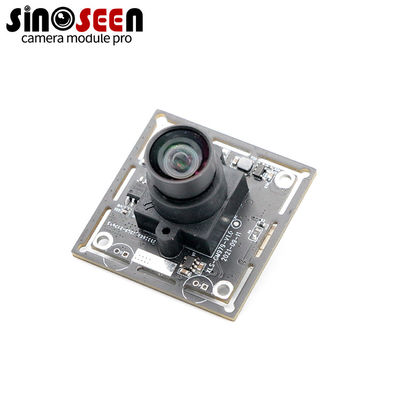

This is our newly developed USB camera module with Sony IMX415 sensor.The size of the sensor is 1/2.8, the size is small, it is easier to obtain a larger depth of field. The maximum resolution is 3840*2160, and it can output 30FPS in full resolution. It has the characteristics of high dynamics and high definition, which can perfectly restore the true colors of the picture.The module size is 38MM*38MM (compatible with 32MM*32MM), we can adjust the size and shape according to your requirements;In addition, we have various FOVs from 40° to 200°. This IMX415USB camera module is often widely used in high-definition photography, video surveillance, video conferencing all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition, etc.



Specification
Model No SNS-8MP-IMX415-bc00
Sensor 1/2.8’’ SONY IMX415 CMOS
Pixel 8 Mega Pixel
Most effective pixels 3840(H) x 2160(V)
Pixel Size 1.45µm x 1.45µm
Image area 3864um (H) x 2196um (V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Chroma Color, RGB
Clock Frequency 6 to 72 MHz
Microphones Built-in
Interface type USB2.0
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens Focal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Operating Voltage DC 5V
Operating Current 260mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension Customizable
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
