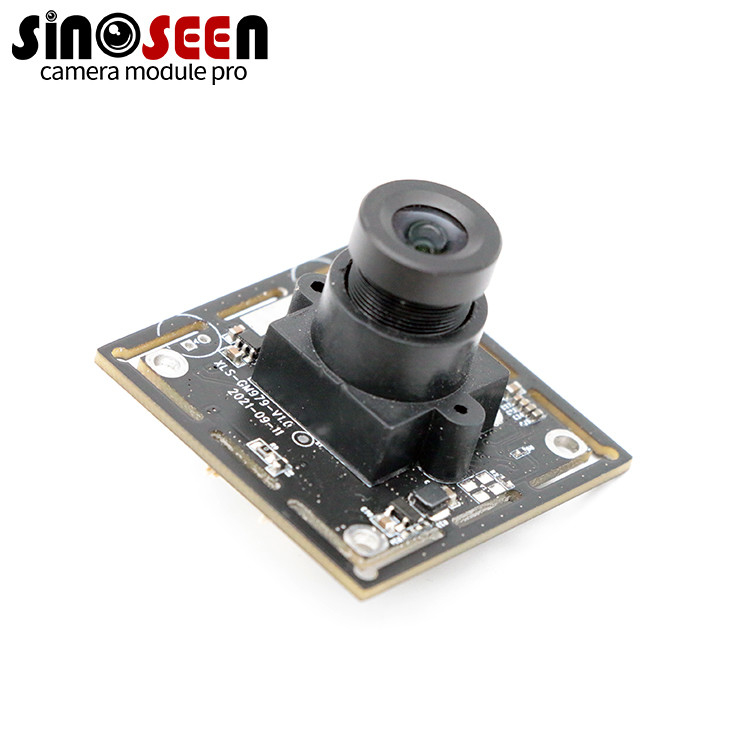

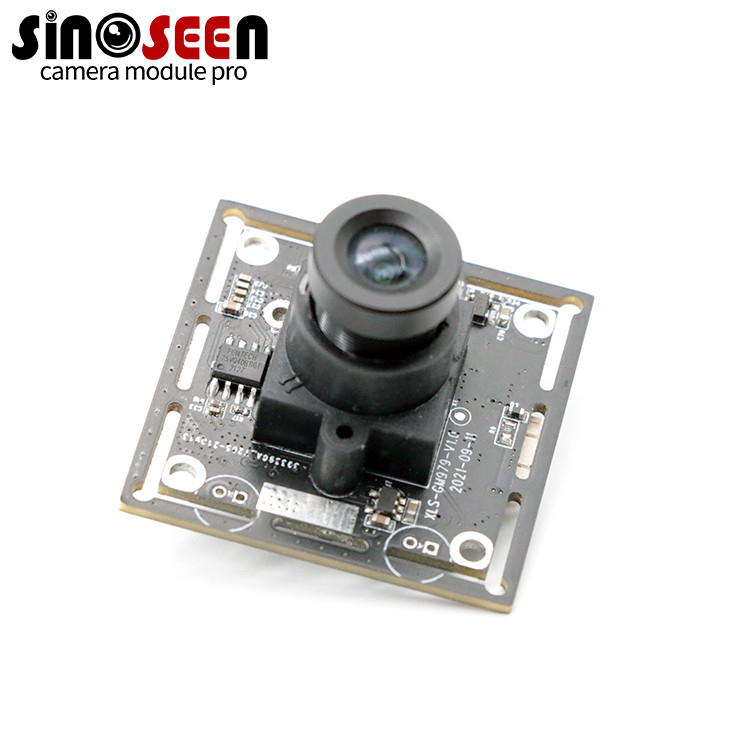

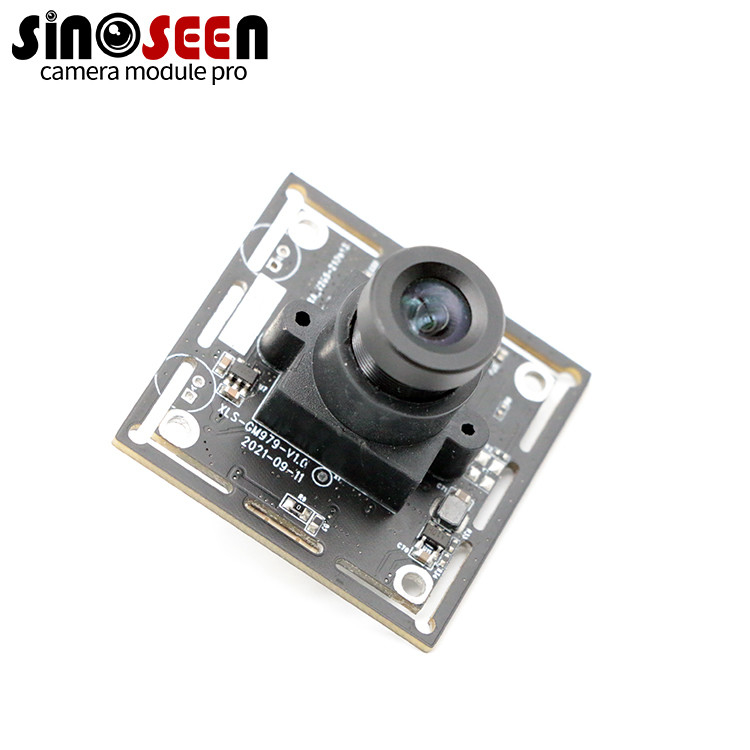

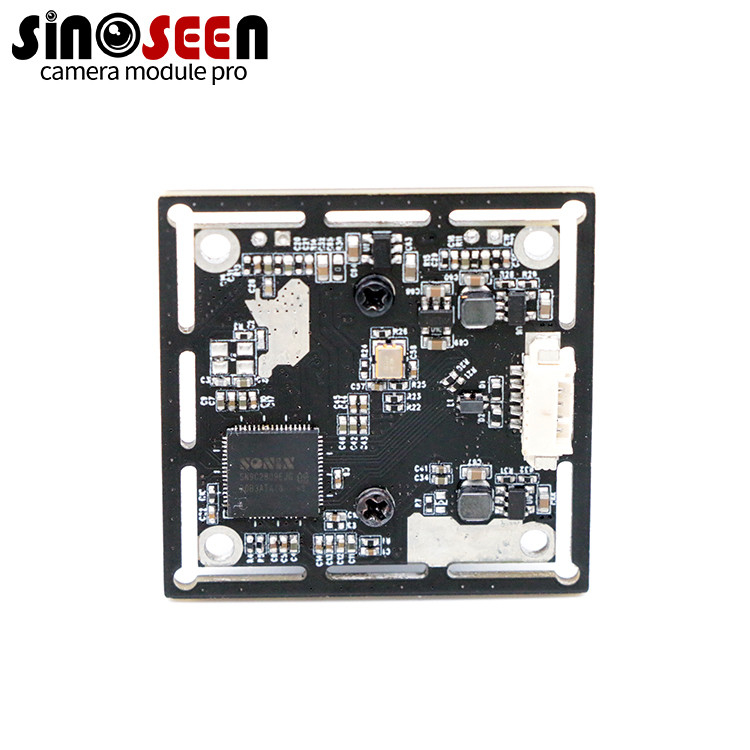

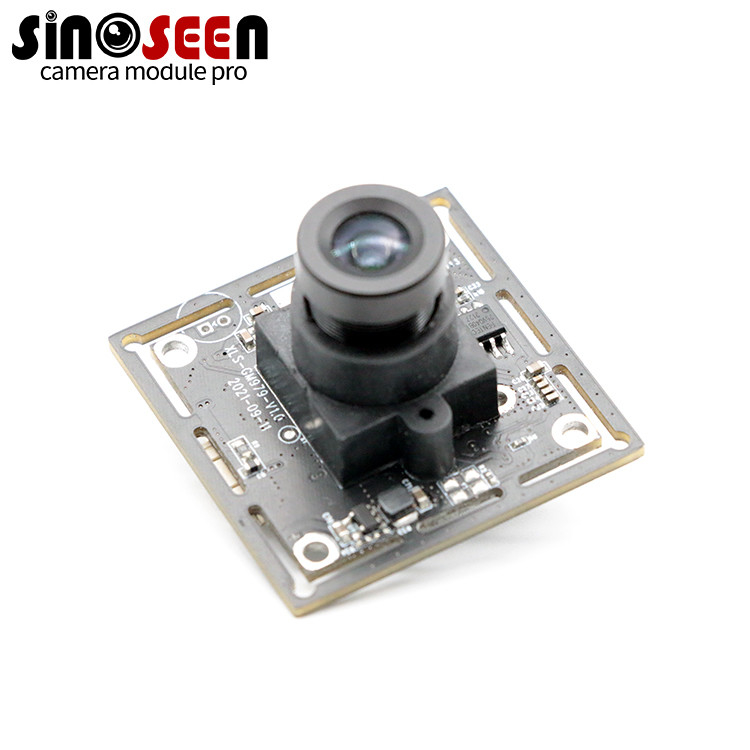

Fixed Focus 8MP 4K USB 2.0 Camera Module With Sony IMX415 COMS Sensor

Fixed Focus 8MP 4K USB 2.0 Camera Module With Sony IMX415 COMS Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-8MP-IMX415-jkl

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8MP Camera Module Sensor: 1/2.8'' SONY IMX415 CMOS
Resolution: 3864um (H) X 2196um (V) Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: 4K
High Light:

8MP USB 2.0 Camera Module

,

IMX415 Sensor USB 2.0 Camera Module

,

Fixed Focus 8MP Camera Module

Product Description

4K Usb camera module HDR 8mp Fixed Focus with Sony IMX415 COMS Sensor

New Style 8mp Fixed Focus 4K Usb Camera Module HDR With Sony IMX415 COMS Sensor



Size: 1/2.8" can provide high-quality images

Maximum resolution: 3840*2160

Features:

1. MJPEG/YUY2 dual output format is optional

2. Mini board size 38x38mm for embedded applications

3. Low power consumption-very suitable for portable devices

4. 4K high-definition pixels, can output at 30FPS frame rate at full resolution, smooth pixels

Application: high-definition photography, video surveillance, video conference all-in-one, video teaching, QR code recognition, Internet of Things, aerial drones and other fields


Specification

Model No SNS-8MP-IMX415-jkl
Sensor 1/2.8’’ SONY IMX415 CMOS
Pixel 8 Mega Pixel
Most effective pixels 3840(H) x 2160(V)
Pixel Size 1.45µm x 1.45µm
Image area 3864um (H) x 2196um (V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Chroma Color, RGB
Clock Frequency 6 to 72 MHz
Microphones Built-in
Interface type USB2.0
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens Focal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Operating Voltage DC 5V
Operating Current 260mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension 38MMx38MM Customizable
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
