8MP 4K FHD USB OEM Camera Module 3X 5X Optical Zoom With IMX415 Sensor

8MP 4K FHD USB OEM Camera Module 3X 5X Optical Zoom With IMX415 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-GM1006-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8mp Camera Module Sensor: 1/2.8'' SONY IMX415 CMOS
Resolution: 8MP 3864(H) X 2192(V) Dimensions: (customizable)
Pixel Size: 1.45µm X 1.45µm Focus Type: Fixed Focus
Interface: USB2.0 Feature: HDR
High Light:

FHD OEM Camera Module

,

USB OEM Camera Module

,

IMX415 Sensor 8MP Camera Module

Product Description

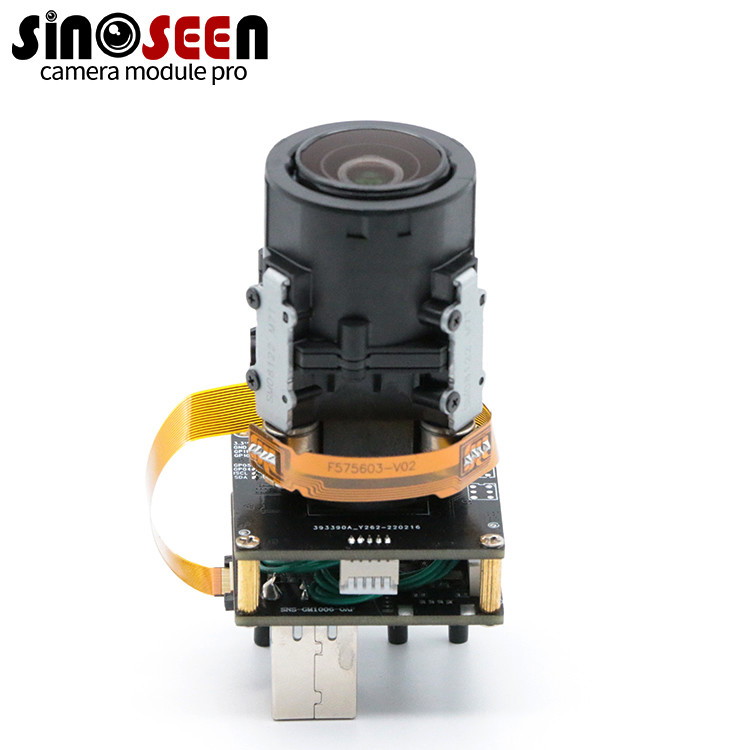

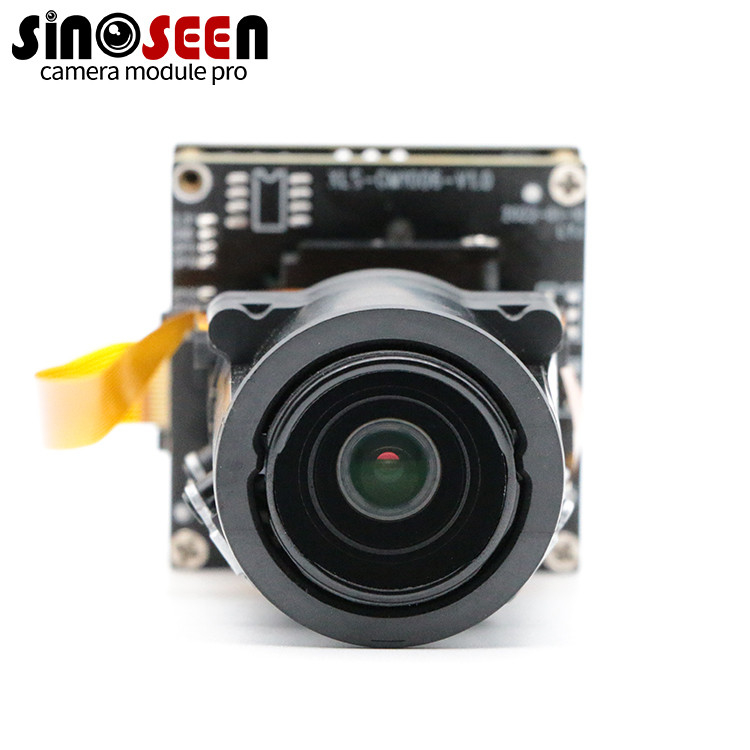

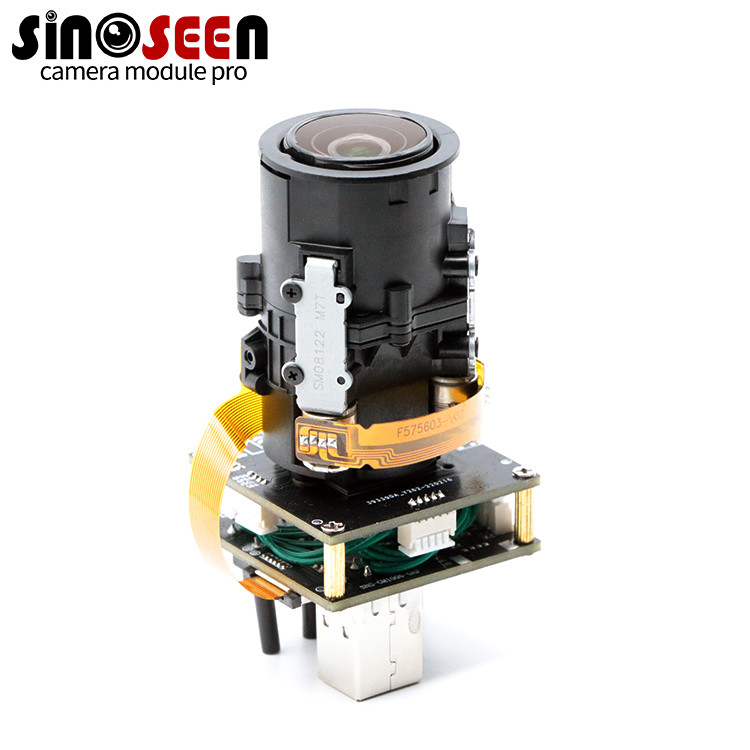

8MP 4K FHD USB OEM Camera Module 3X 5X Optical Zoom with IMX415 Sensor



This is a USB camera module with Sony IMX415 sensor. 3X 5X optical zoom, the sensor size is 1/2.8, it is easier to get a larger depth of field in a small size. The highest resolution is 3840*2160, and the full resolution can output 30FPS. The features of high dynamic and high definition can perfectly restore the true color of the picture. We can adjust the size and shape according to your requirements; in addition, we have various FOVs from 40° to 200°. This IMX415USB camera module is often widely used in high-definition photography, surveillance cameras, FA cameras, industrial cameras, video surveillance, video conferencing all-in-one, video teaching, Internet of Things, aerial photography drones, QR code recognition, etc.


Specification
Model No SNS-GM1006-V1.0
Sensor 1/2.8’’ SONY IMX415 CMOS
Pixel 8 Mega Pixel
Most effective pixels 3840(H) x 2160(V)
Pixel Size 1.45µm x 1.45µm
Image area 3864(H) x 2192(V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Chroma Color, RGB
Clock Frequency 6 to 72 MHz
Microphones Built-in
Interface type USB2.0
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens Focal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Operating Voltage DC 5V
Operating Current 260mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension Customizable
Storage temperature -40˚C to 85 ˚C
Operating temperature -30˚C to 85 ˚C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
