8MP IMX179 IR Raspberry Pi USB HD Camera Module For Video Conferencing

8MP IMX179 IR Raspberry Pi USB HD Camera Module For Video Conferencing

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-WK028M-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8mp Camera Module Sensor: 1/3.2'' IMX179
Resolution: 8mp 3264(H) X 2448(V) Dimensions: (customizable)
Lens FOV: 180°(optional) Focus Type: Fixed Focus
Interface: USB BUS POWER Feature: HD
High Light:

8MP HD Camera Module

,

IMX179 HD Camera Module

,

USB 8MP Camera Module

Product Description

8MP IMX179 with IR Auto Exposure Raspberry Pi HD USB Camera Module for Video Conferencing

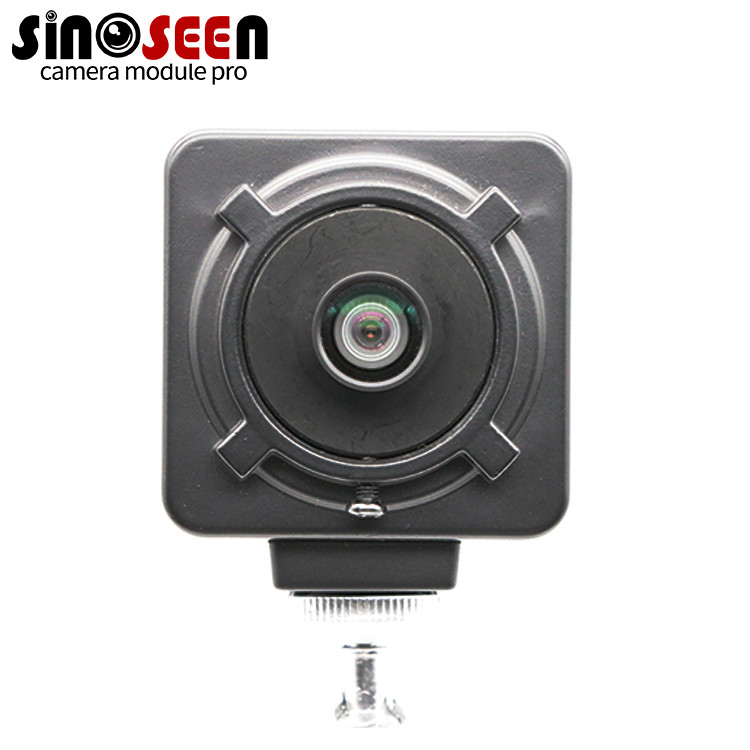

USB camera module IMX179

This is a camera module with Sony IMX179 CMOS Sensor and a distortion-free HD FOV:D180° (optional) lens. This 8MP module is far ahead of other 8MP cameras in terms of low-light capability, power consumption and camera speed. This module performs particularly well in low-light environments, and the sensitivity has also been significantly improved. In addition, the frame rate of this product document reaches 30fps. Compared with other sensors with less than 25fps, this product is extremely smooth when previewing and shooting. It is mainly used in educational lectures, video podiums, conference cameras, product booths and other fields.



Specification
Sensor
1/3.2’IMX179
Pixel
8 Mega Pixel
Most effective pixels
3264(H) x 2448(V)
Pixel Size
1.4µm x 1.4µm
Compression format
MJPG / YUY2
Resolution
see above
Frame rate
see above
Shutter Type
Electronic rolling shutter
Focus type
Fixed focus
S/N ratio
TdB
Dynamic range
TdB
Interface type
USB2.0
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Lens
Focal length: 3.6mm

Lens Size: 1/3 inch

FOV: 180° (Optional)

Thread Size: M12*P0.5
Audio frequency
Support
microphone
Built-in
Power supply
USB BUS POWER
Power consumption
DC 5V, 200mA
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control (AEC)
Support
Auto White Balance (AEB)
Support
Auto Gain Control (AGC)
Not Supported
Dimension
50*50*57mm (customizable)
Storage temperature
-20~80℃
Operating temperature
0°C to 60°C
USB cable length
Default

Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC





8MP IMX179 IR Raspberry Pi USB HD Camera Module For Video Conferencing 08MP IMX179 IR Raspberry Pi USB HD Camera Module For Video Conferencing 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
