8mp 4k 1080p Mipi Camera Module Mobile Phone Scan Code Scanning
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHs |
| Model Number: | SNS-8856-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/4" Omnivision OV8856 |
|---|---|---|---|
| Resolution: | 8MP (3264*2448) | Dimensions: | Customizable |
| Lens FOV: | (optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Low Power Consumption |
| High Light: | 8mp Mipi Camera Module,Mipi Camera Module 1080p,Code Scanning 8MP Camera Module |
||
Product Description

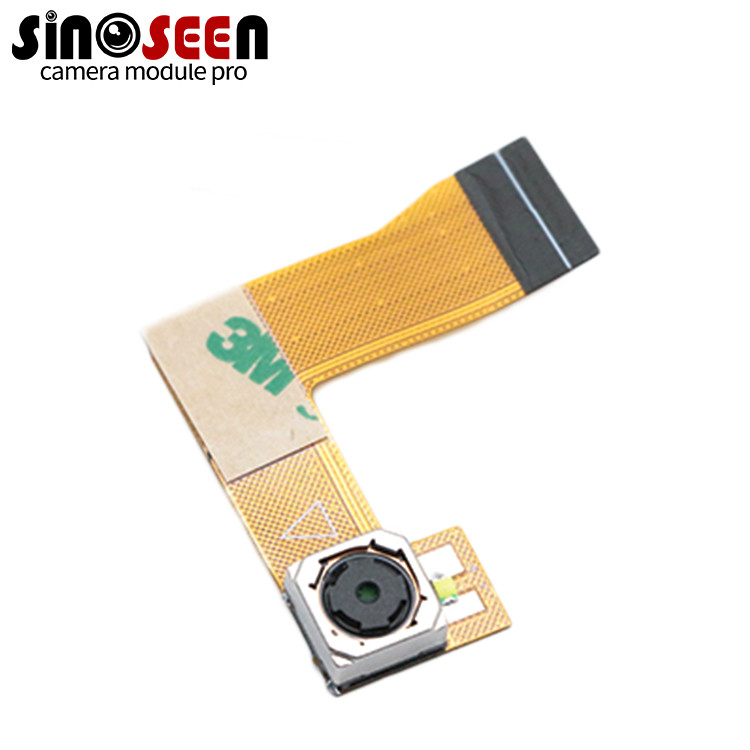

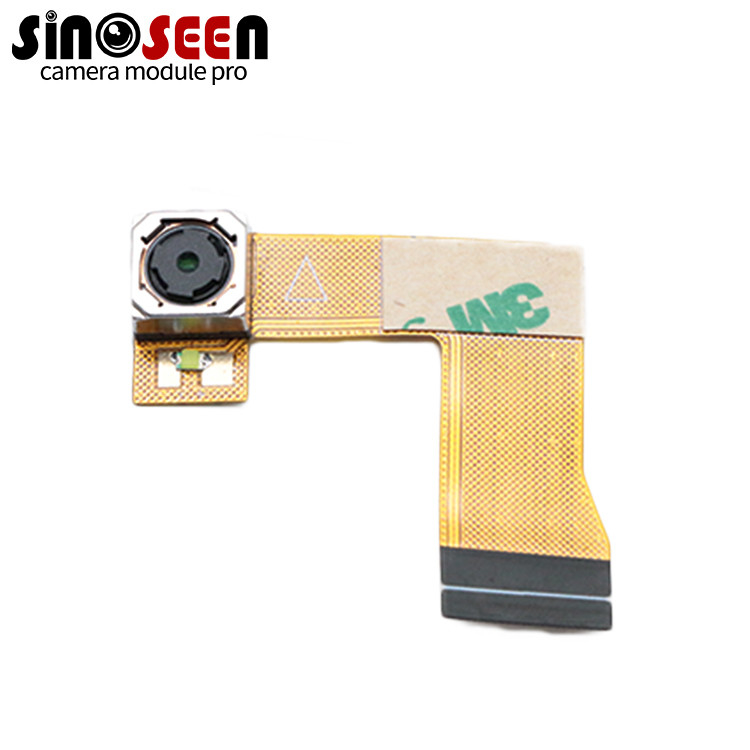

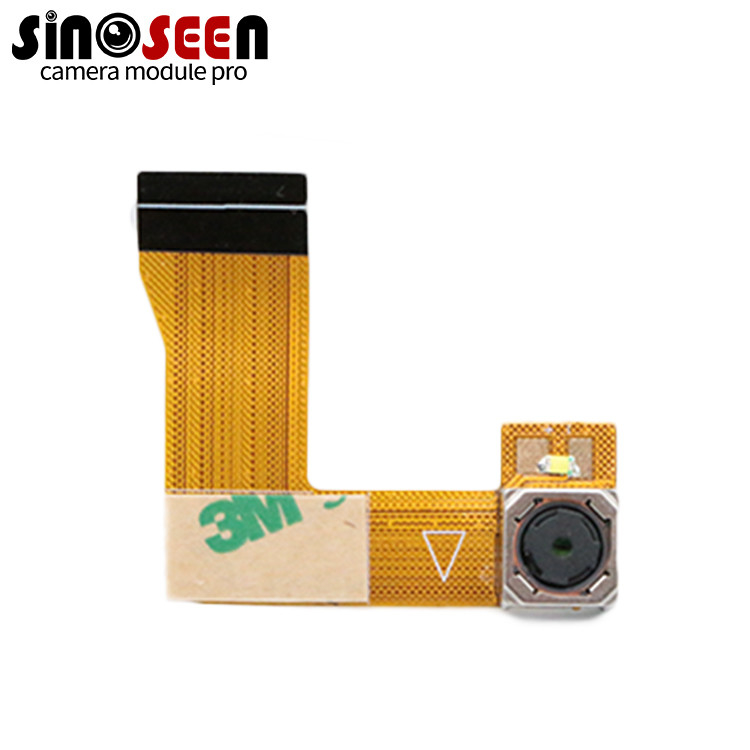

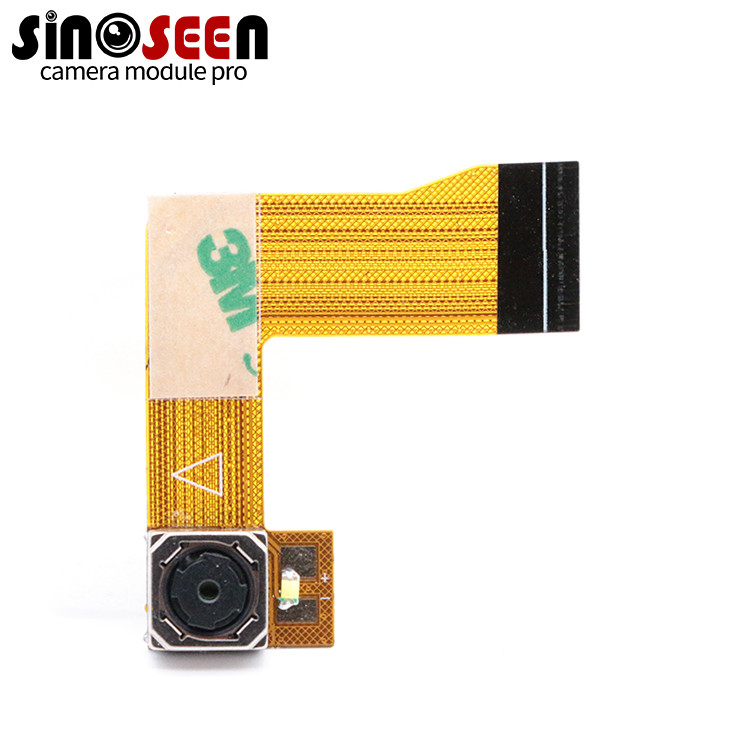

8mp 4k 1080p mipi camera module mobile phone scan code scanning
This is a camera module with 8MP resolution, 4K and 1080p video recording capabilities, and a Mipi interface, which can be used for mobile phone scan code applications.
In this context, 8MP refers to the static image resolution of the camera, while 4K and 1080p refer to the video recording resolution of the camera. Mipi interface is a standard for high-speed data transfer. This camera module can be used for mobile phone applications such as scanning QR codes.
Specification:camera module 8MP
|
Model No |
SNS-8856-V1.0 |
|
Sensor |
1/4’’ Omnivision OV8858 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264 (H) x 2448 (V) |
|
Pixel Size |
1.12µm x 1.12µm |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
auto focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
TBDmV/Lux-sec |
|
Lens FOV |
Default 76° (Optional) |
|
Dimension |
Customizable |
|
Storage temperature |
-30°C to 85°C |
|
Operating temperature |
0°C to 60°C |
