Ultra HD Wide Angle IMX317 Sensor USB Camera Module 8MP 4K
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-8MP-IMX317-S1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.5"SONY IMX317 |
|---|---|---|---|
| Resolution: | 8MP (3840*2160) | Dimensions: | Customizable |
| Lens FOV: | 120°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | 4K |
| High Light: | 8MP 4K USB Camera Module,IMX317 Sensor USB Camera Module,Wide Angle 8MP Camera Module |
||
Product Description
SONY IMX317 Sensor Wireless Camera Module 8MP 4K Ultra HD Wide Angle
The Best 8MP 4K Ultra HD Wide Angle USB Camera Module With SONY IMX317 Sensor
Camera Module 8MP 4K

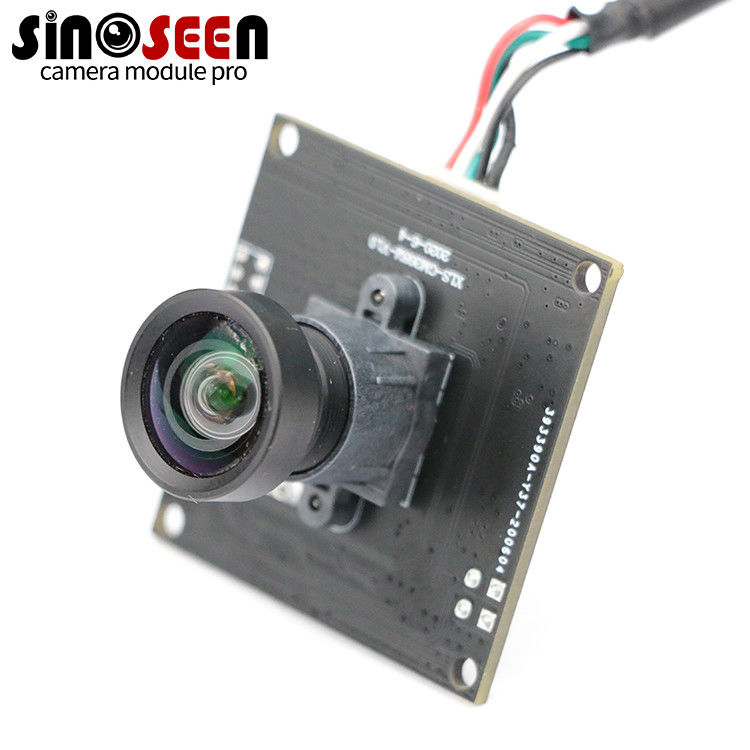

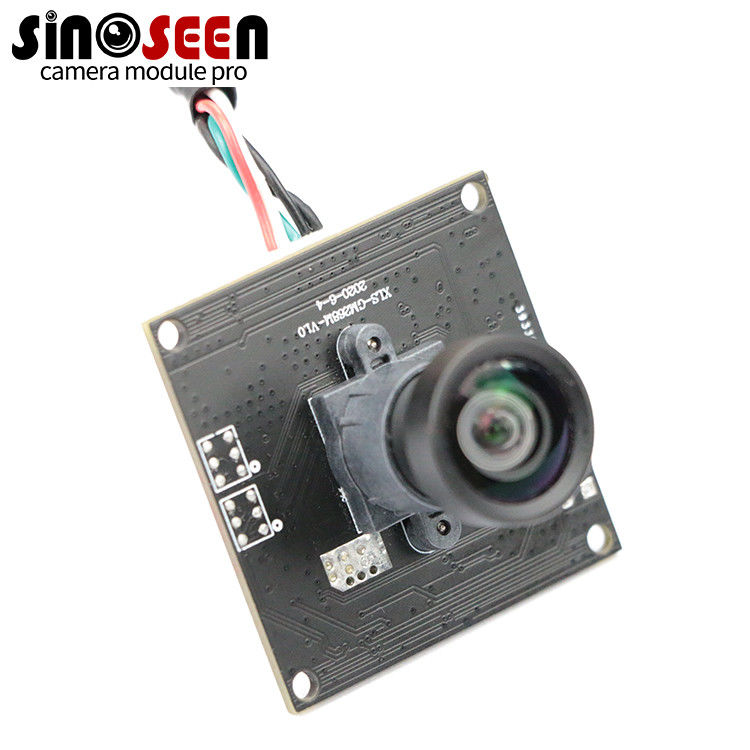

This is a Sony IMX317 image sensor 8MP 4K ultra-high-definition wide-angle USB camera module camera module, which can capture images at a resolution of 8 megapixels and support 4K ultra-high-definition video. The camera module has a wide-angle lens, which can capture a wider field of view than conventional lenses.
The camera module connects to the host device via USB, a widely used interface that is compatible with many different types of devices. This makes it easy to integrate the camera module into a computer, microcontroller, or other type of system.
One of the main features of this camera module is its high resolution and support for 4K Ultra HD video, which can provide very detailed and clear images. Wide-angle lenses can be used in applications that require a wider field of view, such as video conferencing, surveillance, or other types of monitoring systems.
Specification
|
Model No |
SNS-8MP-IMX317-S1 |
|
Sensor |
1/2.5’’ SONY IMX317 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.62µm x 1.62µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 120 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38MMx38MM (32MMx32MM) Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
