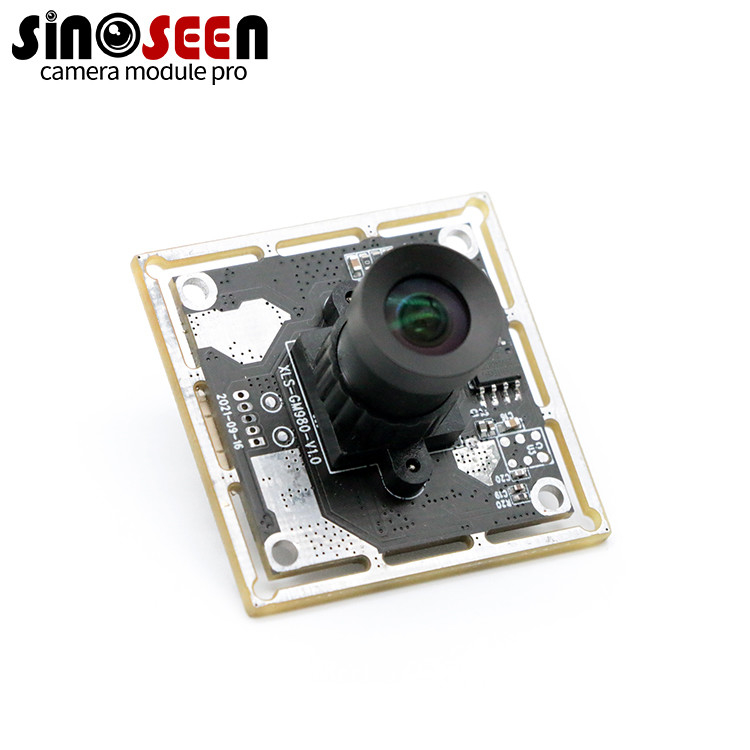

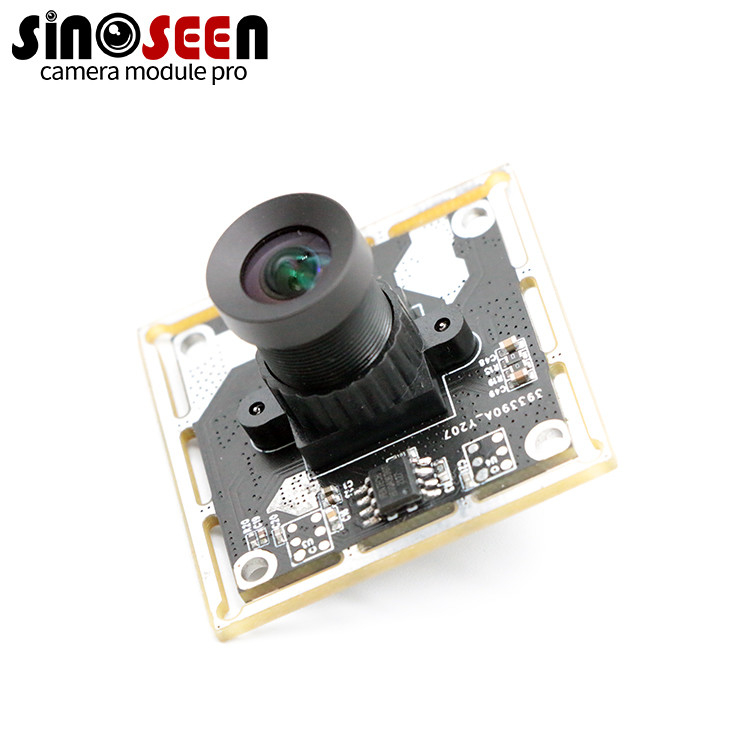

Sony IMX317 CMOS Sensor 8MP USB Camera Module 4K Fixed Focus

Sony IMX317 CMOS Sensor 8MP USB Camera Module 4K Fixed Focus

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-IMX317-FFS

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8MP Camera Module Sensor: 1/2.5'' SONY IMX317 CMOS
Resolution: 3864um (H) X 2196um (V) Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: 4K
High Light:

8MP USB Camera Module 4K


RoHS 8MP USB Camera Module


IMX317 CMOS Sensor 8MP Camera Module

Product Description

4K Fixed Focus 8MP USB Camera Module With Sony IMX317 COMS Sensor


Factory price 8MP USB Camera Module 4K Fixed Focus With Sony IMX317 COMS Sensor


This is an 8MP USB camera module 4K fixed focus camera module designed for applications that require high quality imaging at a competitive price. It offers 8-megapixel high-resolution image capture for sharp and detailed imaging, and can capture 4K resolution video at 30 frames per second.

The camera module uses the Sony IMX317 image sensor, which is known for its high sensitivity and low noise, making it ideal for low-light conditions. This feature is especially important for applications such as surveillance or surveillance, where the camera needs to be able to capture sharp images even in low-light environments.

The camera module has a USB interface and can be easily integrated into various systems. Its compact and lightweight design is suitable for use in small devices or embedded systems.

The camera module also has a fixed focus lens, which means it has a set focus and does not require manual adjustment. This feature makes it ideal for applications requiring a fixed distance, such as video conferencing or surveillance.

Sensor 1/2.5’’ SONY IMX317 CMOS
Pixel 8 Mega Pixel
Most effective pixels 3840(H) x 2160(V)
Pixel Size 1.62µm x 1.62µm
Image area 3864um (H) x 2196um (V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
Chroma Color, RGB
Clock Frequency 6 to 72 MHz
Microphones Built-in
Interface type Micro USB
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens Focal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Operating Voltage DC 5V
Operating Current 260mA
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension Customizable
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC


Sony IMX317 CMOS Sensor 8MP USB Camera Module 4K Fixed Focus 0

Sony IMX317 CMOS Sensor 8MP USB Camera Module 4K Fixed Focus 1


Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request



Camera Module Application Areas



Imaging and vision solutions                                           Integrated complex and customized technology
Machine vision                                                                 Intelligent Systems
Future Security                                                                 Optical technology solutions
Camera Module Customized solutions                            Internet of Things End-to-End Solution
Iris recognition technology                                              Iris Solutions
Face recognition                                                               VR High End Camera Solutions
Smart home solutions                                                      Intelligent hardware solutions
Professional camera Modules                                          Specially designed for small UAV
Airborne camera Modules                                                UAV solutions
UAV Special Modules                                                       Drone solutions
Aerial filming solutions                                                     Optical Technology solutions
Mobile Phone Camera module                                         Camera solutions
Optronics Solutions                                                          Imaging Technology Solutions
Video technology solutions                                              Optoelectonic research
Infrared Imagers for Industry                                            Embedded Systems solutions

Want to Know more details about this product
I am interested in Sony IMX317 CMOS Sensor 8MP USB Camera Module 4K Fixed Focus could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
