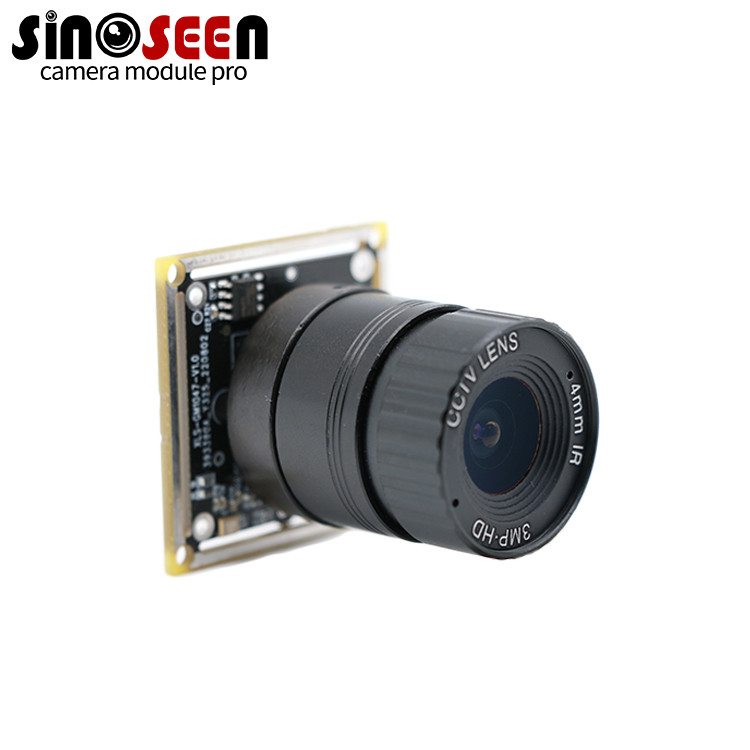

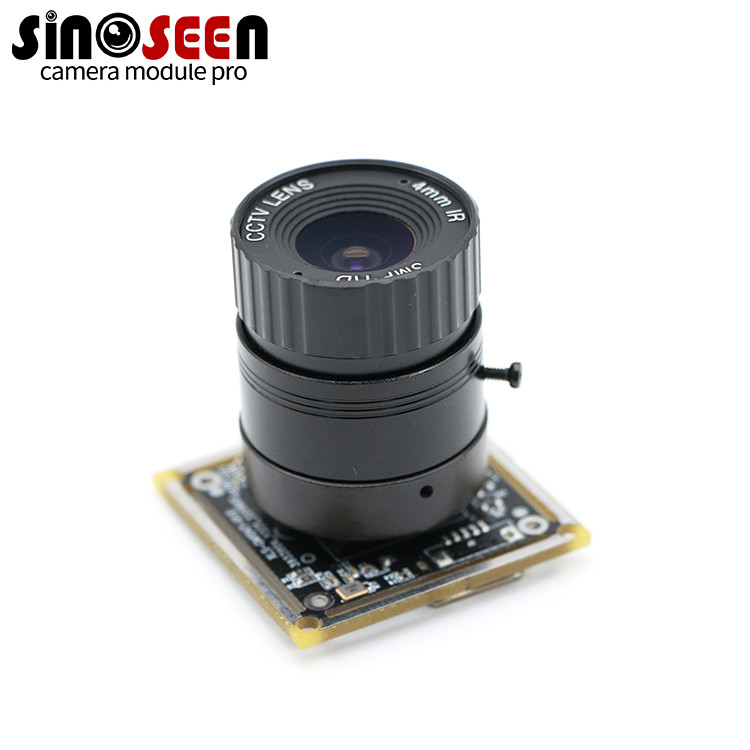

1080P 30FPS 2MP USB Camera Module With SONY IMX291 COMS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1047-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.8" SONY IMX291 |
|---|---|---|---|
| Resolution: | 2MP 1920(H) X 1080(V) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | FF |
| Interface: | USB2.0 | Feature: | 1080P |
| High Light: | IMX291 COMS Sensor Camera Module,1080P 30FPS 2MP Camera Module,Customized USB Camera Module |
||
Product Description
1080P 30FPS 2MP USB camera module with SONY IMX291 COMS sensor
2MP Camera Module
1. Product introduction
The sensor used in this product is an advanced digital large area array 1/2.8 CMOS image sensor in the field of surveillance cameras.
The maximum resolution of the Sensor can reach 30 frames, and it can present the best image effect processing under high resolution and high frame rate; it can also provide the best image performance in ordinary scenes, and can also improve the image quality in low-light scenes , can be widely used in live video and conference video all-in-one machines, monitoring, education booths, industrial inspections, various identification comparisons, ATM machines, access control gates and other image machine vision fields.
2. Product Features
*High-speed USB2.0 interface, up to 480M/S
*CMOS progressive scan image sensor, no compression, no interpolation
*Support static and dynamic image capture (JPG, BMP) and dynamic AVI image capture, MP4
*Hardware and underlying software support post-image enhancement functions such as exposure time, color difference, brightness, contrast, saturation, etc.
*The image is rich in color, lifelike, high-end quality,
*USB2.0 free drive plug and play, no external power supply required
*Support Windows XP2.0, Windows7, Windows8, Windows10; linux; Wince and other operating systems;
*Support standard C-mount lens and various customized lenses
Specification
|
Model No |
SNS-GM1047-V1.0 |
|
|
|
Image Sensor |
IMX291 |
|
|
|
Image Sensor Size |
1/2.8”CMOS |
|
|
|
Effective Pixels |
1920(H) x 1080(V) |
|
|
|
Pixel size |
3umx 3um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG / YUY2 |
|
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
|
IR-LED |
|
|
|
LED IR-850( |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M6.5 |
LENS |
|
|
Lens Construction |
5P+IR |
|
|
|
F/NO |
2.2 |
|
|
|
EFL |
3.5mm |
|
|
|
FOV |
D:80°±3° |
|
|
|
Micro shooting distance |
AF 10cm-infinity |
|
|
|
MIC |
support MIC |
|
|
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
