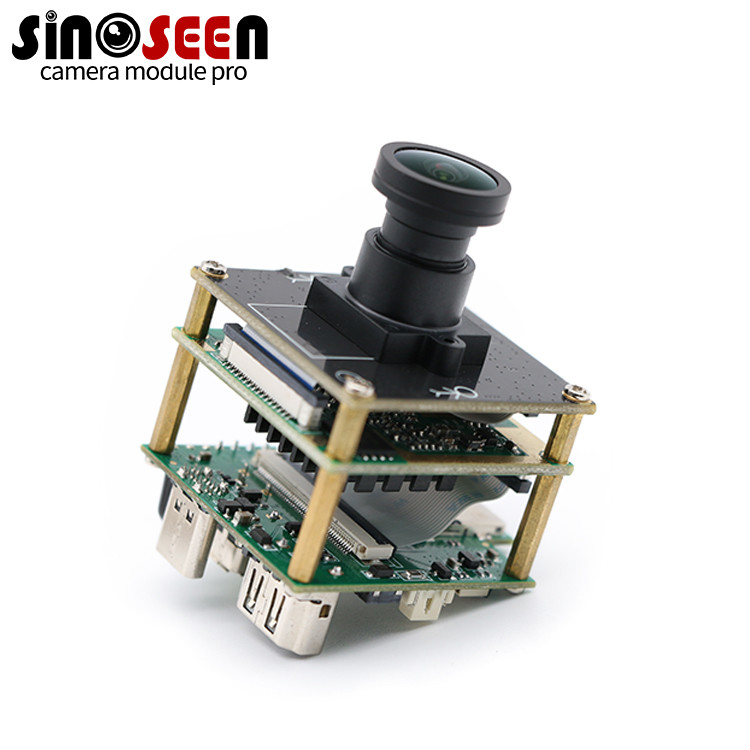

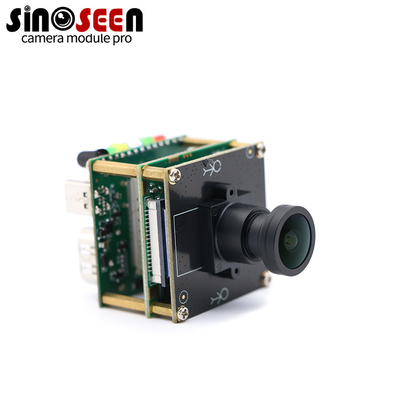

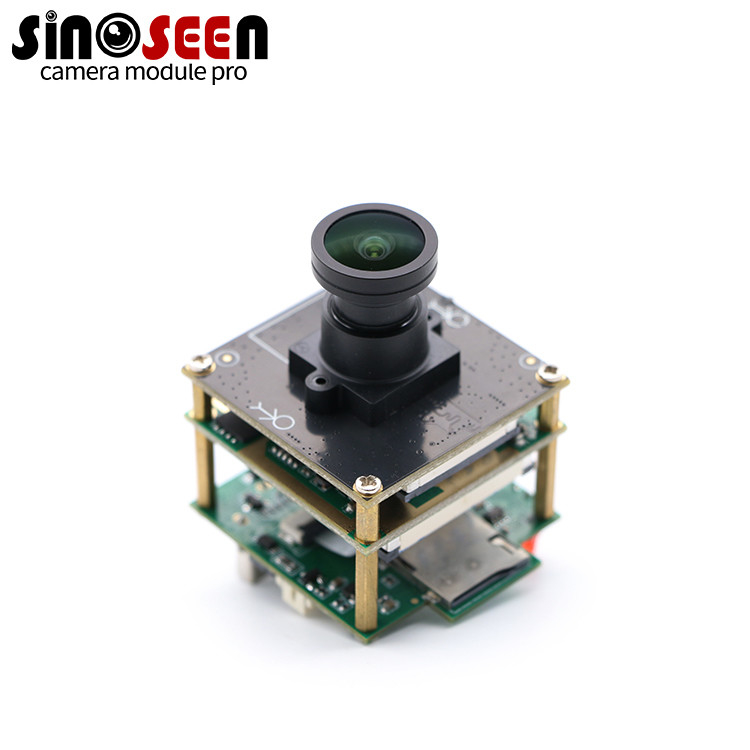

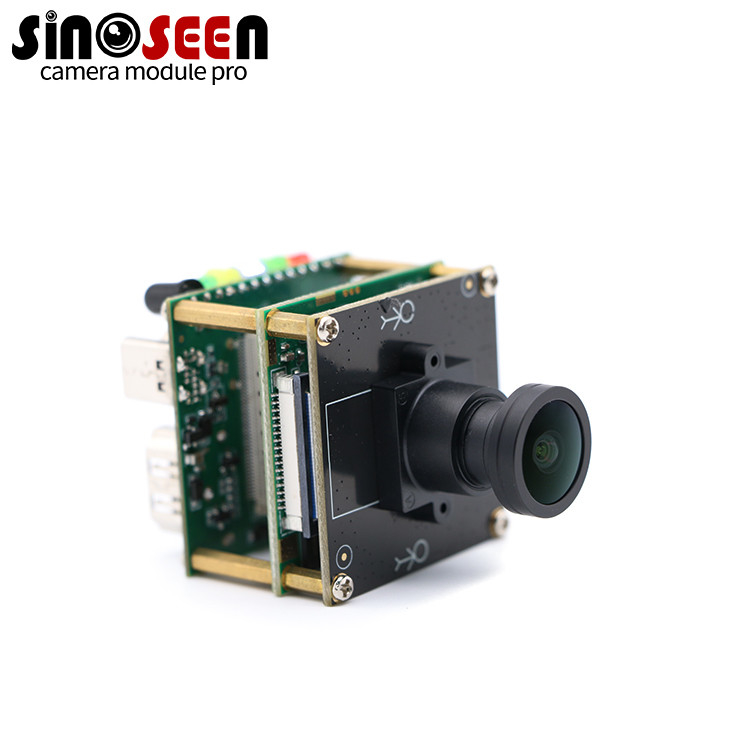

4K 8MP Fixed Focus HDMI Interface Camera Module With Sony IMX415 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | YLX-1645-CONN-V11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/2.8'' SONY IMX415 CMOS |
|---|---|---|---|
| Resolution: | 8MP 3864(H) X 2192(V) | Dimensions: | (customizable) |
| Pixel Size: | 1.45µm X 1.45µm | Focus Type: | Auto Focus /Manual Focus |
| Interface: | HDMI | Feature: | 4k |
| High Light: | Type-C Interface Camera Module,Manual Focus 8MP Camera Module,4K IMX415 Camera Module |
||
Product Description
4K 8MP fixed focus HDMI interface camera module with Sony IMX415 sensor
4K 8MP camera module
This fixed-focus camera module is a camera module specially designed for high-resolution imaging. It has a HDMI interface, which is a popular and widely used interface for data transmission and power transmission. The camera module uses the Sony IMX415 sensor, a high-quality image sensor known for its excellent low-light performance and high dynamic range. Capture detailed, clear images. The camera module's 4K resolution capability means it can capture images and video at a resolution of 3840 x 2160 pixels, delivering high-definition and detailed footage. This resolution is particularly useful in applications where fine details need to be captured, such as industrial inspection or video recording. Thanks to its HDMI interface, the camera module can be easily connected to devices that support it, such as smartphones, tablets or computers.
Specification
| Model No | YLX-1645-CONN-V11 |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45µm x 1.45µm |
| Image area | 3864(H) x 2192(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Auto focus/ Manual focus |
| Chroma | Color, RGB |
| Clock Frequency | 6 to 72 MHz |
| Microphones | Built-in |
| Interface type | HDMI |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | Focal length: 3.6mm |
| Lens construction: 5E+IR | |
| D FOV: 100 degree | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 260mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -40˚C to 85 ˚C |
| Operating temperature | -30˚C to 85 ˚C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
