• 8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface
  • 8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface
  • 8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface
  • 8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface
8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface

8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: UX-9381-XZC-V10

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 8mp Camera Module Sensor: 1/2.8'' SONY IMX415 CMOS
Resolution: 8MP 3864(H) X 2192(V) Dimensions: (customizable)
Pixel Size: 1.45µm X 1.45µm Focus Type: Auto Focus /Manual Focus
Interface: USB Type-C Feature: 4k
High Light:

4K Fixed Focus Camera Module

,

8MP Fixed Focus Camera Module

,

Sony IMX415 Sensor Camera Module

Product Description

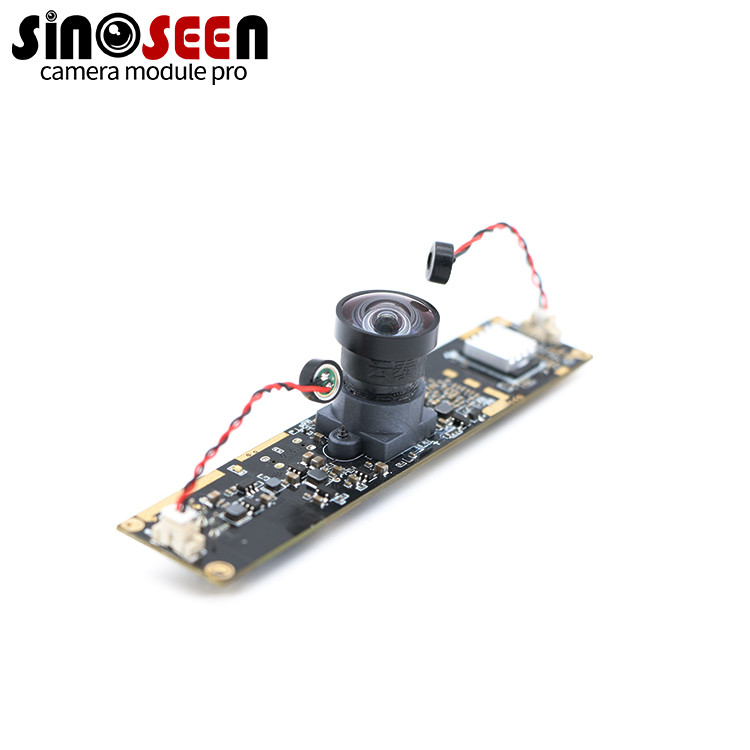

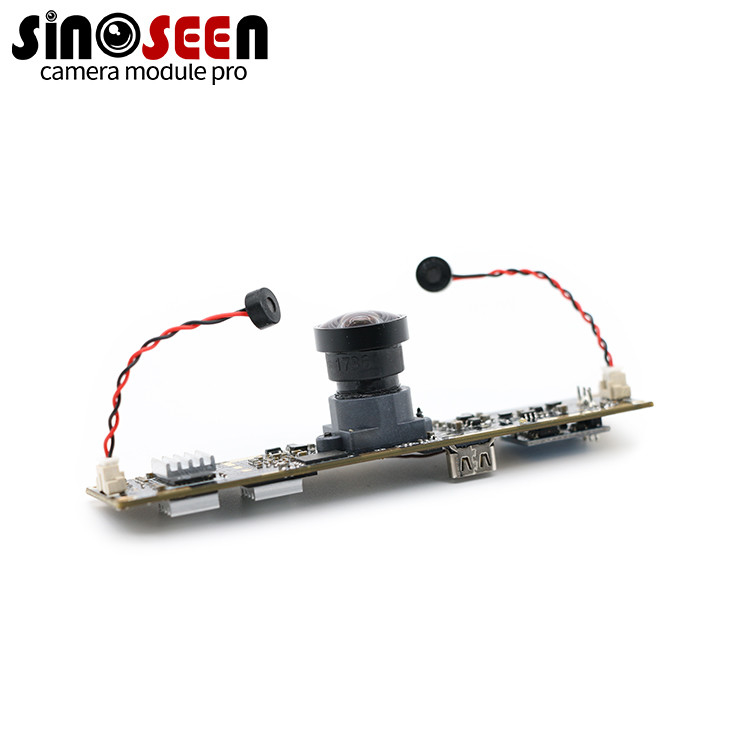

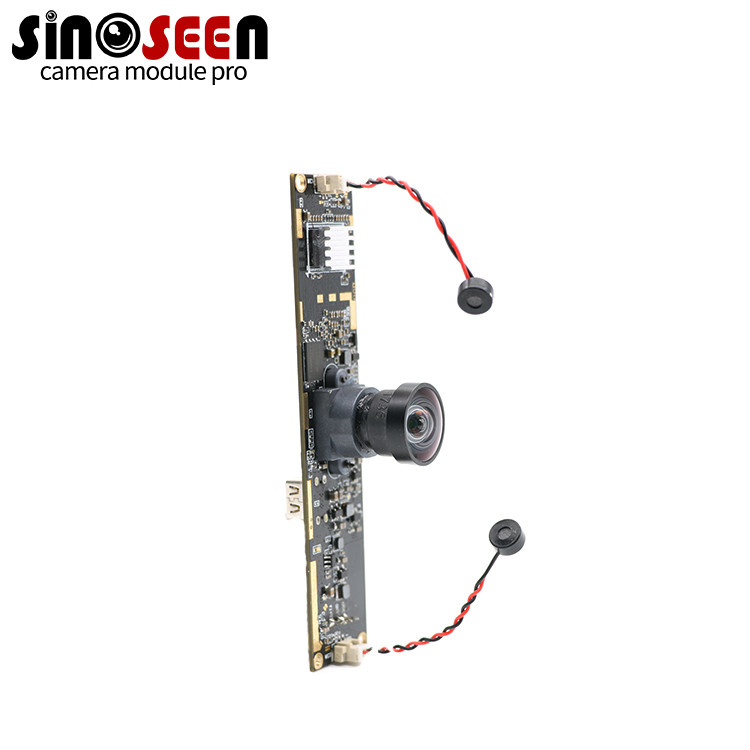

8MP 4K Fixed Focus Camera Module With IMX415 Sensor USB Type-C Interface



4K 8MP camera module

The 8MP 4K fixed-focus camera module with IMX415 sensor and USB Type-C interface is a compact camera system designed for high-resolution imaging applications. It uses the Sony IMX415 image sensor, which is known for its excellent image quality and low-light performance. The camera module supports 8MP resolution, and the corresponding shooting resolution is 3840 x 2160 pixels, commonly referred to as 4K resolution. This captures highly detailed images and videos with rich color and clarity. The USB Type-C interface provides a convenient and widely compatible connection for the camera module. It enables high-speed data transmission and power transmission, allowing the camera module to be easily connected to devices that support the USB Type-C interface, such as smartphones, tablets or computers.



Specification

Model No

UX-9381-XZC-V10

Sensor 1/2.8’’ SONY IMX415 CMOS
Pixel 8 Mega Pixel
Most effective pixels 3840(H) x 2160(V)
Pixel Size 1.45µm x 1.45µm
Image area 3864(H) x 2192(V)
Compression format MJPEG / YUV2 (YUYV)
Resolution & Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Auto focus/ Manual focus
Chroma Color, RGB
Clock Frequency 6 to 72 MHz
Microphones Built-in
Interface type USB type-c
Adjustable parameter Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens Focal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequency Optional
Power supply USB BUS POWER
Operating Voltage DC 5V
Operating Current 260mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Dimension Customizable
Storage temperature -40˚C to 85 ˚C
Operating temperature -30˚C to 85 ˚C
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface 0



8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface 1

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Camera Module Application Areas





Imaging and vision solutions                                           Integrated complex and customized technology
Machine vision                                                                 Intelligent Systems
Future Security                                                                 Optical technology solutions
Camera Module Customized solutions                            Internet of Things End-to-End Solution
Iris recognition technology                                              Iris Solutions
Face recognition                                                               VR High End Camera Solutions
Smart home solutions                                                      Intelligent hardware solutions
Professional camera Modules                                          Specially designed for small UAV
Airborne camera Modules                                                UAV solutions
UAV Special Modules                                                       Drone solutions
Aerial filming solutions                                                     Optical Technology solutions
Mobile Phone Camera module                                         Camera solutions
Optronics Solutions                                                          Imaging Technology Solutions
Video technology solutions                                              Optoelectonic research
Infrared Imagers for Industry                                            Embedded Systems solutions
