4K 8MP Camera Module IMX415 Sensor 3840*2160 Output 30 Frames Type-C Interface
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1104-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/2.8'' SONY IMX415 CMOS |
|---|---|---|---|
| Resolution: | 8MP 3864(H) X 2192(V) | Dimensions: | (customizable) |
| Pixel Size: | 1.45µm X 1.45µm | Focus Type: | FF |
| Interface: | Type-C | Feature: | 4k |
| High Light: | IMX415 Sensor 8MP Camera Module,4K 8MP Camera Module,Type-C IMX415 camera module |
||
Product Description

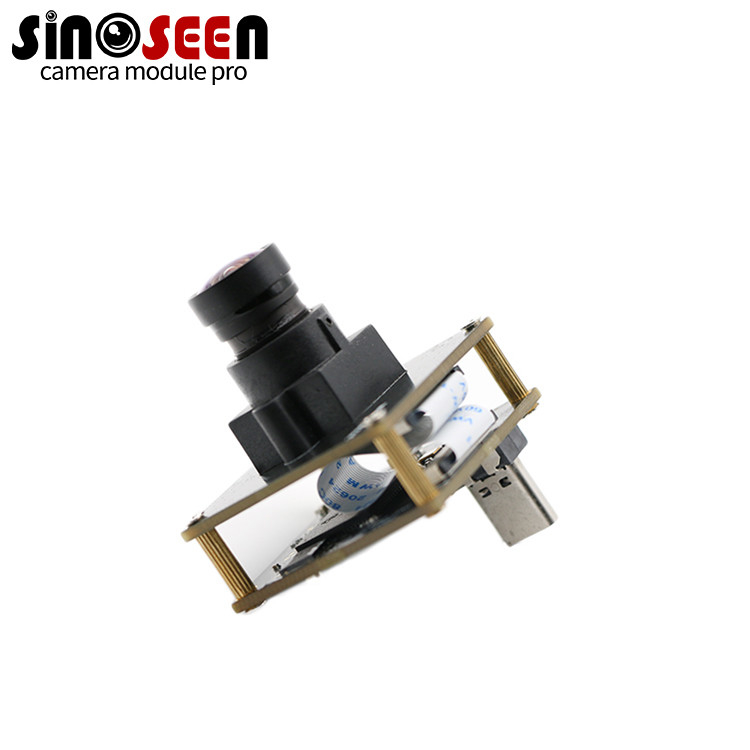

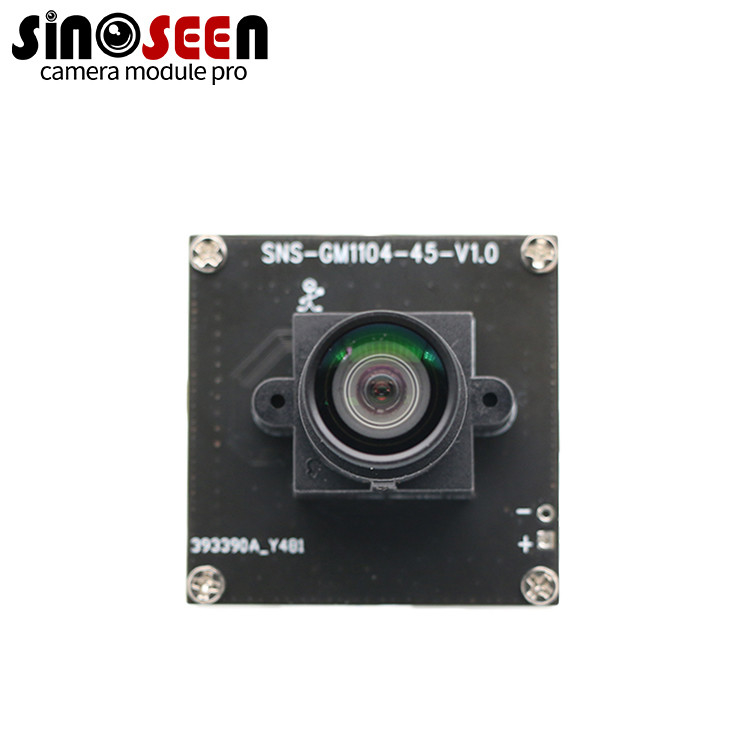

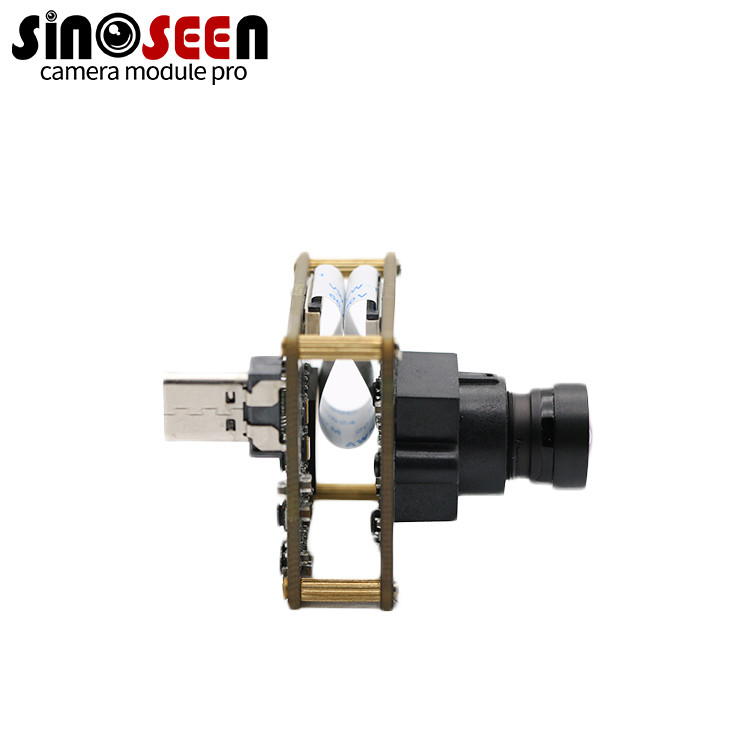

4K 8mp IMX415 sensor 3840*2160 output 30 frames Type-C interface camera module
4K 8MP camera module
This one comes with an IMX415 sensor capable of capturing images with a resolution of 8 megapixels (3840x2160 pixels). It delivers high-quality image output with good color reproduction, clarity and low noise levels. Can capture 4K UHD (Ultra High Definition) images and videos. This resolution provides exceptional detail and clarity, making it suitable for applications requiring high-resolution imaging. The camera module supports a frame rate of 30 frames/second, enabling smooth video shooting at 4K resolution. This frame rate is often ideal for applications that involve capturing fast-moving objects or require real-time video streaming.
The camera module uses a Type-C interface, which is a universal and widely used interface for data transmission and power supply. The Type-C interface provides high-speed data transfer capabilities for efficient image and video streaming.
Considering its 4K resolution, high-quality IMX415 sensor and Type-C interface, this camera module can be used in a variety of applications. Some potential use cases include surveillance systems, video conferencing, industrial inspection, robotics, and other applications requiring high-resolution imaging and live video streaming.
Specification
| Model No | SNS-GM1104-V1.0 |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45µm x 1.45µm |
| Image area | 3864(H) x 2192(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Auto focus/ Manual focus |
| Chroma | Color, RGB |
| Clock Frequency | 6 to 72 MHz |
| Microphones | Built-in |
| Interface type | type-c |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | Focal length: 3.6mm |
| Lens construction: 5E+IR | |
| D FOV: 100 degree | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Operating Voltage | DC 5V |
| Operating Current | 260mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -40˚C to 85 ˚C |
| Operating temperature | -30˚C to 85 ˚C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
