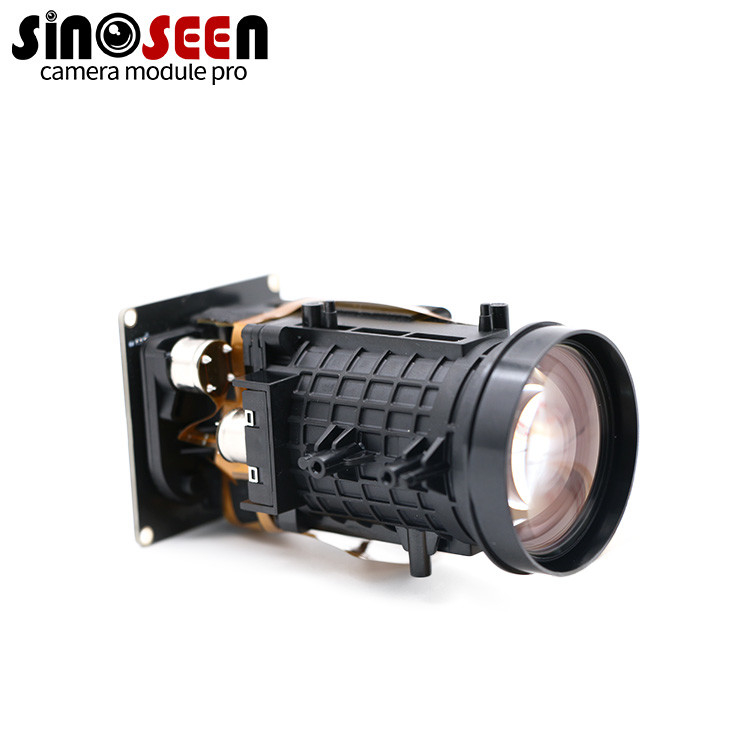

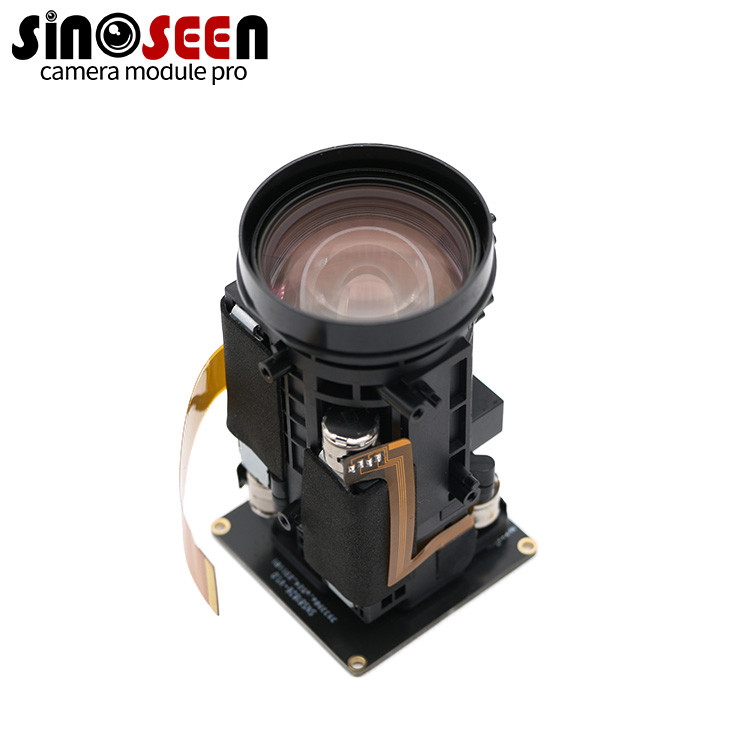

20X Optical Zoom IMX415 Sensor 8MP Camera Module 60 Frames MIPI Interface
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS81826-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/2.8'' SONY IMX415 CMOS |
|---|---|---|---|
| Resolution: | 8MP 3864(H) X 2192(V) | Dimensions: | (customizable) |
| Pixel Size: | 1.45µm X 1.45µm | Focus Type: | FF |
| Interface: | MIPI | Feature: | 4k |
| High Light: | 20X 8MP Camera Module,IMX415 Sensor 8MP Camera Module,MIPI Interface IMX415 Camera Module |
||
Product Description
20X Optical Zoom IMX415 Sensor 8MP 60 Frames MIPI Interface Camera Module
4K 8MP camera module
The camera module is equipped with a zoom lens that provides 20x optical zoom. Optical zoom allows you to enlarge an image without losing image quality because it adjusts the focal length of the lens to bring distant objects closer. This feature is particularly useful for applications that require capturing details from a distance, such as surveillance or wildlife photography. The module uses IMX415 image sensor. It has a resolution of 8 megapixels (8MP), which delivers excellent image detail and clarity. The camera module supports 60 frames/second video recording. Higher frame rates enable smoother video playback, reduce motion blur and provide real-time video capture. This is beneficial for applications involving fast-moving subjects or where smooth video output is required. The camera module communicates with the host device using the MIPI (Mobile Industrial Processor Interface) interface. The MIPI interface provides high data transfer rates and power efficiency, ensuring fast and reliable transfer of image data from the camera module to the host device.
Specification
| Model No | SNS81826-V1.0 |
| Sensor | 1/2.8’’ SONY IMX415 CMOS |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45µm x 1.45µm |
| Image area | 3864(H) x 2192(V) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Auto focus/ Manual focus |
| Chroma | Color, RGB |
| Clock Frequency | 6 to 72 MHz |
| Microphones | Built-in |
| Interface type | MIPI |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | Focal length: 3.6mm |
| Lens construction: 5E+IR | |
| D FOV: 100 degree | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Operating Voltage | DC 5V |
| Operating Current | 260mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -40˚C to 85 ˚C |
| Operating temperature | -30˚C to 85 ˚C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
