Autofocus Compact Camera Module 8MP OV8825 Sensor MIPI Interface
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHs |
| Model Number: | SNS81801-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | OV8825 |
|---|---|---|---|
| Resolution: | 8MP (3264*2448) | Dimensions: | Customizable |
| Lens FOV: | (optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Low Power Consumption |
| High Light: | Autofocus Compact Camera Module,OV8825 Sensor Compact Camera Module,MIPI Interface 8MP Camera Module |
||
Product Description

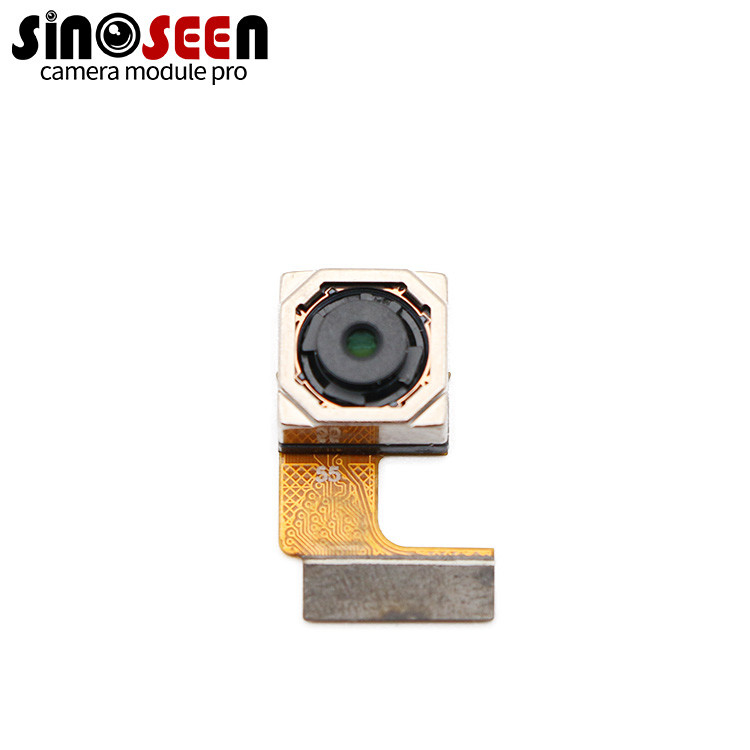

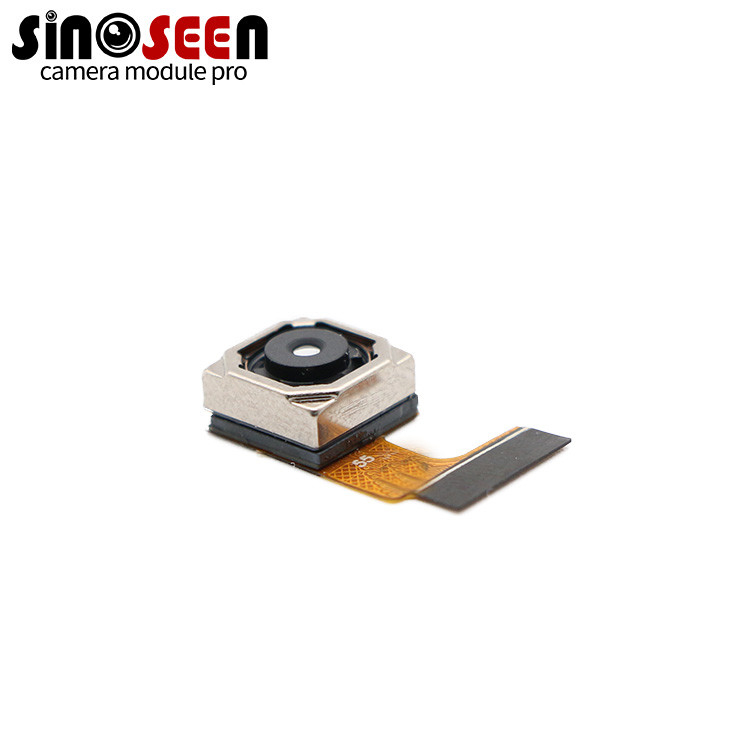

8MP OV8825 Sensor MIPI Interface Autofocus Compact Camera Module
8MP Camera Module
The camera module is powered by the OV8825 image sensor, which is an 8-megapixel (8MP) CMOS sensor. The OV8825 sensor captures images with detailed resolution and good image quality. The camera module is equipped with an autofocus mechanism. Autofocus allows the camera module to automatically adjust focus based on the subject's distance, ensuring clear and sharp images. This feature is particularly useful in situations where the distance between the camera and the subject may vary. The camera module is compact and suitable for applications where space is limited. Its small size allows it to be easily integrated into devices with size constraints, such as smartphones, tablets or other portable devices.
Specification
|
Model No |
SNS81801-V1.0 |
|
Sensor |
OV8825 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264 (H) x 2448 (V) |
|
Pixel Size |
1.4um*1.4um |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
auto focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
TBDmV/Lux-sec |
|
Lens FOV |
Default 76° (Optional) |
|
Dimension |
Customizable |
|
Storage temperature |
-30°C to 85°C |
|
Operating temperature |
0°C to 60°C |
