Compact 8MP Camera Module With Autofocus And OV8825 Sensor For Customizable
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHs |
| Model Number: | SNS81801-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | OV8825 |
|---|---|---|---|
| Resolution: | 8MP (3264*2448) | Dimensions: | Customizable |
| Lens FOV: | (optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | Low Power Consumption |
| High Light: | Compact 8MP Camera Module,8MP Camera Module With Autofocus,OV8825 Sensor MIPI camera module |
||
Product Description

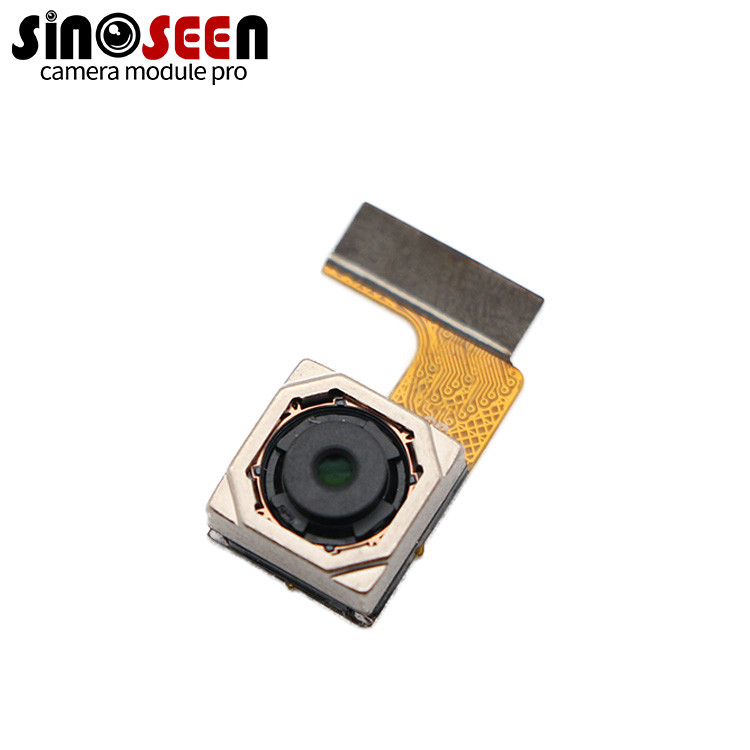

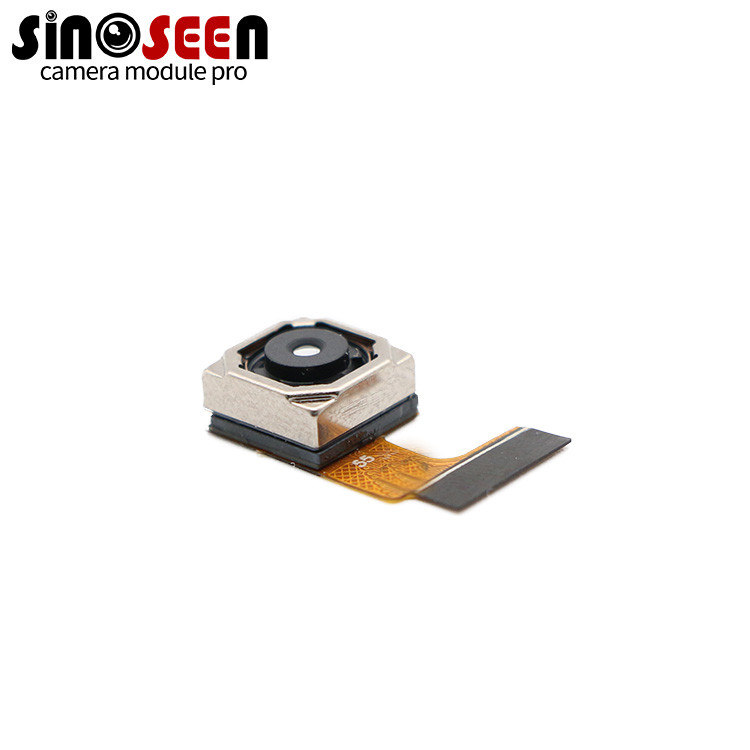

8MP OV8825 Sensor MIPI Interface Autofocus Compact Camera Module
8MP Camera Module
The module uses an OV8825 sensor with a resolution of 8 megapixels (8MP). It is known for its high-quality image capturing capabilities. The camera module integrates this sensor and features an autofocus feature that automatically adjusts focus to capture sharp and clear images. The compact form factor of the camera module makes it suitable for integration into a variety of devices and systems where space is limited. It can be easily integrated into smartphones, tablets, laptops, drones, security cameras, and other devices that require high-resolution imaging in a small package. The autofocus function ensures that the camera module can accurately focus on objects at different distances, providing flexibility for a variety of applications. This is particularly useful in scenes where subjects may be at different distances or when capturing images or video in real time.
Additionally, the design of the camera module allows for customization, allowing integration into specific hardware configurations or systems. This makes it ideal for applications requiring custom imaging solutions.
Specification
|
Model No |
SNS81801-V1.0 |
|
Sensor |
OV8825 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264 (H) x 2448 (V) |
|
Pixel Size |
1.4um*1.4um |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
auto focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
TBDmV/Lux-sec |
|
Lens FOV |
Default 76° (Optional) |
|
Dimension |
Customizable |
|
Storage temperature |
-30°C to 85°C |
|
Operating temperature |
0°C to 60°C |
