4K HD 8MP OEM Camera Modules 38x38mm With SONY IMX317 Sensor

4K HD 8MP OEM Camera Modules 38x38mm With SONY IMX317 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-8MP-IMX317-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/2.5"SONY IMX317
Resolution: 8MP (3840*2160) Dimensions: 38mmx38mm,(customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: 4K
High Light:

8MP OEM Camera Modules

,

IMX317 OEM Camera Modules

,

IMX317 4k camera module

Product Description

4K HD 8MP OEM Camera Modules 38x38mm With SONY IMX317 Sensor

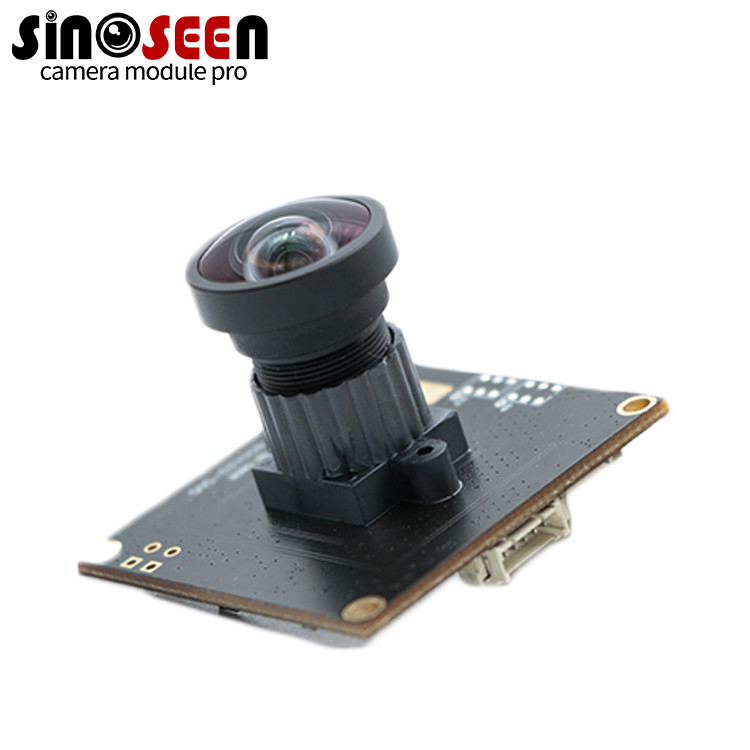

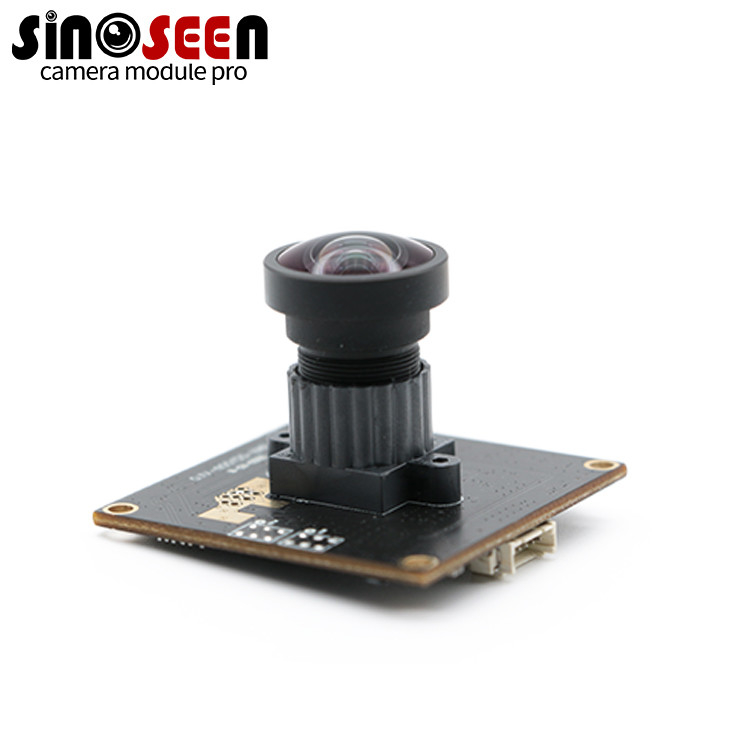

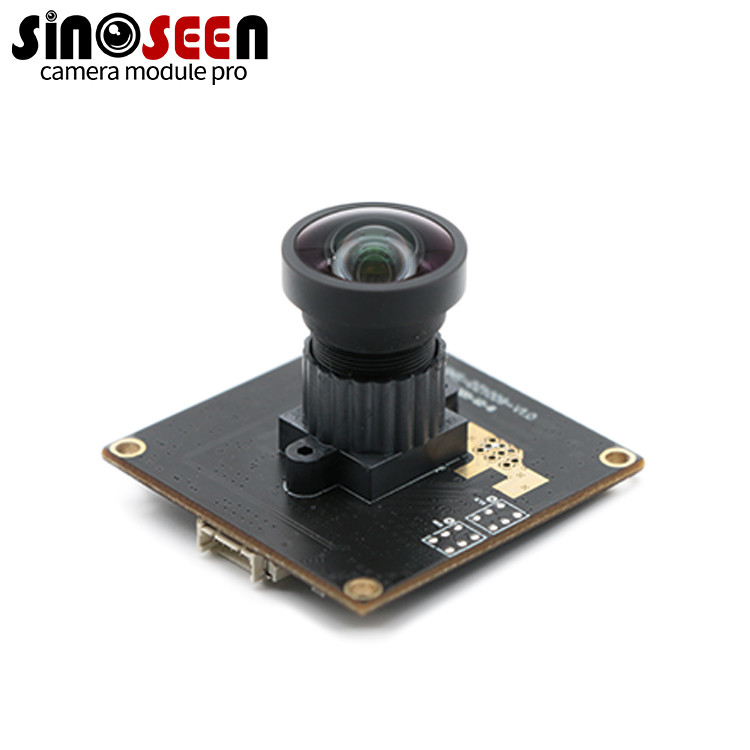

4K HD 8MP USB Camera Module with SONY IMX317 sensor



This is one of our 4K camera module, it is 8MP (3840x2160) resolution with SONY IMX317 CMOS sensor, image quality is quite excellent and stable. The biggest advantage of this camera module is that it supports 30FPS high frame rate at full resolution 8MP (3840x2160), while most of other 8MP sensor can only support 15FPS frame rate at 8MP!

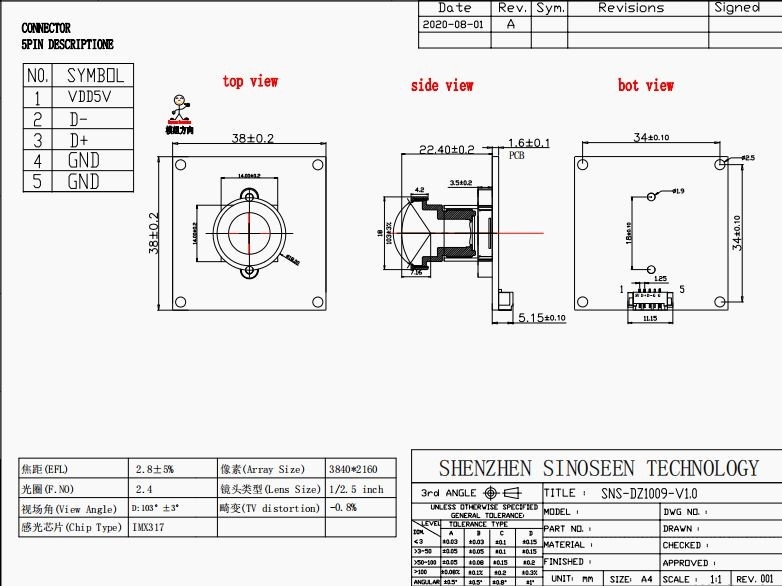

This camera module is standard 38MMx38MM (compatible with 32MMx32MM) and customizable, after your testing, we can change module size and shape according to your requirement. What's more, we have a wide range of different FOV lenses available from 20° to 200°.


Specification

Model No
SNS-8MP-IMX317-V1.0
Sensor
1/2.5’’ SONY IMX317 CMOS
Pixel
8 Mega Pixel
Most effective pixels
3840(H) x 2160(V)
Pixel Size
1.62µm x 1.62µm
Image area
3864um (H) x 2196um (V)
Compression format
MJPEG / YUV2 (YUYV)
Resolution & Frame rate
See above
Shutter Type
Electronic rolling shutter
Focus type
Fixed focus
Chroma
Color, RGB
Clock Frequency
6 to 72 MHz
Microphones
Built-in
Interface type
USB2.0
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure


Lens
Focal length: 3.6mm
Lens construction: 5E+IR
H FOV: 90 degree
Thread Size: M12*P0.5
Audio frequency
Optional
Power supply
USB BUS POWER
Operating Voltage
DC 5V
Operating Current
260mA
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control  (AEC)
Support
Auto White Balance (AEB)
Support
Auto Gain Control (AGC)
Support
Dimension
38MMx38MM (32MMx32MM)
Storage temperature
-20°C to 70°C
Operating temperature
0°C to 60°C
USB cable length
Default


Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC



4K HD 8MP OEM Camera Modules 38x38mm With SONY IMX317 Sensor 04K HD 8MP OEM Camera Modules 38x38mm With SONY IMX317 Sensor 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Camera Module Application Areas





Imaging and vision solutions                                           Integrated complex and customized technology
Machine vision                                                                 Intelligent Systems
Future Security                                                                 Optical technology solutions
Camera Module Customized solutions                            Internet of Things End-to-End Solution
Iris recognition technology                                              Iris Solutions
Face recognition                                                               VR High End Camera Solutions
Smart home solutions                                                      Intelligent hardware solutions
Professional camera Modules                                          Specially designed for small UAV
Airborne camera Modules                                                UAV solutions
UAV Special Modules                                                       Drone solutions
Aerial filming solutions                                                     Optical Technology solutions
Mobile Phone Camera module                                         Camera solutions
Optronics Solutions                                                          Imaging Technology Solutions
Video technology solutions                                              Optoelectonic research
Infrared Imagers for Industry                                            Embedded Systems solutions

Want to Know more details about this product
I am interested in 4K HD 8MP OEM Camera Modules 38x38mm With SONY IMX317 Sensor could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
