ODM HD Stereo Micro 2MP Camera Module With BRIGATES BG0806 Sensor

ODM HD Stereo Micro 2MP Camera Module With BRIGATES BG0806 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-BG0806-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/2.7" BRIGATES BG0806 CMOS
Resolution: 2MP (1920*1080) Dimensions: Customizable
Lens FOV: 80°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Low Cost
High Light:

BG0806 2MP Camera Module

,

ODM HD 2MP Camera Module

,

BG0806 stereo camera module

Product Description

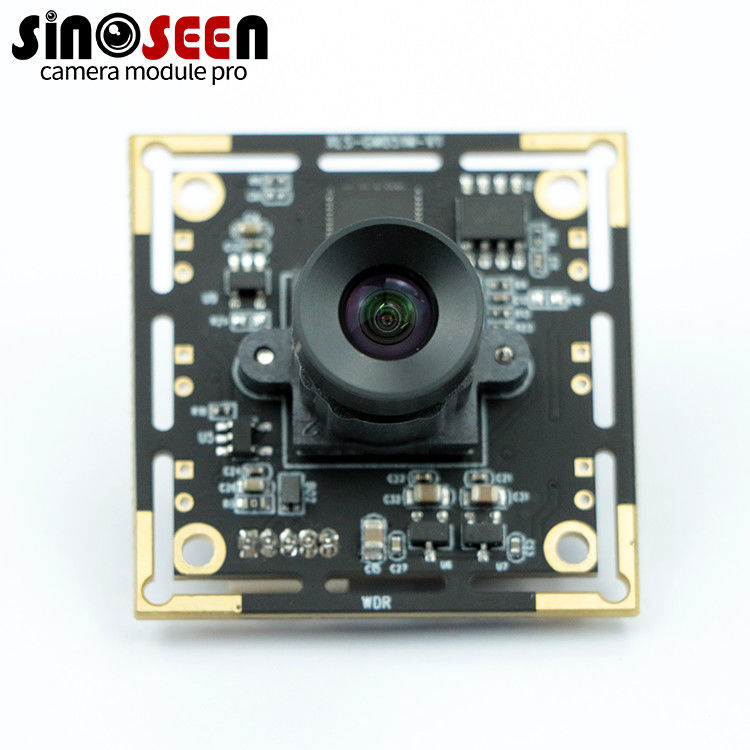

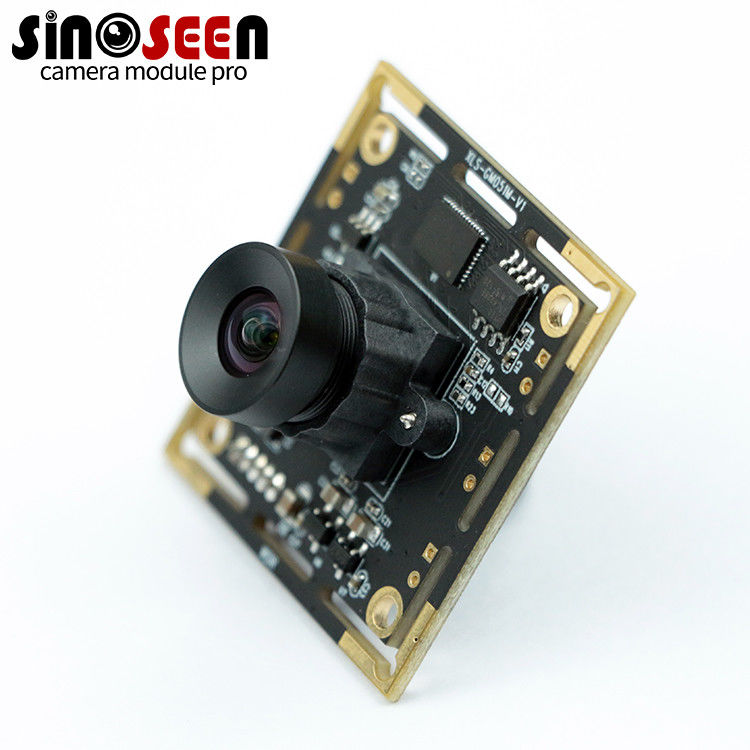

ODM HD Stereo Micro 2MP Camera Module With BRIGATES BG0806 Sensor

Sinoseen Factory Price 2MP Micro HD Stereo USB Camera Module With BG0806 Sensor



2MP Camera Module

If you are looking for a low-cost full HD camera module to make your products more competitive to win the market and customers, this is your best choice!
This is one of our best selling USB2.0 camera modules, it has 2MP resolution (1920x1080) and BG0806 CMOS sensor, and the frame rate is up to 30FPS. It is popular because it is one of the lowest-priced 2MP camera modules on the market while still maintaining a stable quality.





Specification

Model No

SNS-2MP-BG0806-V1.0

Sensor

1/2.7’’ BRIGATES BG0806 CMOS

Pixel

2 Mega Pixel

Most effective pixels

1928(H) x 1088(V)

Pixel Size

3.0µm x 3.0µm

Image area

5784um(H) x 3264um (V)

Compression format

MJPEG / YUV2 (YUYV)

Resolution

1920x1080; 1280x720; 640x480

Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

39dB

Dynamic range

64.6dB

Chroma

RGB

Interface type

USB2.0

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 3.6mm

Lens Construction: 6E+IR

FOV: 80°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

Max 300mA

Voltage

DC 5V

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38MM x 38MM (32MMx32MM)

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

ODM HD Stereo Micro 2MP Camera Module With BRIGATES BG0806 Sensor 0ODM HD Stereo Micro 2MP Camera Module With BRIGATES BG0806 Sensor 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
