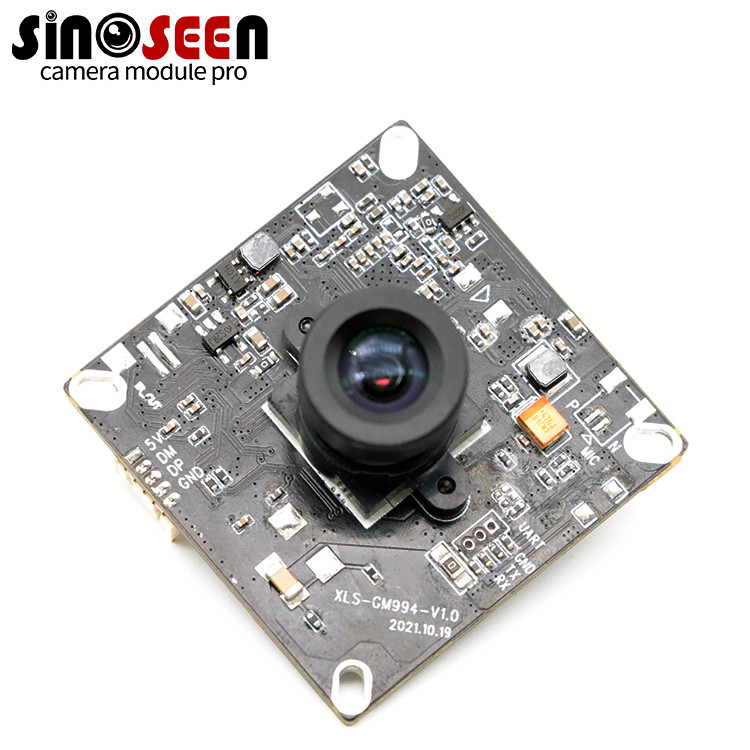

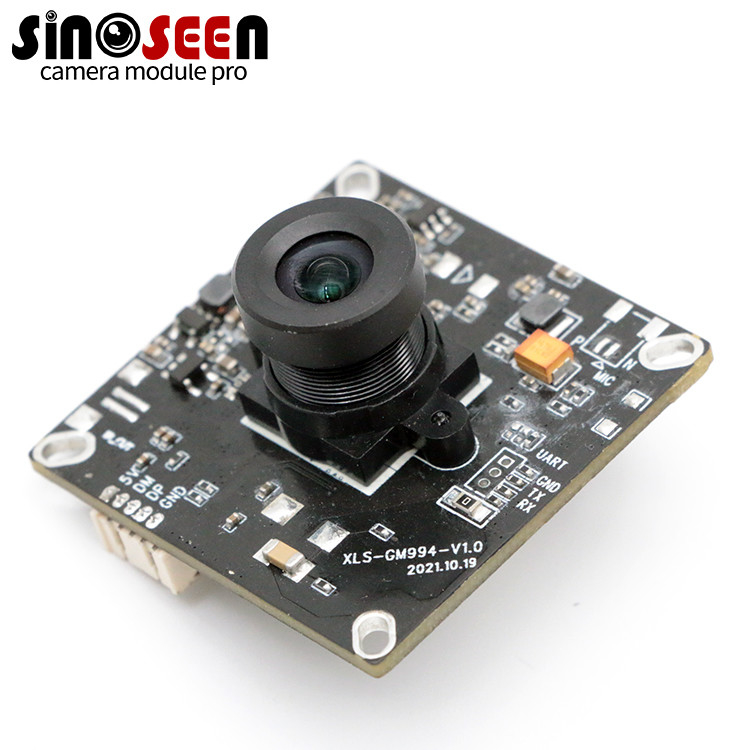

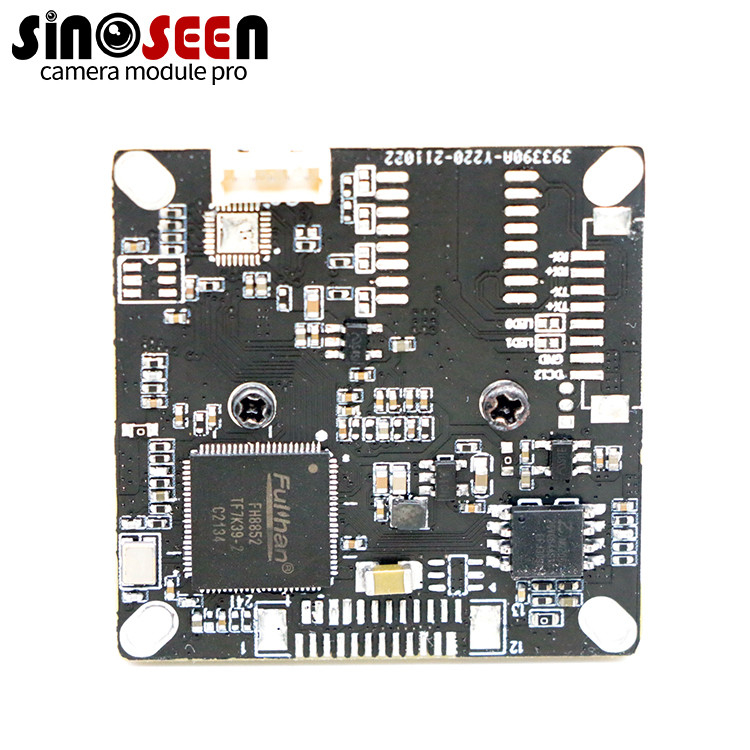

WiFi 38x38mm 1080P 30FPS 2MP USB Camera Module With GC2053 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-GC2053-iop |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.9'' GC2053 |
|---|---|---|---|
| Resolution: | 1920*1080 | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Wifi |
| High Light: | 38x38mm 2MP USB Camera Module,USB Camera Module With GC2053 Sensor,WiFi 2MP Camera Module |
||
Product Description
38*38mm 30fps 2mp usb camera module 1080P with WiFi with GC2053 sensor
Fixed Focus 1080P With WiFi 38*38mm 30fps 2mp Usb Camera Module With GC2053 Sensor
Features:
Size: 1/2.9
Maximum resolution: 1920*1080
Features:
1. Features of high performance and low power consumption
2. It can run at 30FPS per second
3. With WiFi, with TF card Applications: Face recognition, security cameras, automobiles, mobile phones,
cameras, digital video cameras, digital cameras and camcorders, video phones and conference equipment, etc.
| Parameter | Typical value |
| Optical Format | 1/2.9inch |
| Active pixel array | 1920*1080 |
| Pixel Size | 2.8um*2.8um |
| Shutter type | Electonic rolling shutter |
| ADC resolution | 10 bit ADC |
| Max Frame rate | 30fps@full size |
| Power Supply | AVDD28:2.8V |
| DVDD:1.2V | |
| IOVDD:1.8V | |
| Power Consumption | TBD |
| SNR | TBD |
| Dark Current | TBD |
| Sensitivity | TBD |
| Dynamic range | TBD |
| Operating temperature: | -20°C to 80°C |
| Stable Image temperature | 0°C to 60°C |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP |
| Input clock frequency | 6-27MHz |
