2MP USB Camera Module Full HD Night Vision 1080P 30FPS With HM2131 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-HI2131-SOR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.7'' Himax HM2131 CMOS |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | FULL HD |
| Highlight: | 2MP USB 2.0 Camera Module,HM2131 Sensor USB 2.0 Camera Module,30FPS Full HD Camera Module |
||
Product Description

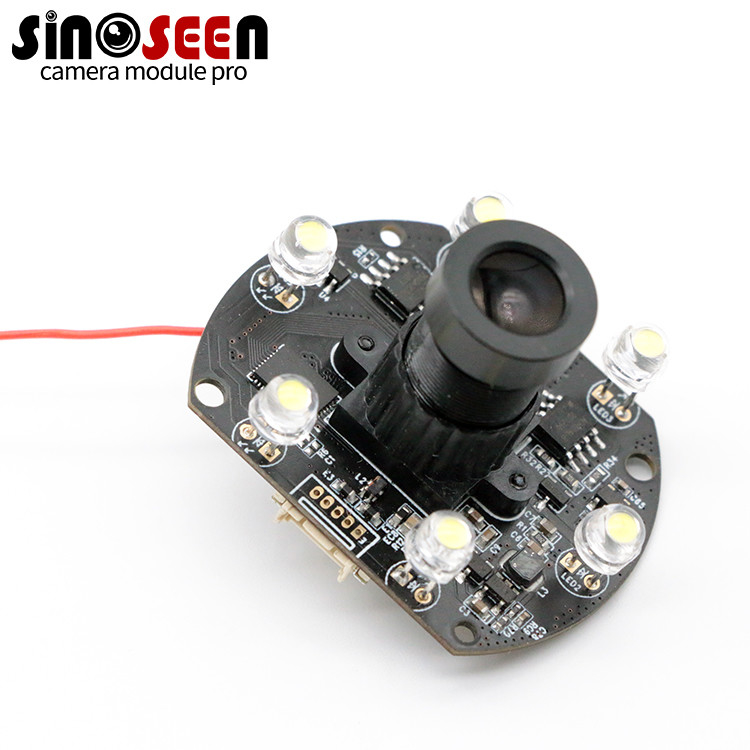

1080P USB Camera module 2MP Night Vision FULL HD with HM2131 sensor
2MP FULL HD 1080P USB Camera module 30FPS with HM2131 sensor
Features:
1.Maximum resolution: 1920*1080
2. Full HD, able to output very clear picture quality
3. Six LED lights are installed around, which can also perform well in low-light environments
4. Touch, you can switch the position of the light
Applications: security monitoring, notebook computers, all-in-one machines, toys, high-speed cameras, QR code recognition, face recognition, etc.
Specification:2MP Night Vision FULL HD USB Camera module
|
Model No |
SNS-2MP-HI2131-SOR |
|
Sensor |
1/2.7’’ Himax HM2131 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Protocol & Connection |
Plug-&-Play (UVC compliant) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Output Format |
10b / 12b RAW |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38.9dB |
|
CRA |
12° |
|
Sensitivity |
4600mV / Lux – sec |
|
Interface type |
USB2.0 |
|
Lens FOV |
90° |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Microphone |
2 |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
