IMX307 2MP USB 3.0 Camera Module 1080P 30FPS For Face Recognition
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM307-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.8" SONY IMX307 |
|---|---|---|---|
| Resolution: | 1945 (H) X 1097 (V) | Dimensions: | Customizable |
| Pixel Size: | 2.9 µm (H) × 2.9 µm (V) | Focus Type: | Fixed Focus |
| Interface: | USB3.0 | Feature: | HD |
| High Light: | IMX307 USB 3.0 Camera Module,30FPS USB 3.0 Camera Module,USB 3.0 2MP Camera Module |
||
Product Description
USB3.0 IMX307 2MP 1080P 60FPS MJPEG/YUV 30FPS for face recognition

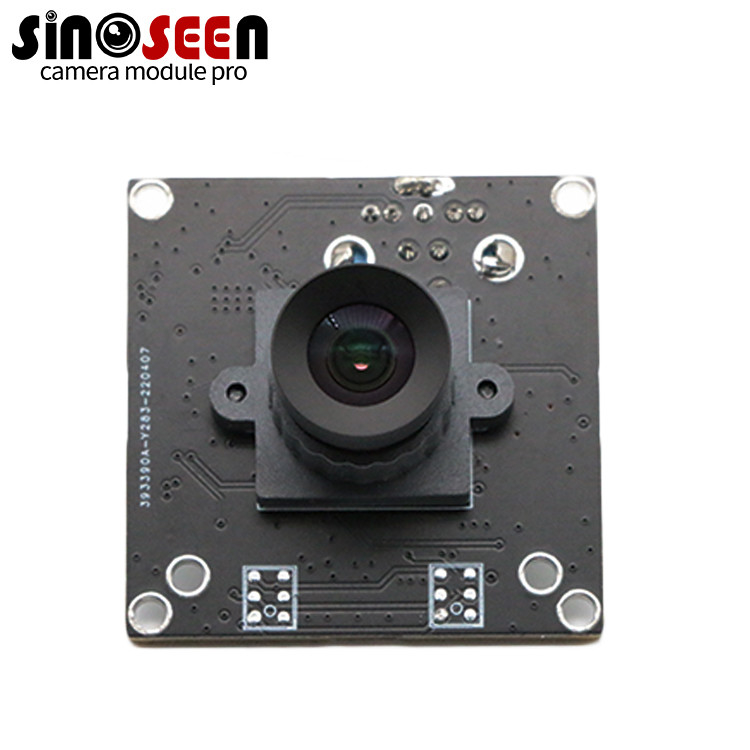

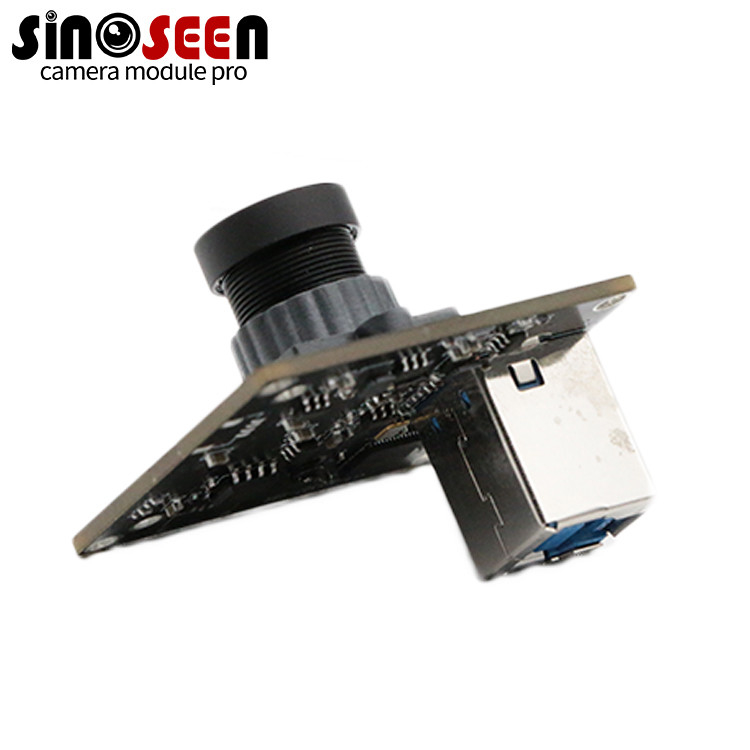

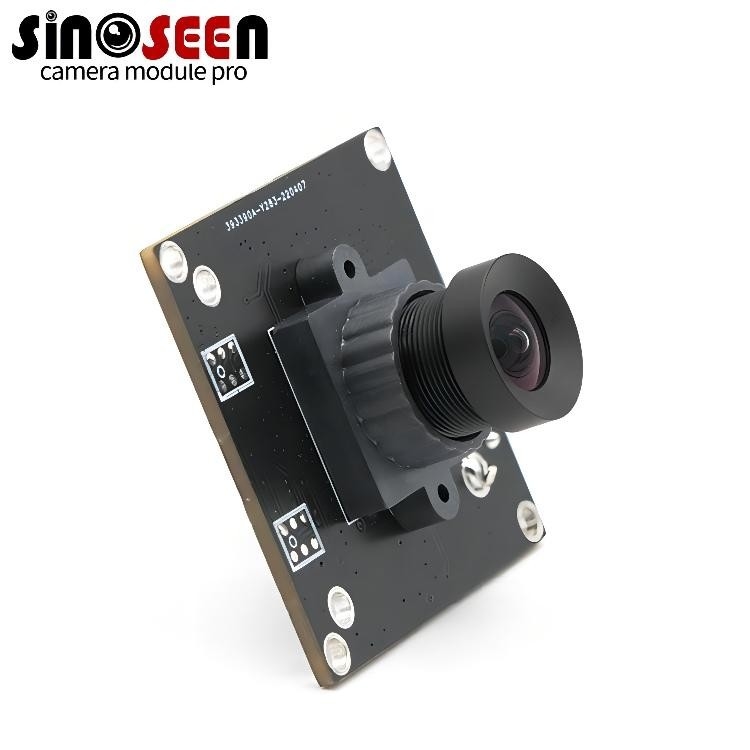

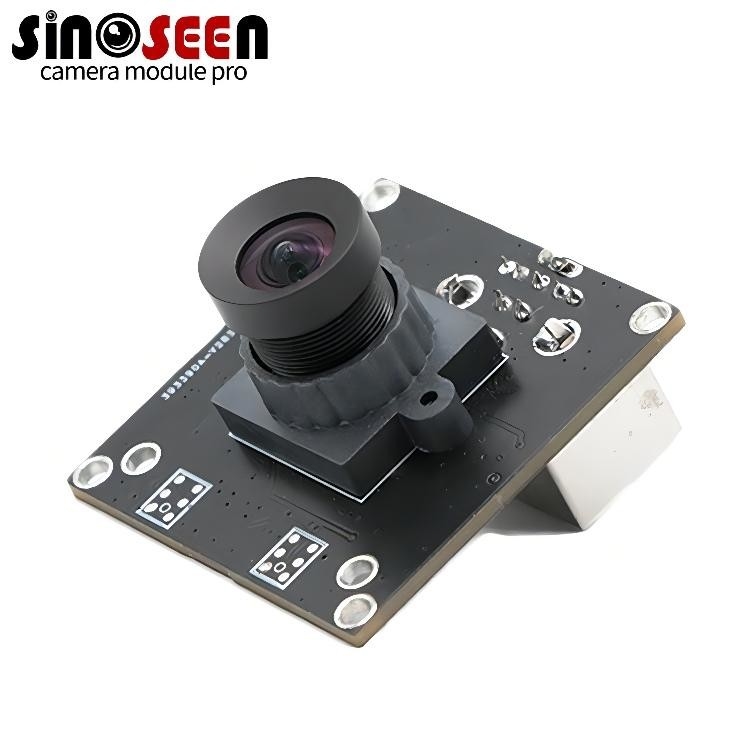

IMX307 2MP USB3.0 Camera Module
This is our new camera module development, it is 2MP resolution (1920x1080) with SONY Starvis IMX307 CMOS sensor, image quality is very stable and top. It has excellent low illumination performance, and you can see things clear under weak light or even no light.
Unlike most other camera modules which support only 2 compression format, this one supports 3 compression formats: MJPEG,YUY2 and H.264.
Specification
|
Model No |
SNS-GM307-V1.0 |
|
Sensor |
1/2.8’’ SONY IMX307 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.9µm x 2.9µm |
|
Image area |
1937(H) x 1097(V) |
|
Compression format |
MJPEG / YUV2/H.264 |
|
Resolution & Frame rate |
1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus/Manually adjustable |
|
Sensitivity |
7757 mV / lux-sec |
|
Interface type |
USB2.0 and SPI |
|
Adjustable parameter |
Brightness |
|
Lens |
Optical length: 18.6mm |
|
|
F/NO: 2.4 |
|
|
FOV: D=130° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 260mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
NOT Support |
|
Auto White Balance (AEB) |
NOT Support |
|
Auto Gain Control (AGC) |
NOT Support |
|
Dimension |
32mm x 32mm |
|
Storage temperature |
-40 ─ 85 ˚C |
|
Operating temperature |
-30 ─ 85 ˚C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
