High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones

High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-GM872-V1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/2.7" Omnivision OV2735
Resolution: 2MP 1920x1080 Dimensions: Customizable
Lens FOV: 95°(optional) Focus Type: Auto Focus
Interface: USB2.0 Feature: HDR
High Light:

RoHS 2MP Camera Module

,

OV2735 2MP Camera Module

,

OV2735 web camera module

Product Description

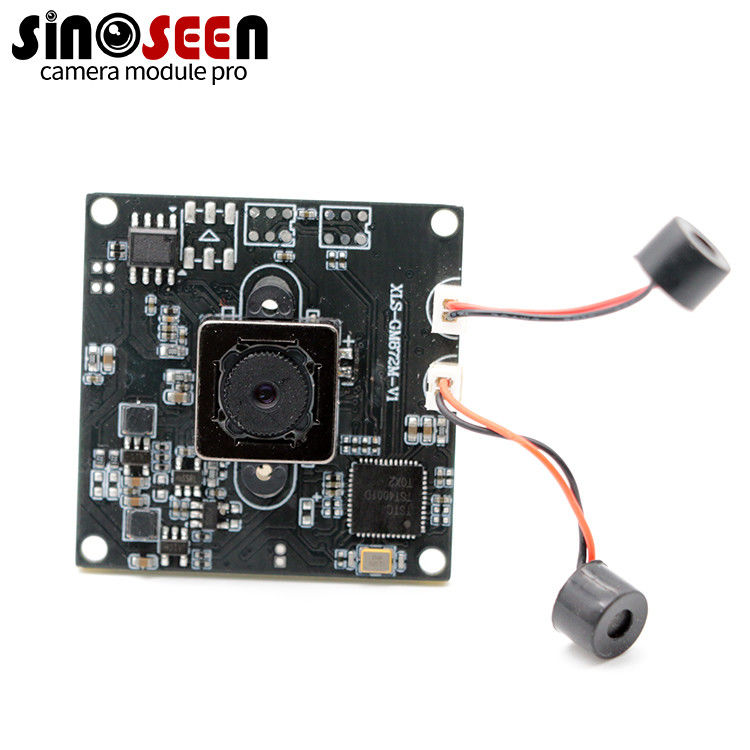

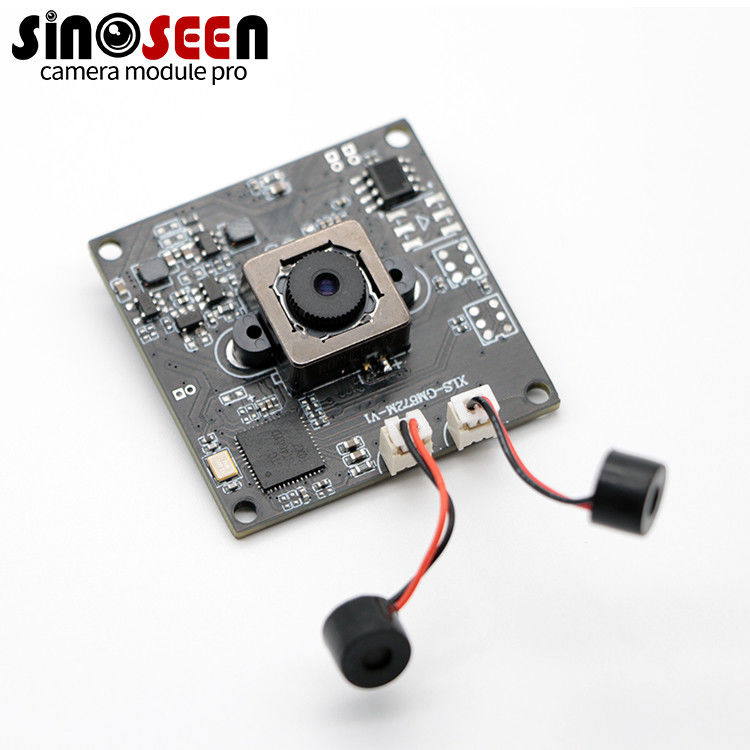

High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones

High Dynamic Range HDR 2MP 1080P 30FPS Auto Focus USB Camera Module With 2 Microphones





This is a USB camera module customized by one of our customers recently to be used as a web camera. The customer requires 1080P, and the image should be real and the color should be realistic. So we chose OV2735, which has HDR function, can restore the true color of the image very well, and the details are also handled very well, making the picture closer to the image seen by the human eye.



The lens focusing method is auto focus, so that it can keep the sharp state at any time when the subject is moving. In addition, in order to facilitate sound reception, we also specially designed two external microphones for customers. Customers can adjust the position of the microphone in its own housing, which is very convenient. Of course, if your equipment or housing space is limited, we can also design the microphone to be SMT, which can save a lot of space, and the effect is also very good.





Specification


Module No

SNS-GM872M-V1

Pixel Size

3.0μm x 3.0μm

Effective Pixels

1920(H)X1080(V)

Video output

YUV2 MJPG

Active Array Size Video Rate

1080p@30FPS

Image Sensor

1/2.7" OV2735

SNR max

TBDdB

Dynamic range

TBDdB

OTG

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure

Lens view

FOV95°(optional),F/N(optional)

Interface

USB BUS POWER 5P-1.25mm

Operating Voltage

DC5V

Operating Current

MAX120MMA

Operating temperature

0~60℃

Storage temperature

-20~70℃

Cable length

Defualt

OS

WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones 0High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones 1High Dynamic Range 2MP Camera Module 1080P 30FPS With 2 Microphones 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
