Auto Focus 8MP UHD Mini Endoscope Camera Module SONY IMX179 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-8MP-EDS-IMX179-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.2" SONY IMX179 Sensor |
|---|---|---|---|
| Resolution: | 8MP (3264*2448) | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | Endoscope Camera Module |
| High Light: | UHD Endoscope Camera Module,8MP USB Endoscope Camera Module,imx179 camera module |
||
Product Description
Auto Focus 8MP UHD Mini Endoscope Camera Module SONY IMX179 Sensor
The Smallest Auto Focus 8MP UHD Mini Endoscope USB Camera Module With SONY IMX179 Sensor
Endoscope Camera Module SONY IMX179 Sensor

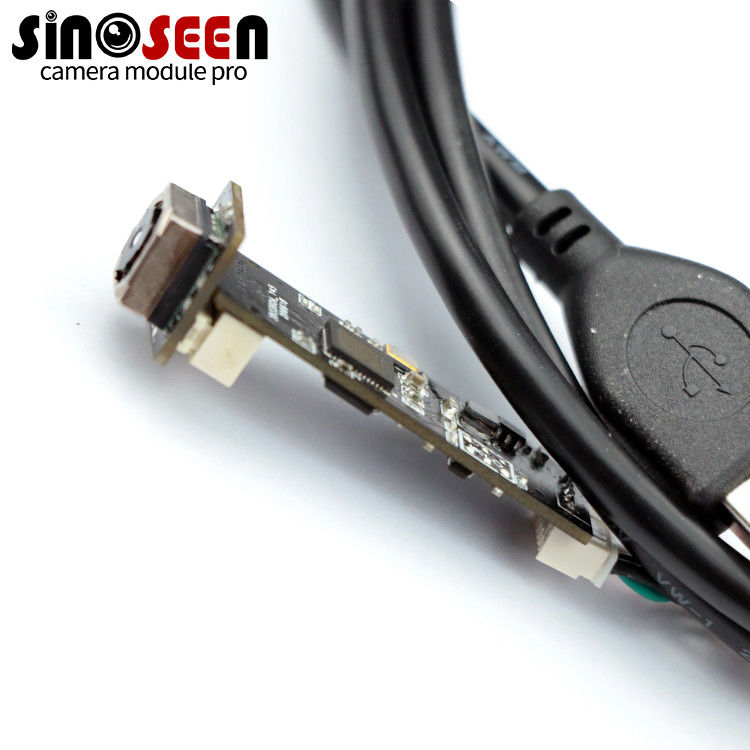

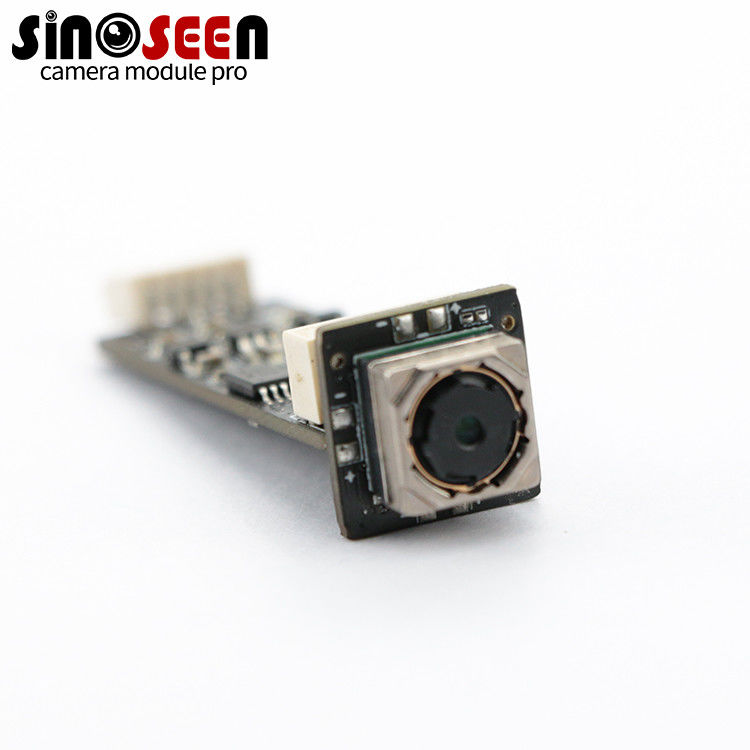

This is currently the most popular high-pixel USB endoscopic camera module design with a very excellent 8MP UHD IMX179 chip from SONY. It uses two PCB boards that can be removed from one end to the other. The upper part is the lens, and it is fast autofocus. , So you can track the object you want to see clearly no matter how close or how far away.

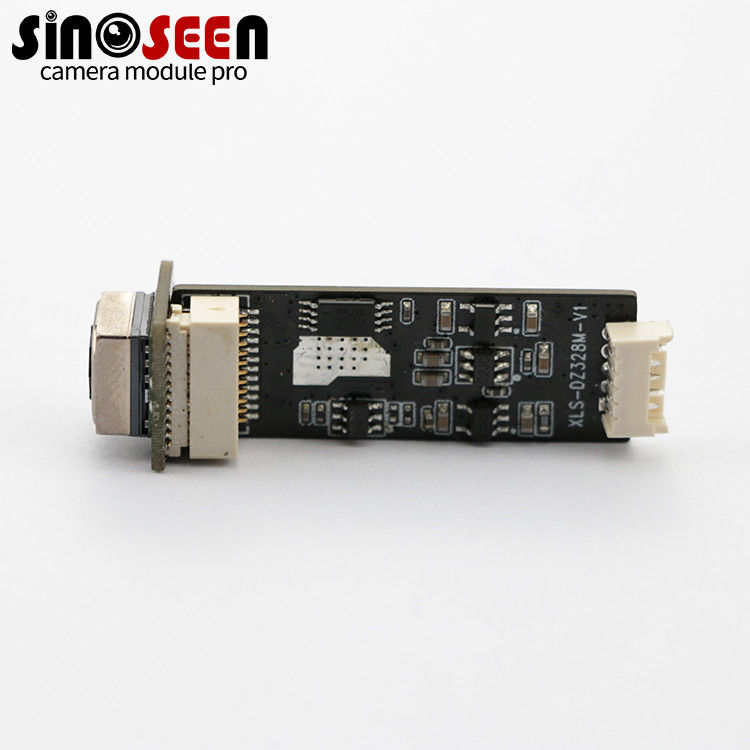

The lower part is the control panel, its width is the same as the lens base, so you can use it easily no matter how narrow and limited space is.
If your ambient light is not very good, we can also design several LED lights near the lens for you. When the module is working, the LED lights will turn on and fill the camera with light, which is very simple and convenient.
Specification
|
Model No |
SNS-8MP-EDS-IMX179-V1.0 |
|
|
Sensor |
1/3.2’’ SONY IMX179 Sensor |
|
|
Pixel |
8 Mega Pixel |
|
|
Most effective pixels |
3264(H) x 2448(V) |
|
|
Pixel Size |
1.4µm x 1.4µm |
|
|
Chroma |
RGB/Color |
|
|
Shutter Type |
Electronic rolling shutter |
|
|
Focus type |
Fixed Focus |
|
|
S/N ratio |
36dB |
|
|
Dynamic range |
60dB |
|
|
Lens FOV |
120° |
|
|
Interface type |
USB2.0 |
|
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
|
Audio frequency |
Optional |
|
|
Microphone |
Built-in |
|
|
Power supply |
USB BUS POWER |
|
|
Power consumption |
DC 5V, 110mA |
|
|
Main chip |
DSP/SENSOR/FLASH |
|
|
Auto Exposure Control (AEC) |
Support |
|
|
Auto White Balance (AEB) |
Support |
|
|
Auto Gain Control (AGC) |
Support |
|
|
Dimension |
35.5MM x 12.5MM |
|
|
Storage temperature |
-20°C to 70°C |
|
|
Operating temperature |
0°C to 60°C |
|
|
USB cable length |
Default |
|
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
|
