Type-C Interface Medical Endoscope Camera Module For Colonoscopy Gastroscopy
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-OV9734-E2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/9" Omnivision OV9734 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 720(V) | Dimensions: | Customizable |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 Type-C | Feature: | Endoscope Camera Module |
| High Light: | OV9734 Endoscope Camera Module,30FPS Endoscope Camera Module,30FPS 1MP micro camera module |
||
Product Description
Type C Interface Medical Endoscope Camera Module For Colonoscopy Gastroscopy
Tiny Type-C Interface Medical Endoscope USB Camera Module For Colonoscopy Gastroscopy
Endoscope Camera Module

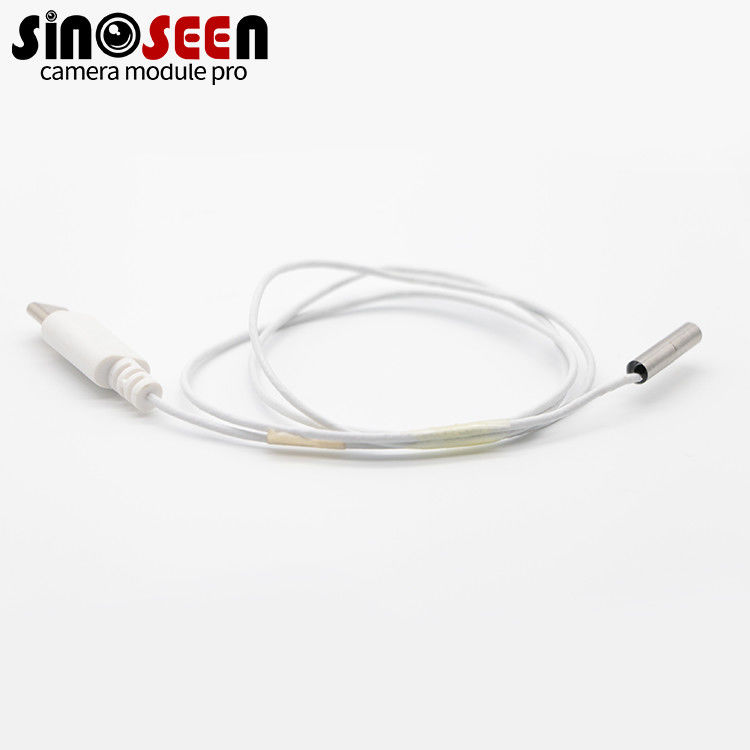

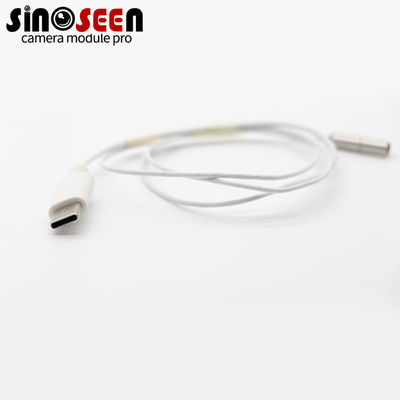

This is a very small USB medical endoscopic camera module, using Type C interface, can be connected to the mobile phone APP, plug and play, real-time viewing, very convenient. The lens is equipped with 4 LED fill lights, and water-proof glue is used for water-proof treatment.
Because of its compact design, this endoscopic camera module is very popular among doctors and is often used in colonoscopy endoscopes or gastroscopic endoscopes.
If you have similar needs, you can use this design to customize your own endoscopic camera module. We have a professional engineering team to discuss with you various requirements such as structural dimensions and functions.
Specification
|
Module No |
SNS-1MP-OV9734-E2 |
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
1MP 1280(H) x 720(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
30FPS |
|
Image Sensor |
1/9" |
|
Sensor Type |
Omnivision OV9734 |
|
Lens view |
FOV60°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |
