0.3MP MIPI Interface Endoscope Camera Module For Portable Visual Dental Scaler
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-0.3MP-GC0312-E2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/10" GalaxyCore GC0312 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | Customizable |
| Lens FOV: | 50°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Endoscope Camera Module |
| Highlight: | MIPI Endoscope Camera Module,ODM Endoscope Camera Module,mipi spy cam module |
||
Product Description

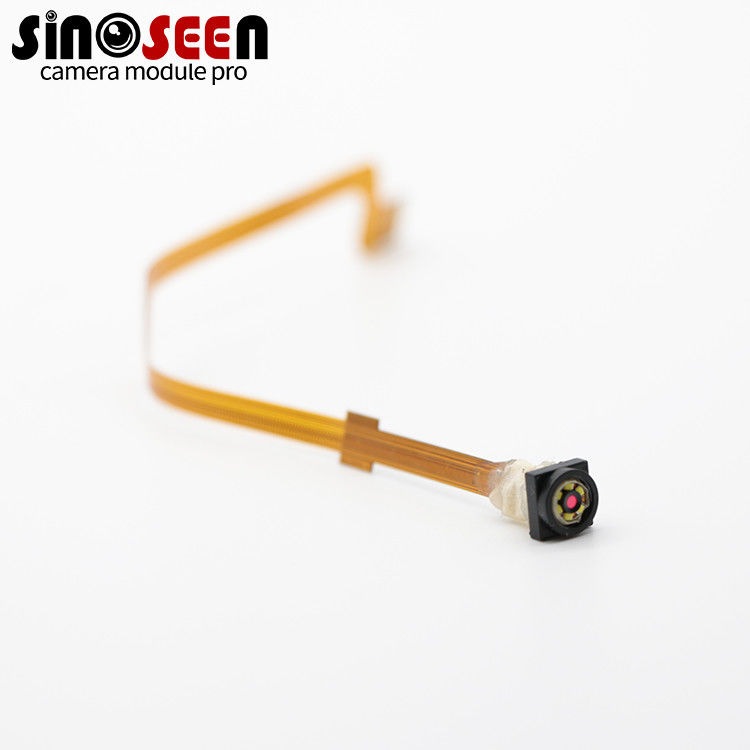

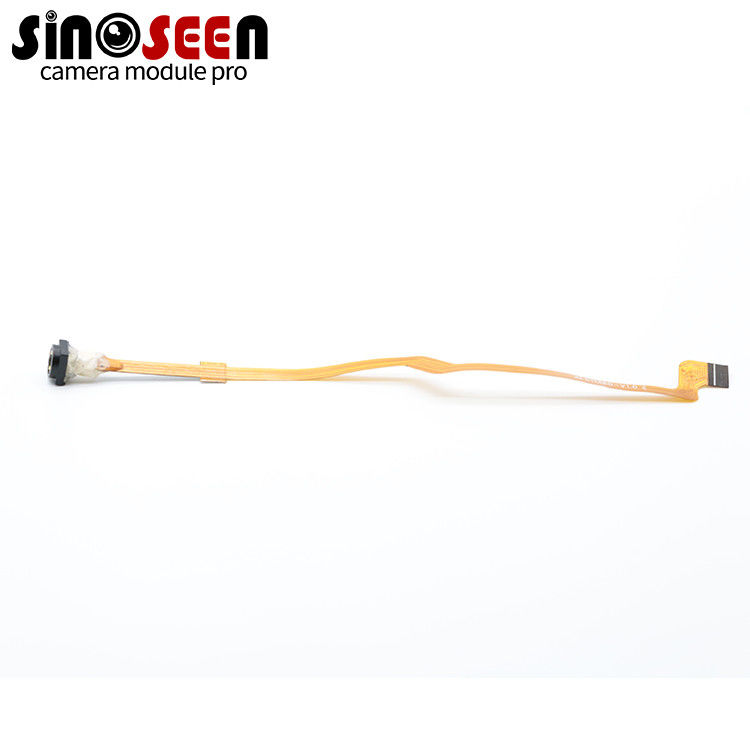

0.3MP MIPI Interface Endoscope Camera Module For Portable Visual Dental Scaler
0.3MP MIPI Endoscope Camera Module For Portable Visual Dental Scaler
Endoscope Camera Module
Our client wanted to develop a visual dental scaler, so he found us to design the camera module part for him. Our engineering team and their product development department docked and discussed, and then made this MIPI camera module.

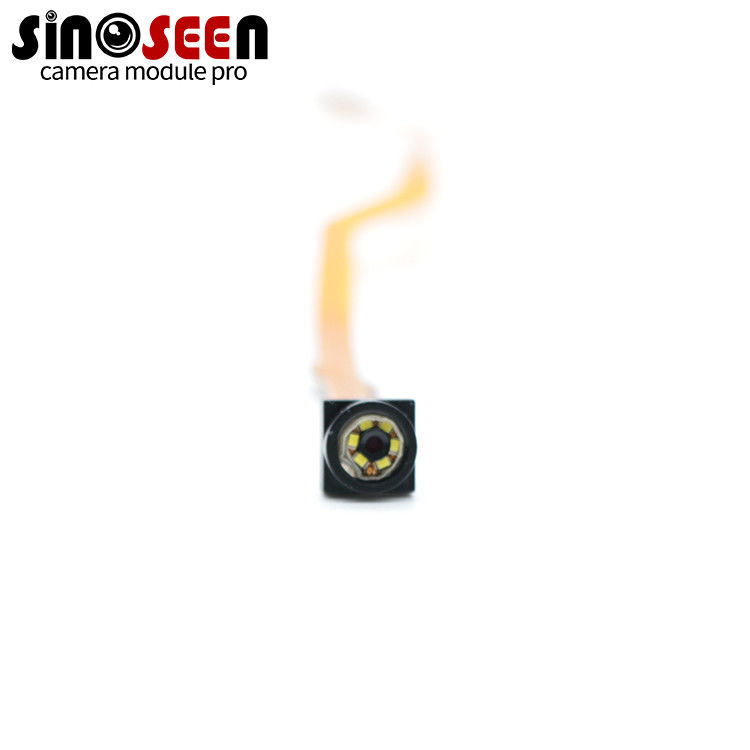

This is a 0.3MP camera module with GC0312 sensor from GalaxyCore. Because the distance is very close, it is used to photograph the dirt on the teeth, so there is no high requirement on the pixels. Since the light in the oral cavity is not very good, we also installed 6 LED lights around the camera to fill the light. In addition, the distance between the surface of the tooth being photographed and the camera is relatively close, so we used a lens with a very good depth of field.
If you have any newly developed products that need to use the camera, please consult. We have participated in the design of camera modules for thousands of products and have extensive experience covering various applications in various fields. Can provide you with good suggestions on structure and function.
Specification
|
Module No |
SNS-0.3MP-GC0312-E2 |
|
Pixel Size |
2.25μm x 2.25μm |
|
Effective Pixels |
0.3MP 640(H) x 480(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
30FPS |
|
Image Sensor |
1/10" |
|
Sensor Type |
GalaxyCore GC0312 |
|
Lens view |
FOV50°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |
