Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1MP-OV9734-E1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/9" Omnivision OV9734
Resolution: 1MP 1280(H) X 720(V) Dimensions: Customizable
Lens FOV: 60°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Endoscope Camera Module
High Light:

USB 1MP Endoscope Camera Module

,

1MP OV9734 Endoscope Camera Module

,

OV9734 industrial camera module

Product Description

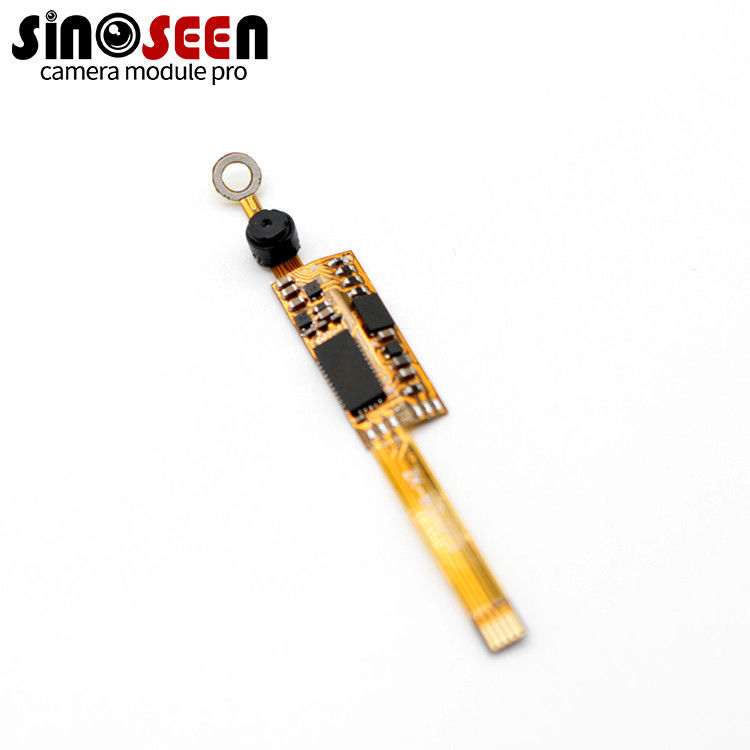

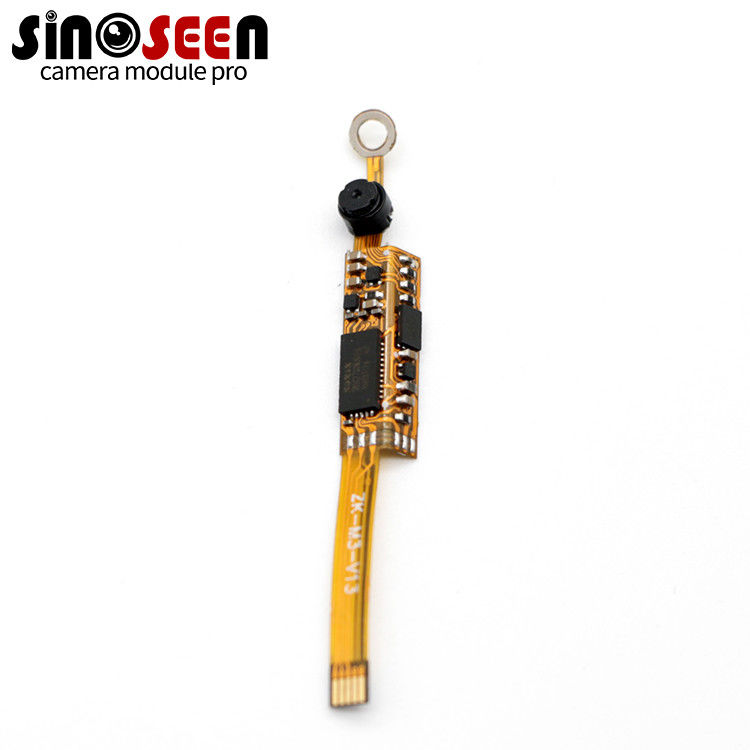

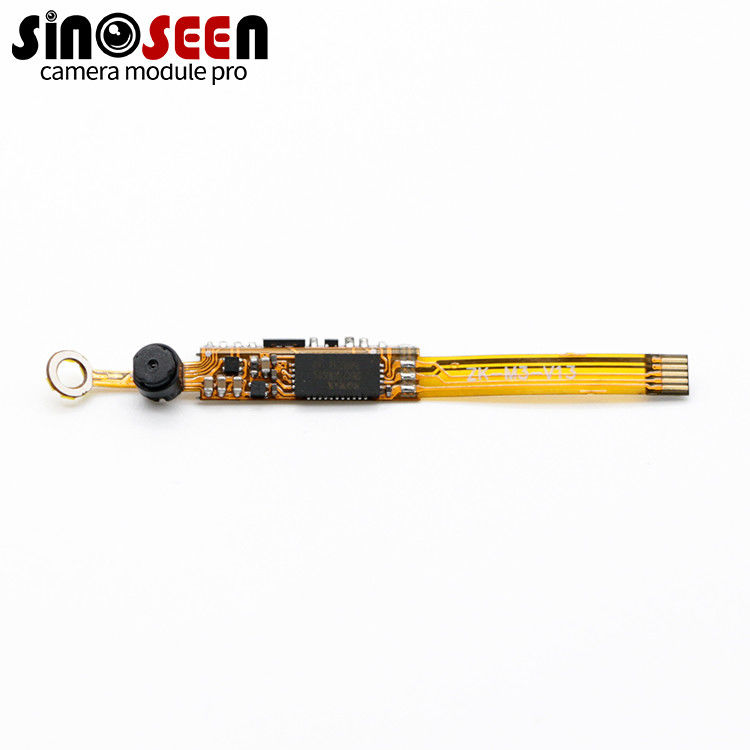

Tiny Size USB Endoscope Camera Module Foldable Flexible PCB OV9734 Sensor

Foldable Flexible PCB Tiny Size USB Endoscope Camera Module With 6 LED Fill In Lights



endoscopic camera module

This is a very compact USB endoscopic camera module. It adopts a foldable design, which is very suitable for some application environments that need to be placed in a tube. The six additional light rings can just be placed on the lens and pasted together without requiring more space.

The chip uses OV9734 from OVT, 1280x720@30FPS, and the picture is very clear and stable. It is very rare to achieve such a small design under 720P. You can also use your imagination to apply this design to your products to make your products more competitive in the market.





Specification

Module No

SNS-1MP-OV9734-E1

Pixel Size

1.4μm x 1.4μm

Effective Pixels

1MP 1280(H) x 720(V)

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

30FPS

Image Sensor

1/9"

Sensor Type

Omnivision OV9734

Lens view

FOV60°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

-20~70℃

Storage temperature

0~50℃

Dimensions

Customizable





Tiny Size USB Endoscope Camera Module Foldable Flexible PCB OV9734 Sensor 0Tiny Size USB Endoscope Camera Module Foldable Flexible PCB OV9734 Sensor 1

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current available USB solution



0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)



1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)



2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)



5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)



8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)



13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)



USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268



H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
