GC1009 Sensor MIPI Endoscope Iot Camera Module 1MP 720P Flexible
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-GC1009-M1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/9" GalaxyCore GC1009 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 720(V) | Dimensions: | Customizable |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Endoscope Camera Module |
| High Light: | GC1009 Iot Camera Module,1MP Endoscope Iot Camera Module,MIPI Endoscope mobile camera module |
||
Product Description
GC1009 Sensor MIPI Endoscope Iot Camera Module 1MP 720P Flexible
1MP 720P Flexible Design MIPI Endoscope Camera Module With GalaxyCore GC1009 Sensor

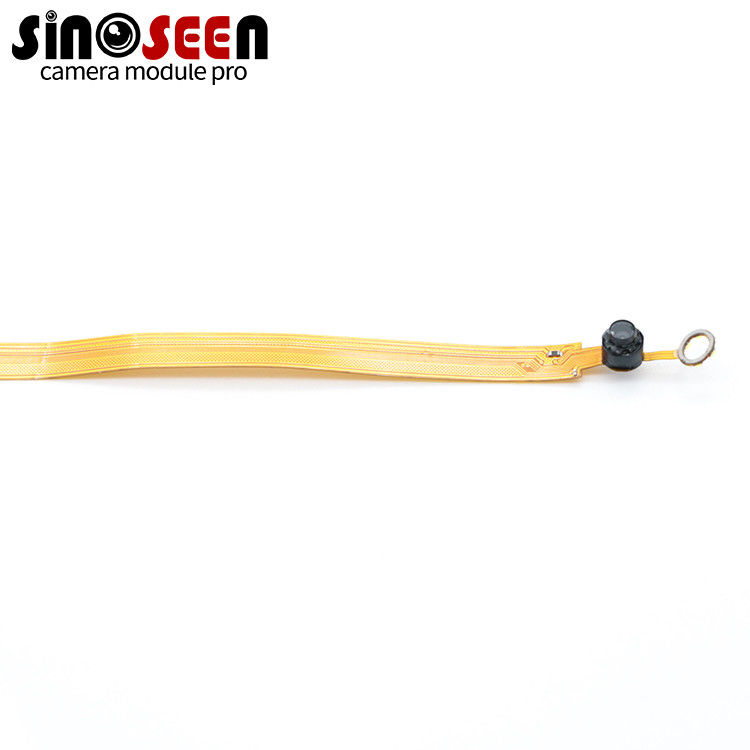

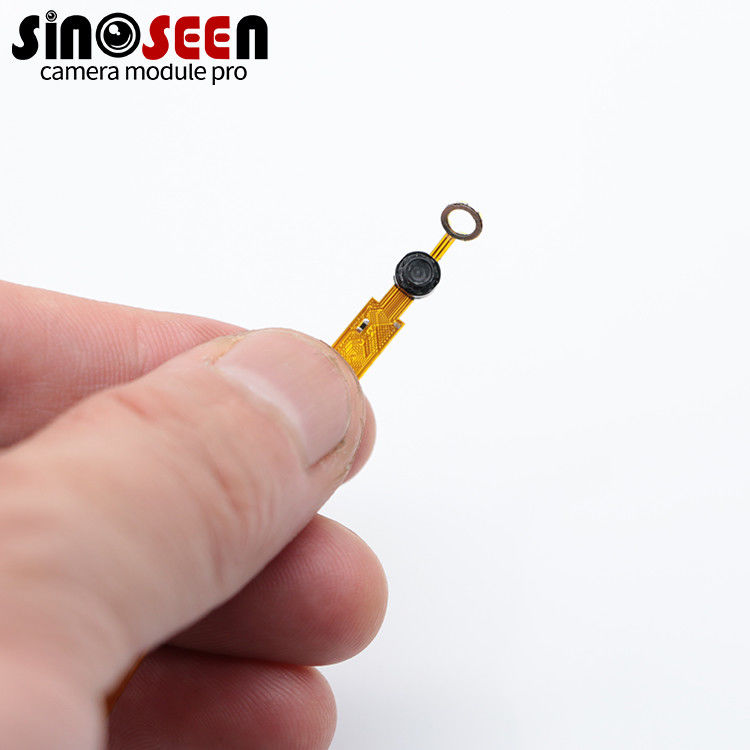

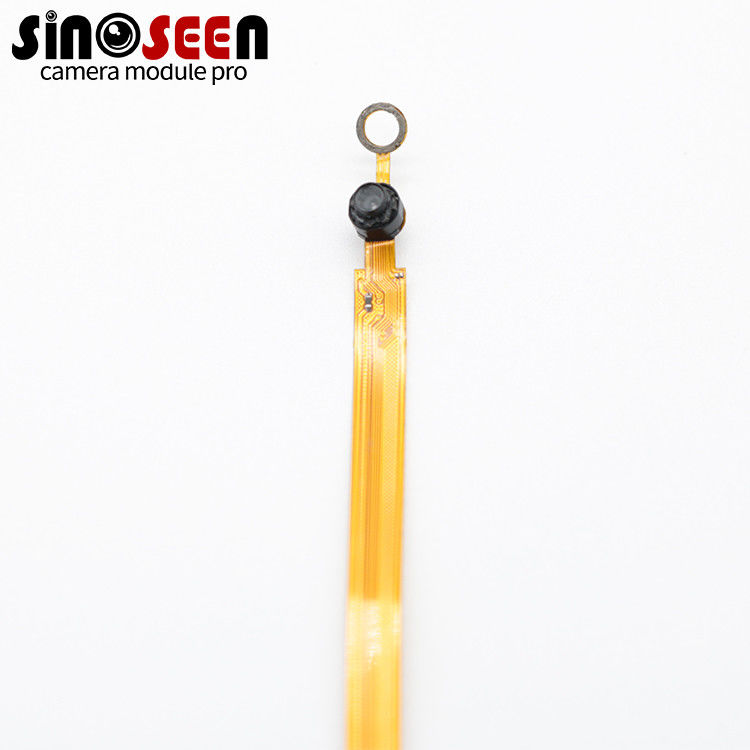

This is a 1MP MIPI endoscopic Iot Camera Module with a flexible FPC design. In this camera module, the GC1009 from GalaxyCore is used. It is a very cost-effective and stable chip with good image quality and can output 1280x720.
Like most endoscopic camera modules, we have installed 6 LED lights around the lens in order to better fill the light. Of course, you can decide whether you want LED lights or choose to use fewer LED lights according to your application needs. In terms of structure, we can also design with your product. All you need to do is tell our engineering team about your specific needs, and we will customize the most suitable endoscopic camera module for you based on the actual situation.
|
Module No |
SNS-1MP-GC1009-M1 |
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
1MP 1280(H) x 720(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Image Sensor |
1/9" |
|
Sensor Type |
GalaxyCore GC1009 |
|
Lens view |
FOV60°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
