Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs

Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-0.3MP-BF3703-E1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: DVP Camera Module Sensor: 1/10" BYD BF3703
Resolution: 0.3MP 640(H) X 480(V) Dimensions: Customizable
Lens FOV: 55°(optional) Focus Type: Fixed Focus
Interface: DVP Feature: Endoscope Camera Module
High Light:

0.3MP DVP Camera Module

,

BF3703 DVP Camera Module

,

DVP small camera module

Product Description

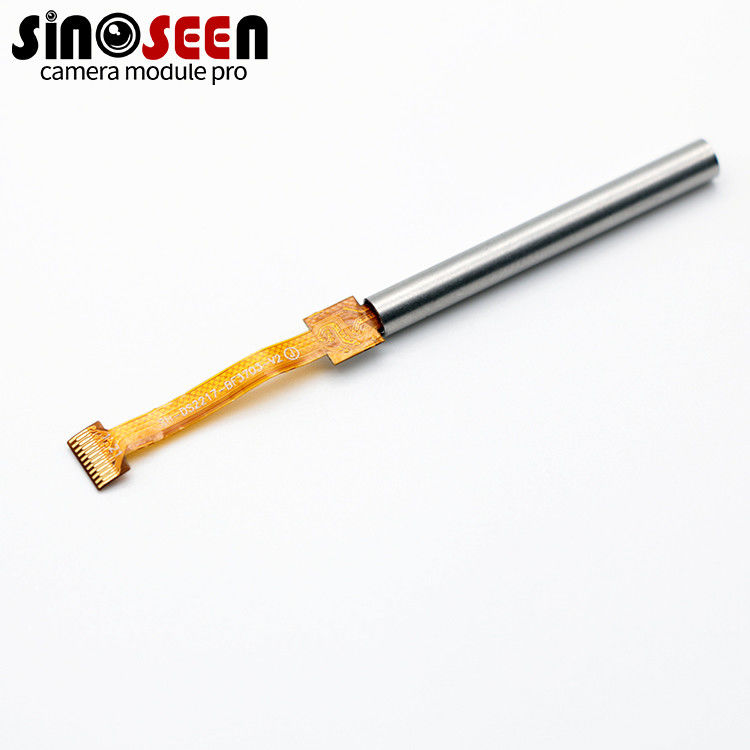

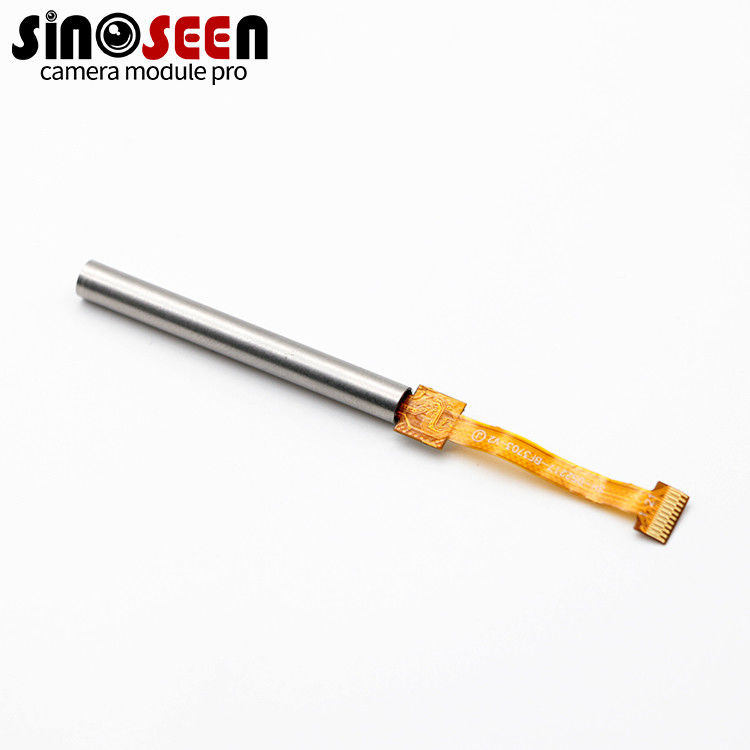

Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs

Compact Design 0.3MP DVP Endoscope Camera Module With 6 LEDs In Waterproof Steel Tube

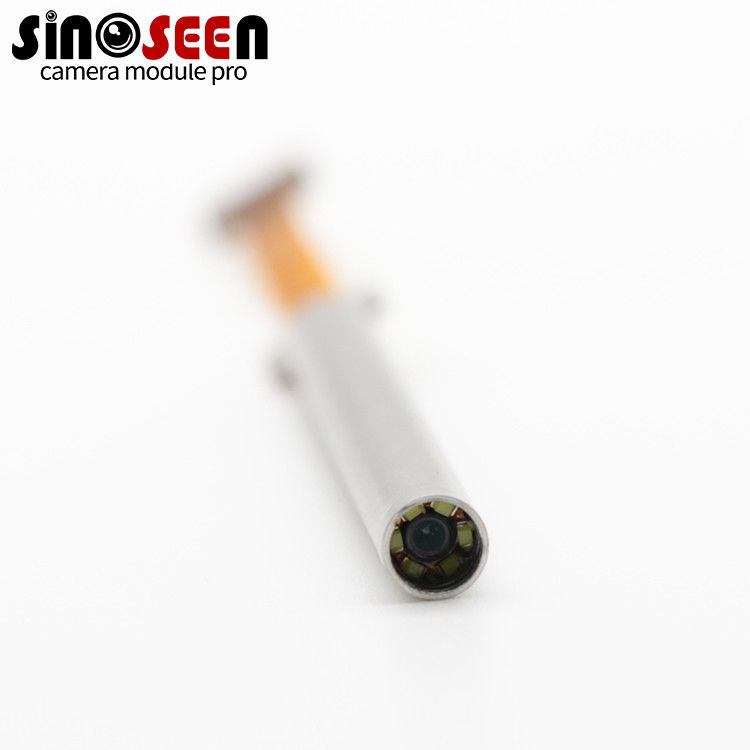

This is a compact design of the DVP endoscopic camera module, which is equipped with 6 LED lights around the lens to fill in the light, and placed in a steel tube. The front end of the lens can be treated with waterproof glue to achieve the purpose of waterproofing. This allows it to work normally in some humid or watery environments.


The chip uses BYD's BF3703, which is cheap and stable. If you need to win the market through price advantages, it will be a very good choice.



Specification





Module No

SNS-0.3MP-BF3703-E1

Pixel Size

2.2μm x 2.2μm

Effective Pixels

0.3MP 640(H) x 480(V)

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

VGA@30FPS; QVGA@90FPS

Image Sensor

1/10"

Sensor Type

BYD BF3703

Lens view

FOV55°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

-20~70℃

Storage temperature

0~50℃

Dimensions

Customizable





Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs 0Waterproof Steel Tube 0.3MP DVP Camera Module Endoscope With 6 LEDs 1

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
