OV9281 Sensor 1MP Usb Camera Module Auto Focus mini Endoscopic For Global Exposure
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1021-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Endoscopic Camera Module | Sensor: | 1/4" Omnivision OV9281 CMOS |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Pixel Size: | 3μm X 3μm | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | Endoscopic Module |
| Highlight: | Endoscopic 1MP Camera Module,AF 1MP Camera Module,OV9281 Sensor Endoscopic Camera Module |
||
Product Description

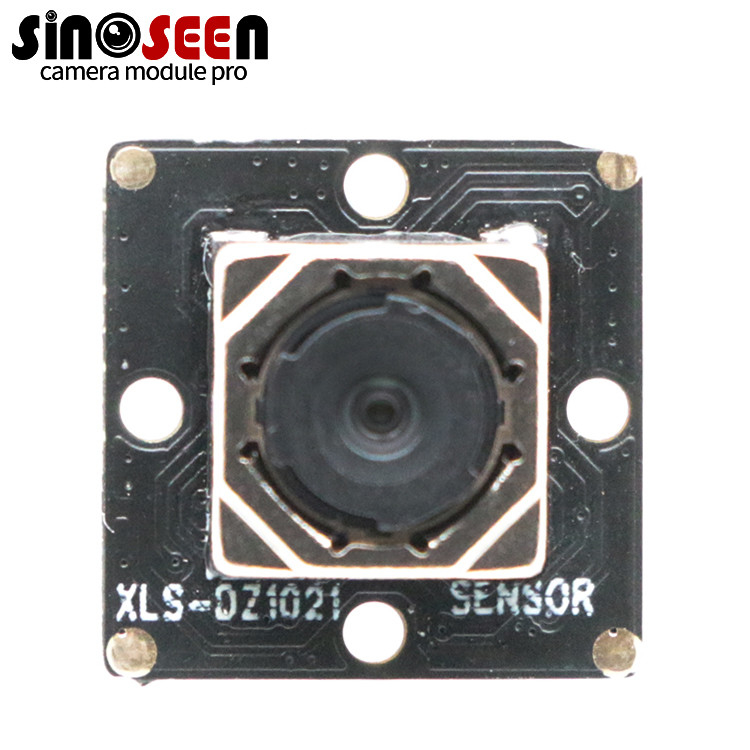

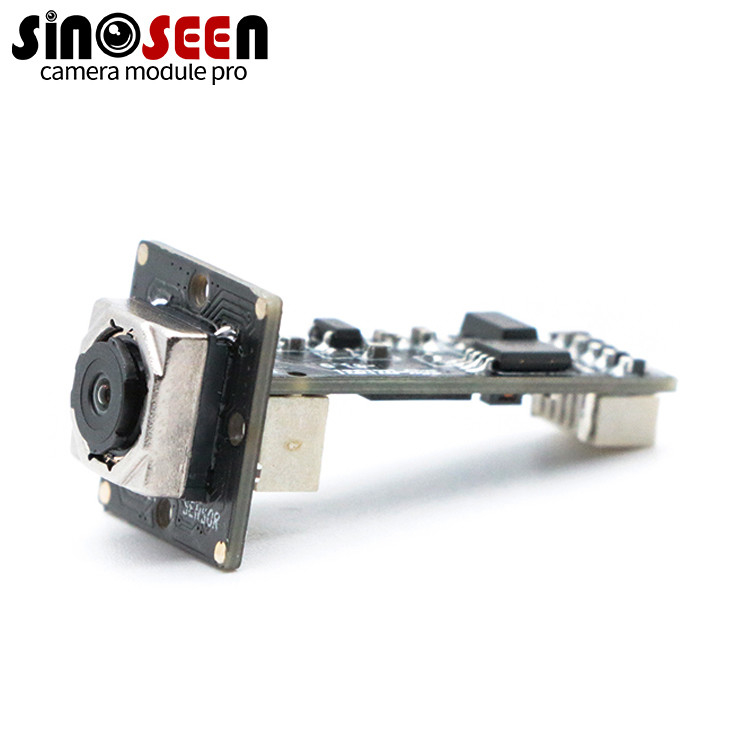

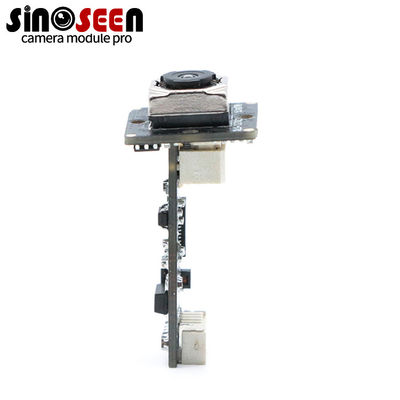

1-megapixel OV9281 sensor AF mini endoscopic usb camera module global shutter for global exposure
auto focus Endoscope camera module
This is our customized endoscope camera module for customers. It is a monochrome Omnivision OV9281 CMOS sensor that only outputs black and white images. The biggest advantage of this camera is that it supports a high frame rate of 120FPS at 1280x800 and a high resolution of 210FPS at 640x400. What we can't see with the naked eye, then the endoscope camera module can fully realize this operation. This module is very popular with doctors in hospitals.
The camera can be used in many consumer and medical vision, vision systems, medical endoscopy equipment, etc.
Specification:usb camera module
|
Model No |
SNS-DZ1021-V1.0 |
|
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3μm x 3μm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
auto focus |
|
S/N ratio |
TdB |
|
Dynamic range |
TdB |
|
Dark current |
80e-/sec |
|
Interface type |
High speed USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
0°C to 50°C |
|
Operating temperature |
-30°C to +85°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
