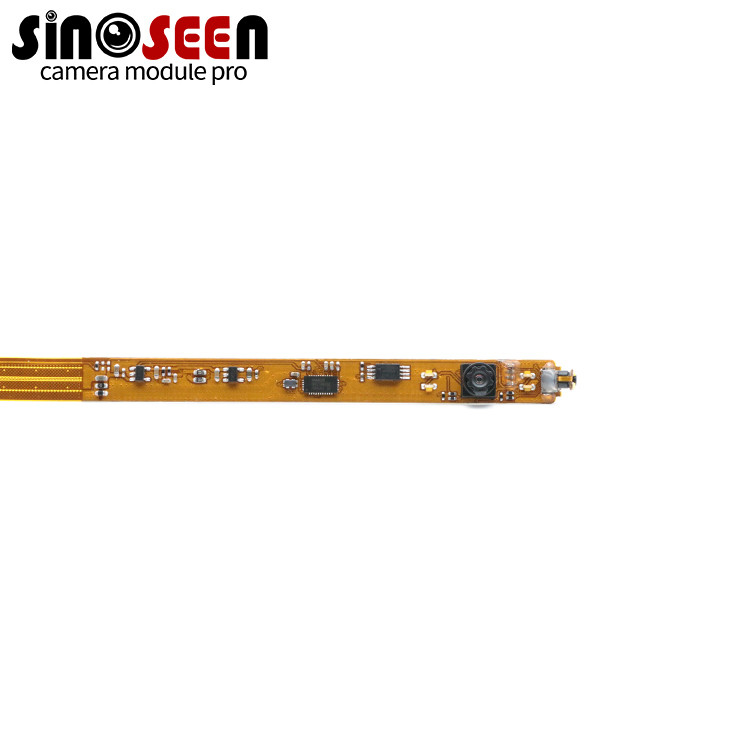

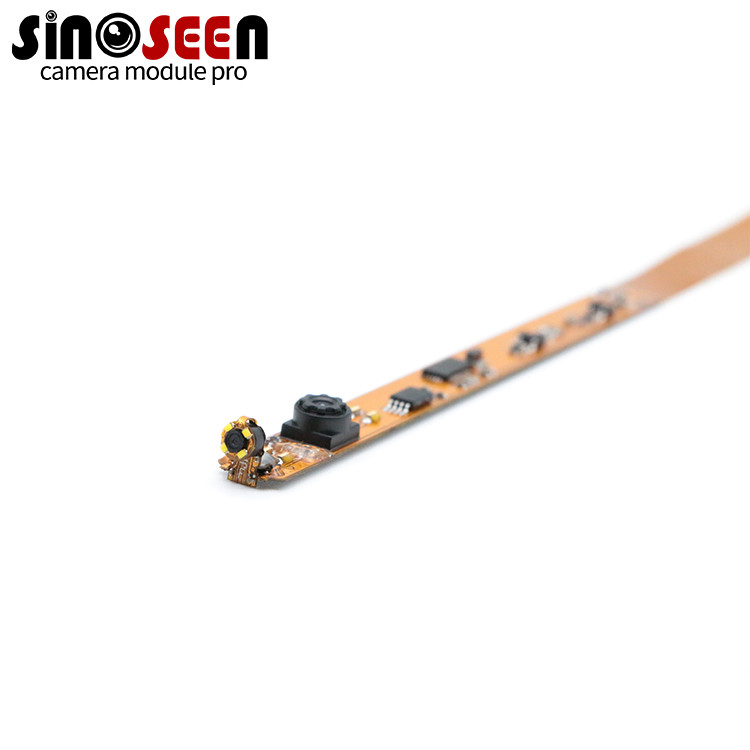

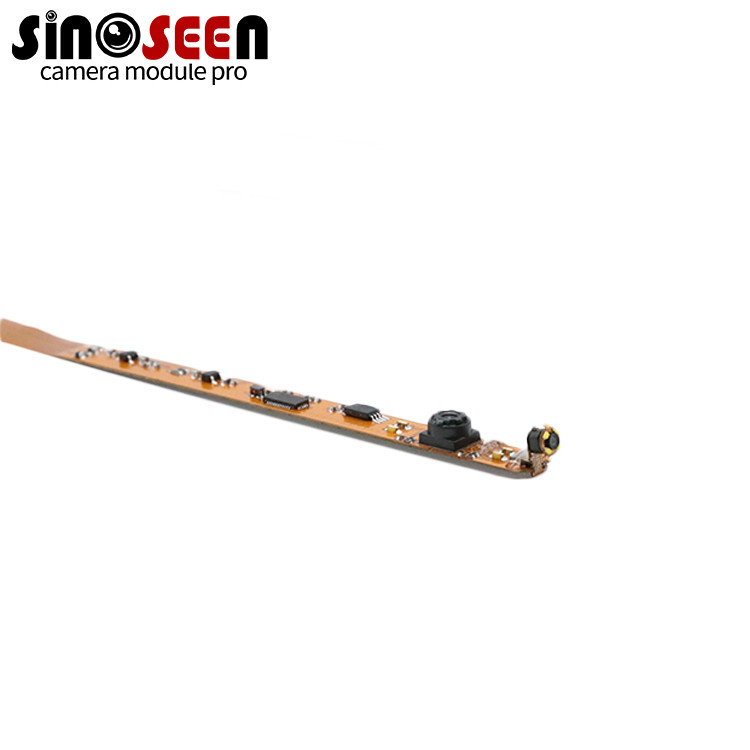

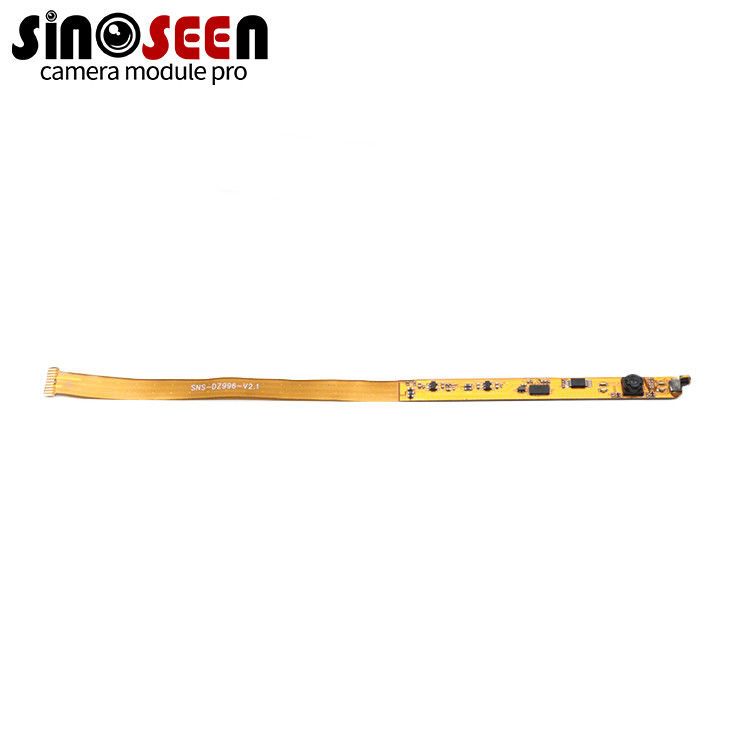

Ultra Small 1MP OV9734 Low Power Camera Module For Medical Endoscopes

Ultra Small 1MP OV9734 Low Power Camera Module For Medical Endoscopes

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-DZ996-V2.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: Camera Module Sensor: 1/9" Omnivision OV9734
Resolution: 1MP 1280(H) X 720(V) Dimensions: Customizable
Lens FOV: (optional) Focus Type: Fixed Focus
Interface: MIPI Feature: Endoscope Camera Module
High Light:

OV9734 Low Power Camera Module

,

1MP Endoscopes Low Power Camera Module

,

MIPI Endoscope Camera Module

Product Description

Ultra Small Binocular 1MP OV9734sensor Ultra Low Power MIPI Camera Module for Medical Endoscopes

OEM Customizable Medical Endoscope Camera Module Vision Solution





At present, this micro camera module using OV9734sensor is the smallest 1 million camera module in the industry, and it is also the only 1 million micro camera module with low power consumption. Ultra-thin, ultra-small, ultra-low power consumption. Megapixel camera module. The format it outputs: Mipi . Available camera ports: USB 2.0 A (MD-B21105L); Micro USB B (MM-B21105L); USB Type C (MT-B21105L)

This camera is an endoscopic camera and can be used in medical and industrial endoscopes. We use endoscopes to see lesions that X-rays can't see, so it's very useful to doctors. For example, endoscopists can look at ulcers or tumors in the stomach and use that to determine the best treatment plan.



Specification

Module No SNS-DZ996-V2.0
Pixel Size 1.4μm x 1.4μm
Effective Pixels 1MP 1280(H) x 720(V)
Video output Raw Bayer10bit/8bit
Active Array Size Video Rate 30FPS
Image Sensor 1/9"
Sensor Type Omnivision OV9734
Lens view (optional)
TV Distortion <1%
AEC Support
AEB Support
AGC Support
Operating voltage AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V
Operating temperature -20~70℃
Storage temperature 0~50℃
Dimensions Customizable
