1MP Auto Focus USB Camera Module OV9281 Sensor Mini Endoscope Global Exposure
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1021-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Endoscopic Camera Module | Sensor: | 1/4" Omnivision OV9281 CMOS |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Pixel Size: | 3μm X 3μm | Focus Type: | Auto Focus |
| Interface: | USB2.0 | Feature: | Endoscopic Module |
| High Light: | 180mW USB Camera Module,1MP Endoscope Camera Module,Global Exposure Endoscope Camera Module |
||
Product Description
1MP Auto Focus USB Camera Module OV9281 Sensor Mini Endoscope Global Exposure
auto focus Endoscope camera module

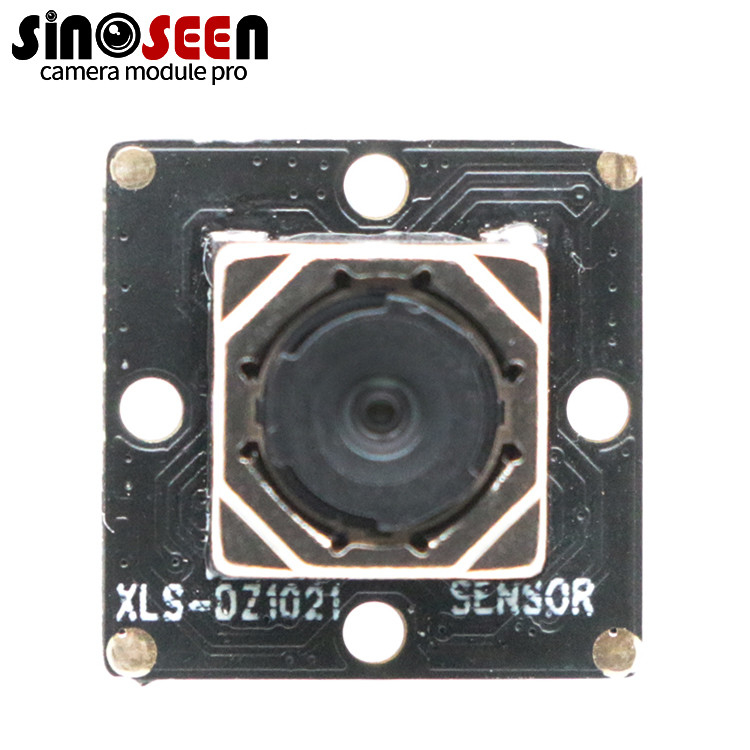

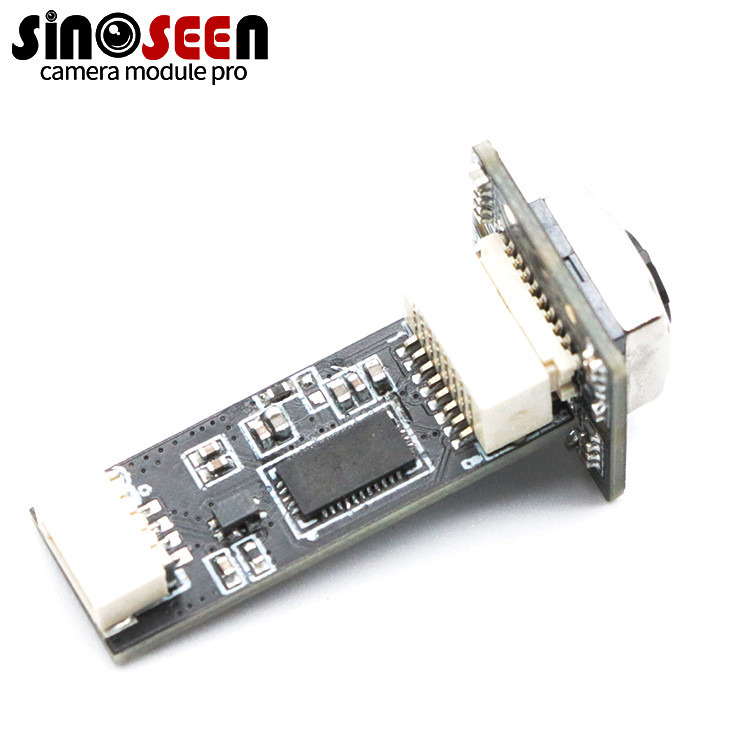

This is a 1MP autofocus USB camera module. Camera module using OV9281 sensor, designed for endoscopy applications. It has an autofocus function that allows the camera to automatically adjust focus based on the distance of the object being viewed. This is especially useful in endoscopy applications where the distance between the camera and the object being viewed may vary.
This camera module also features global exposure, which means all pixels are exposed at the same time, providing clear and sharp images even in low-light conditions. This feature is especially important in endoscopy applications, where cameras need to capture images in areas with limited light.
Specification:usb camera module
|
Model No |
SNS-DZ1021-V1.0 |
|
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3μm x 3μm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
auto focus |
|
S/N ratio |
TdB |
|
Dynamic range |
TdB |
|
Dark current |
80e-/sec |
|
Interface type |
High speed USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
0°C to 50°C |
|
Operating temperature |
-30°C to +85°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
