Ultra Small 1MP Mipi Camera Module OV9734 Low Power Consumption Medical Endoscope
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ996-V2.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Camera Module | Sensor: | 1/9" Omnivision OV9734 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 720(V) | Dimensions: | Customizable |
| Lens FOV: | (optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Endoscope Camera Module |
| High Light: | 1MP Mipi Camera Module,Medical Endoscope Mipi Camera Module,Ultra Small Endoscope Camera Module |
||
Product Description

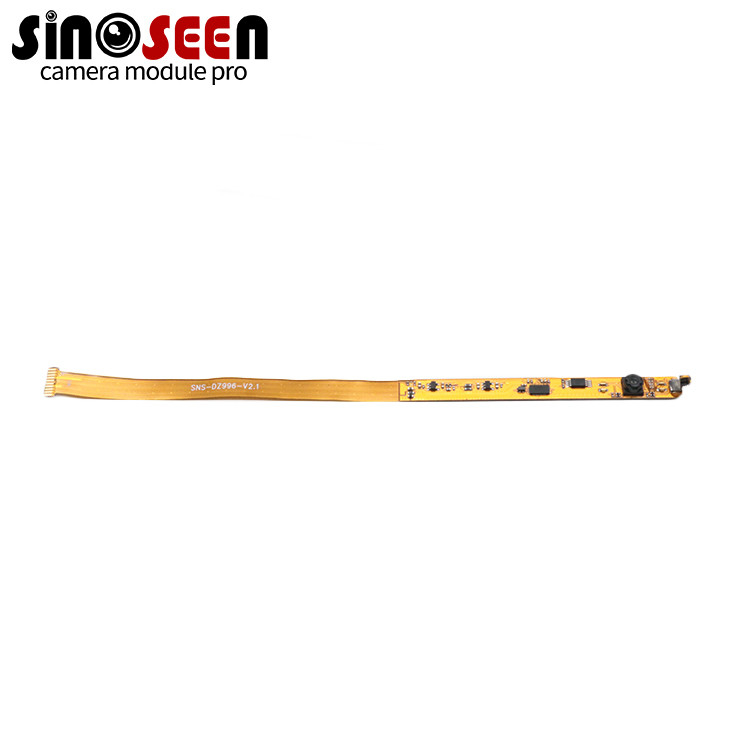

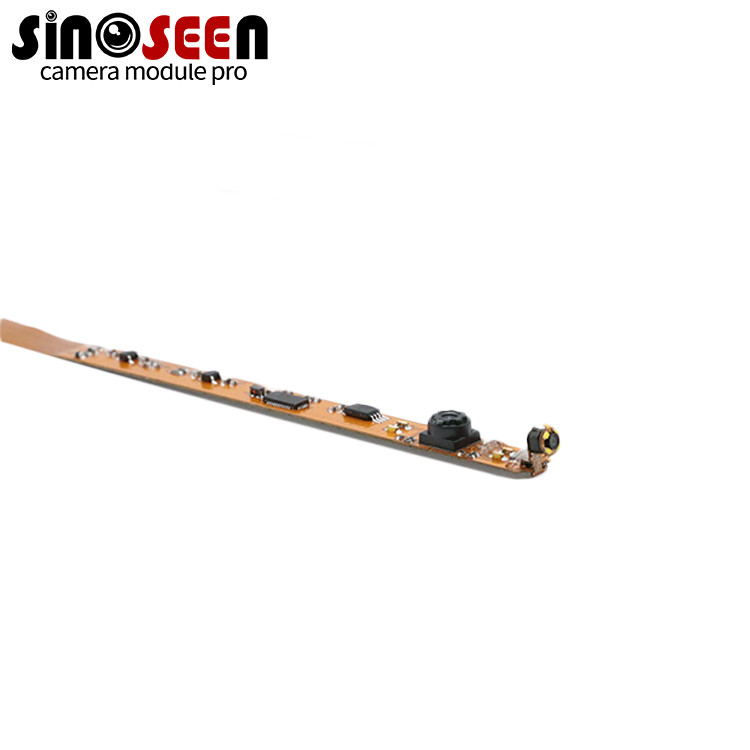

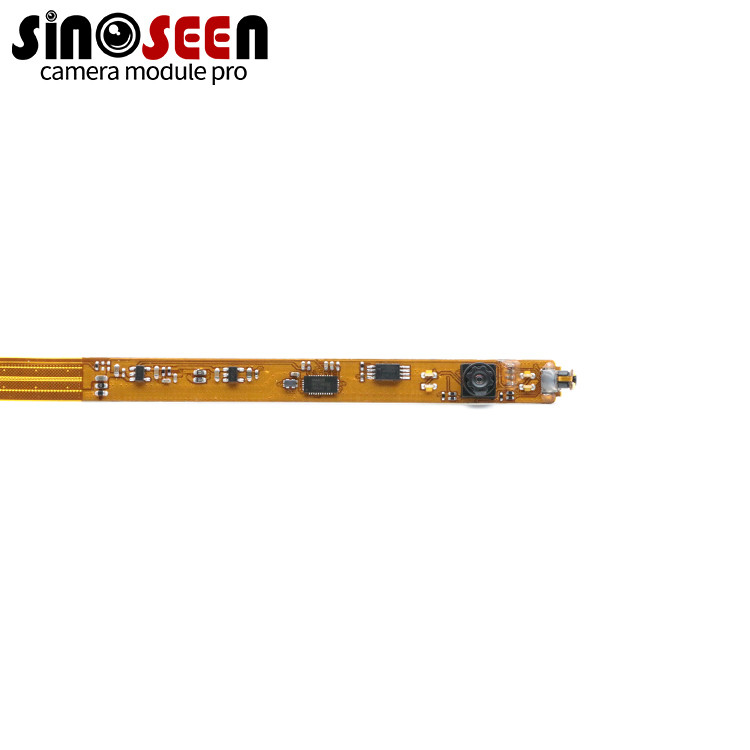

Ultra Small Binocular 1MP OV9734 sensor Ultra Low Power MIPI Camera Module for Medical Endoscopes
OEM Customizable Medical Endoscope Camera Module Vision Solution
This OV9734 camera module is a small camera module specially designed for medical endoscope use. It has 1 MEGAPIXEL (MP) resolution and uses MIPI interface for data transfer. Known for its low power consumption and high image quality, the OV9734 camera module is ideal for battery-powered applications. This enables it to capture high-quality images with low noise and excellent low-light performance.
The camera module also features a low-power mode to further reduce power consumption. This makes it ideal for battery-operated medical endoscopes, where power consumption is a key factor.
Its small size and low power consumption make it ideal for battery-powered applications, while its high image quality and low-light performance ensure detailed images are captured even in challenging lighting conditions.
| Module No | SNS-DZ996-V2.0 |
| Pixel Size | 1.4μm x 1.4μm |
| Effective Pixels | 1MP 1280(H) x 720(V) |
| Video output | Raw Bayer10bit/8bit |
| Active Array Size Video Rate | 30FPS |
| Image Sensor | 1/9" |
| Sensor Type | Omnivision OV9734 |
| Lens view | (optional) |
| TV Distortion | <1% |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
| Operating temperature | -20～70℃ |
| Storage temperature | 0～50℃ |
| Dimensions | Customizable |
