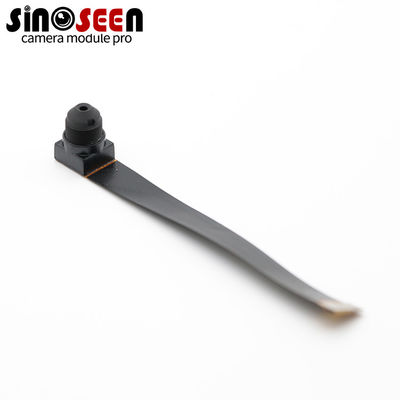

OV2640 Sensor 2MP DVP Camera Module UXGA Narrow Angle Lens
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OV2640-D1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | DVP Camera Module | Sensor: | 1/4" Omnivision OV2640 |
|---|---|---|---|
| Resolution: | 2MP 1600x1200 | Dimensions: | Customizable |
| Lens FOV: | 30°(optional) | Focus Type: | Fixed Focus |
| Interface: | DVP | Feature: | Low Voltage |
| High Light: | OV2640 Sensor DVP Camera Module,Narrow Angle Lens DVP Camera Module,UXGA 2MP Camera Module |
||
Product Description
Color Image 2MP DVP Camera Module OV2640 Sensor UXGA Narrow Angle Lens
Low Voltage Color Image 2MP UXGA Narrow Angle Lens DVP Camera Module With Omnivision OV2640 Sensor
DVP camera module
This is a camera module capable of capturing images with a resolution of 2 megapixels. It uses the OV2640 sensor, which is a popular image sensor used in many camera modules due to its low power consumption, high sensitivity and low noise characteristics.
The camera module is designed with a narrow-angle lens, which means it has a smaller field of view compared to a wide-angle lens. This type of lens is ideal for applications that require a more focused and specific view, such as surveillance or security systems.
The UXGA resolution of the camera module refers to the resolution of 1600x1200 pixels, which is higher than the standard HD resolution of 1280x720 pixels. This means the camera module is able to capture more detail and higher quality images.
Specification
|
Module No |
SNS-2MP-OV2640-D1 |
|
Pixel Size |
2.2μm x 2.2μm |
|
Effective Pixels |
1600×1200 |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
UXGA/SXGA@15FPS;SVGA@30FPS;CIF@60FPS |
|
Image Sensor |
1/4" |
|
Sensor Type |
Omnivision OV2640 |
|
Lens view |
FOV30°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-30～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
