Ribbon Cable 5MP DVP OV5647 Camera Module Fixed Focus With IR 650nm Filter

Ribbon Cable 5MP DVP OV5647 Camera Module Fixed Focus With IR 650nm Filter

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-5MP-OV5647-v1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: DVP Camera Module Sensor: 1/4" Omnivision OV5647
Resolution: 5MP 2592(H) X 1944(V) Dimensions: Customizable
Lens FOV: 85°(optional) Focus Type: Fixed Focus
Interface: DVP Feature: HD
High Light:

DVP OV5647 Camera Module

,

ODM OV5647 Camera Module

,

DVP OV5647 Camera

Product Description

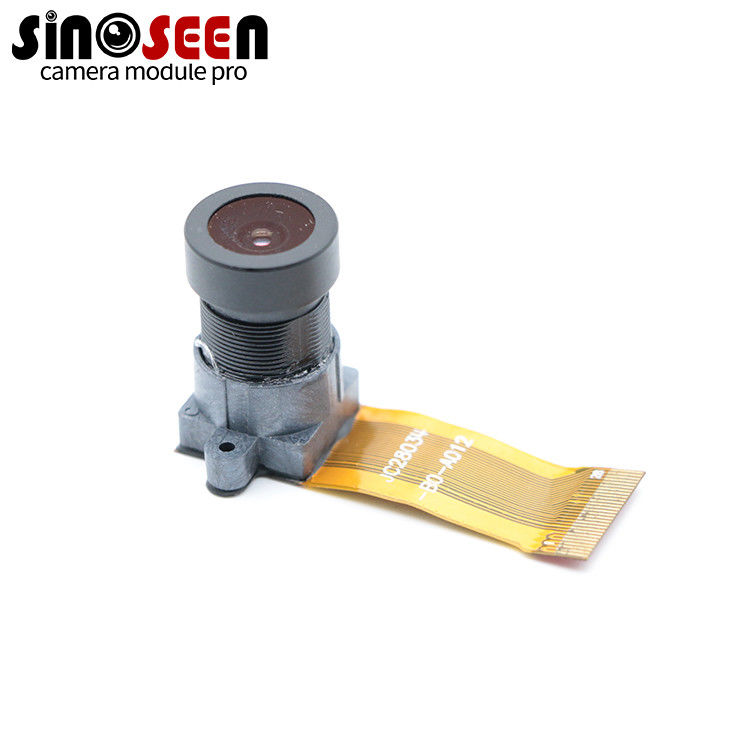

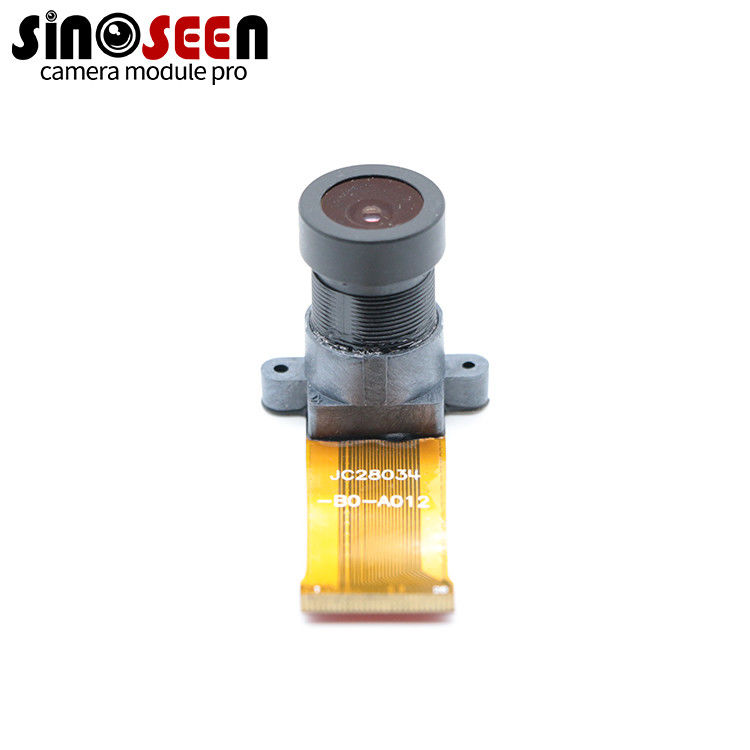

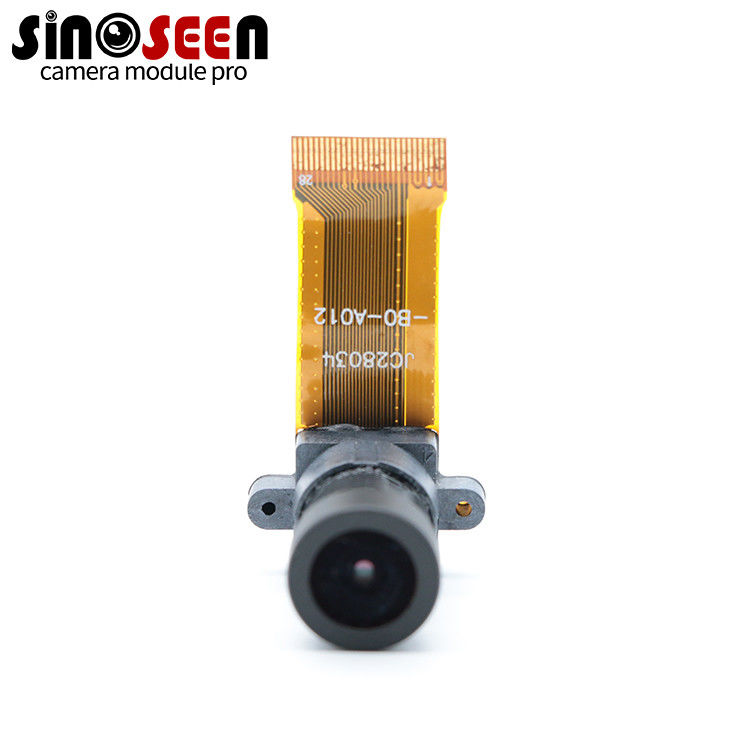

Ribbon Cable 5MP DVP OV5647 Camera Module Fixed Focus With IR 650nm Filter

Ribbon Cable Fixed Focus 5MP DVP Camera Module With Omnivision CMOS Sensor OV5647



This is a 5MP DVP camera module with OV5647 sensor from Omnivision Technology, the OV5647 is capable of recording 1080p video at 30 fps, but also 720p60 and 640x480 between 60 and 90 fps.



Below you can see a full breakdown of the resolutions and attributes that this camera supports at various sensor modes:



Mode

Resolution

Aspect Ratio

Framerate

FoV

Binning

1

1920x1080

16:9

1 - 30

Partial

None

2

2592x1944

4:3

1 - 15

Full

None

3

2592x1944

4:3

1/6 - 1

Full

None

4

1296x972

4:3

1 - 42

Full

2x2

5

1296x730

16:9

1 - 49

Full

2x2

6

640x480

4:3

42 - 60

Full

4x4

7

640x480

4:3

60 - 90

Full

4x4


The OV5647 DVP camera module is currently with a fixed focus lens, with IR 650nm filter, you can change it to auto focus, and choose 850nm IR filter or 940nm IR filter according to your actual needs. The module dimensions can also be customized.



Specification



Pixel Size

1.4μm x 1.4μm

Effective Pixels

2592*1944

Image Sensor

1/4"

Sensor Type

OV5647

Lens View

FOV85°(Optional),F/N(Optional)

TV Distortion

<1% (Optional)

Temperature(Operation)

0~60℃

Temperature(Storage)

-20~70℃

Dimension

Customizable

Ribbon Cable 5MP DVP OV5647 Camera Module Fixed Focus With IR 650nm Filter 0Ribbon Cable 5MP DVP OV5647 Camera Module Fixed Focus With IR 650nm Filter 1
