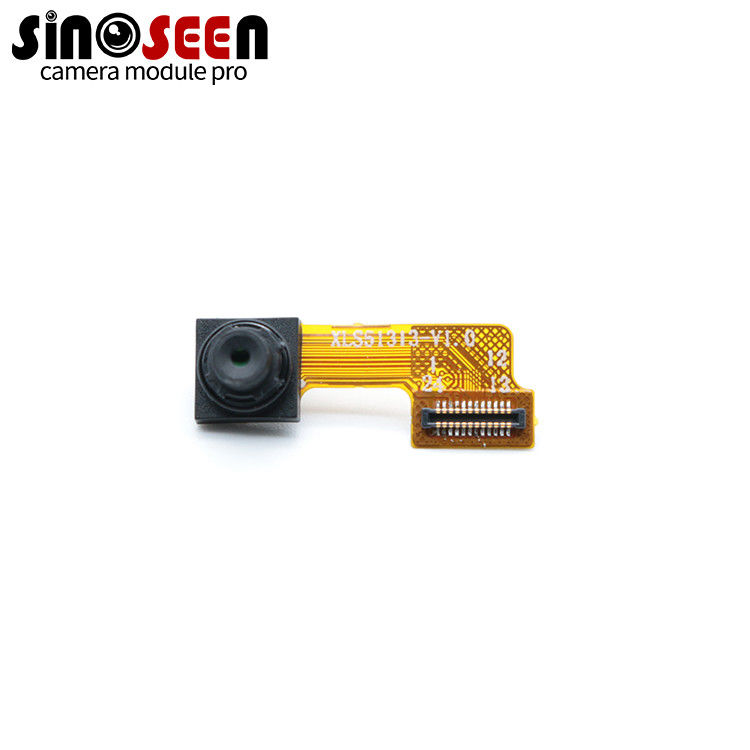

1MP 720P 60FPS Ultra Low Light Camera Module With JX-H42 CMOS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-51313-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | DVP Camera Module | Sensor: | 1/4" JX-H42 |
|---|---|---|---|
| Resolution: | 1MP 1292(H) X 732(V) | Dimensions: | Customizable |
| Lens FOV: | 72°(optional) | Focus Type: | Fixed Focus |
| Interface: | DVP | Feature: | HD |
| Highlight: | 60FPS Low Light Camera Module,60FPS 1MP Low Light Camera Module,JX-H42 Low Light Camera Module |
||
Product Description
1MP 720P 60FPS Ultra Low Light Camera Module With JX-H42 CMOS Sensor
1MP 720P 60FPS Low Light Sensitivity HD Fixed Focus DVP Camera Module With JX-H42 CMOS Sensor
Camera Module
This is a 1MP DVP camera module with JX-H42 sensor,JX-H42 is an HD CMOS image sensor designed with a superior 3.0µm pixel with excellent low-light sensitivity and low dark current performance. It features a 60fps native high definition (HD) 720p video capability for camera applications in PC multimedia, security, and entertainment devices.
The JX-H42 consists of a 1292x732 active pixel sensor (APS) array with an on-chip 10-bit ADC, programmable gain control (PGA), and correlated double sampling (CDS) to significantly reduce fixed pattern noise (FPN). The sensor also has many standard programmable and automatic functions. It has both the industry compliant DVP parallel and MIPI CSI2 serial interfaces. The external host controller can access this device through a standard serial interface.
You can difine the pinouts of the camera,you can decide the FPC length,you can also choose your lens to customize your own camera module.
Specification
|
Module No |
SNS-51313-V1 |
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
1292×732 |
|
Video output |
Raw Bayer10bit/8bit |
|
Image Sensor |
1/4" |
|
Sensor Type |
JX-H42 |
|
Lens view |
FOV72°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-30～85℃ |
|
Storage temperature |
0～60℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
