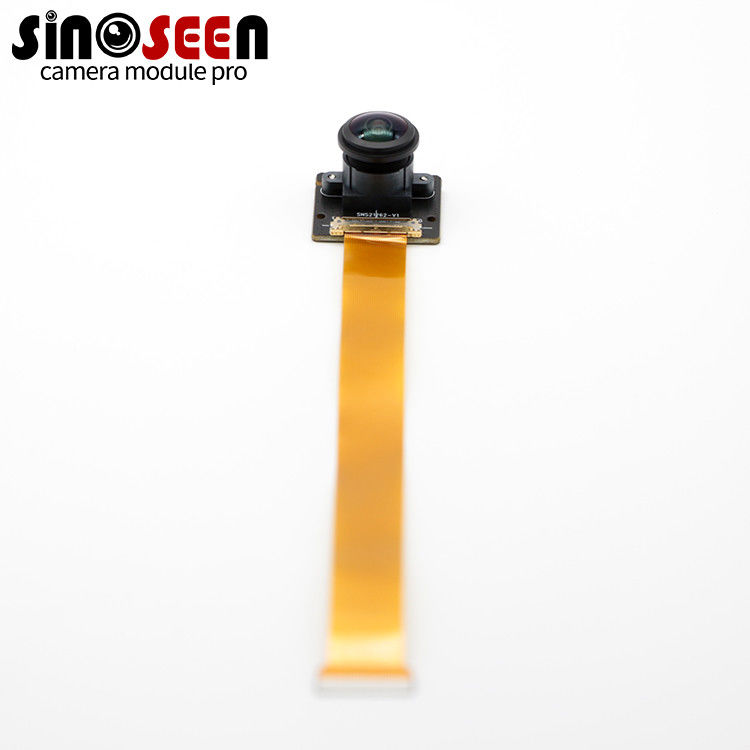

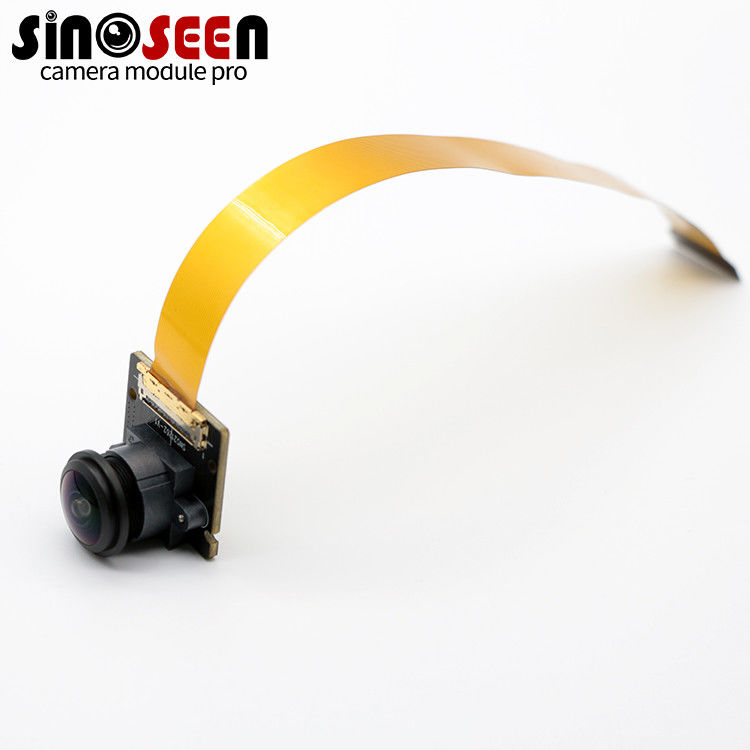

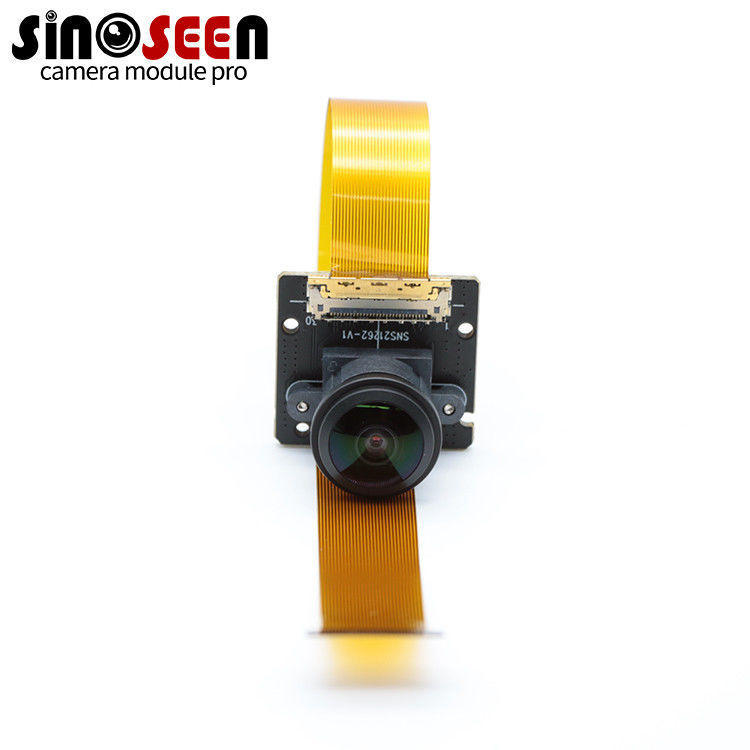

2MP 1080P 30FPS DVP Camera Module Wide Angle 160 Degrees With OV2718 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-21262-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | DVP Camera Module | Sensor: | 1/2.9" Omnivision OV2718 |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | Customizable |
| Lens FOV: | 160°(optional) | Focus Type: | Fixed Focus |
| Interface: | DVP | Feature: | HDR |
| High Light: | 2MP DVP Camera Module,30FPS DVP Camera Module,30FPS 1080P Camera Module |
||
Product Description
2MP 1080P 30FPS DVP Camera Module Wide Angle 160 Degrees With OV2718 Sensor
Low Power Consumption 2MP 1080P 30FPS Wide Angle 160 Degrees Fixed Focus HDR DVP Camera Module With OV2718 Sensor
This is a low power consumption DVP camera module with sensor OV2718 from OVT,it is 1920x1080P @ 30FPS,and has the following features:
support for image size:1920x1080,VGA,QVGA and any cropped size
high dynamic range
high sensitivity
low power consumption
image sensor processor functions:lens correction,defective pixel cancelation,and automatic black level correction
supported output formats:RAW
horizontal and vertical sub-sampling
SCCB for register programming
high speed serial data transfer with MIPI CSI-2/LVDS
parallel 12-bit DVP output
external frame synchromization capability
embedded temerature sensor
one time programmable(OTP) memory
Currently the camera module is with a wide angle lens of DFOV 160 degrees,if you need any other angles,we can just change the lens for you.
Specification
Module No | SNS-21262-V1 |
Pixel Size | 2.8μm x 2.8μm |
Effective Pixels | 1920×1080 |
Video output | Raw Bayer10bit/8bit |
Active Array Size Video Rate | 1080P@30FPS |
Image Sensor | 1/2.9" |
Sensor Type | Omnivision OV2718 |
Lens view | FOV160°(optional),F/N(optional) |
TV Distortion | <1% |
AEC | Support |
AEB | Support |
AGC | Support |
Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
Operating temperature | -40～80℃ |
Storage temperature | -30～85℃ |
Dimensions | Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
