0.3MP Fixed Focus DVP Camera Module CMOS Image Sensor For Notebook
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-11189-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | DVP Camera Module | Sensor: | 1/10" GalaxyCore GC032A |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | DVP | Feature: | Low Power |
| High Light: | GC032A DVP Camera Module,0.3MP DVP Camera Module,GC032A notebook camera module |
||
Product Description
0.3MP Fixed Focus DVP Camera Module CMOS Image Sensor For Notebook
0.3MP Fixed Focus DVP Camera Module With GalaxyCore GC032A CMOS Image Sensor
Fixed Focus DVP Camera Module
This is a 0.3MP fixed focus DVP camera module with GalaxyCore GC032A CMOS image sensor.The GC032A features 640H x 480V resolution with 1/10-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor.
The full scale integration of high-performance and low-power functions makes the GC032A best fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications.
The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB(Auto White Balance) control. It provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor. It’s also offer DVP and SPI interface with BB.

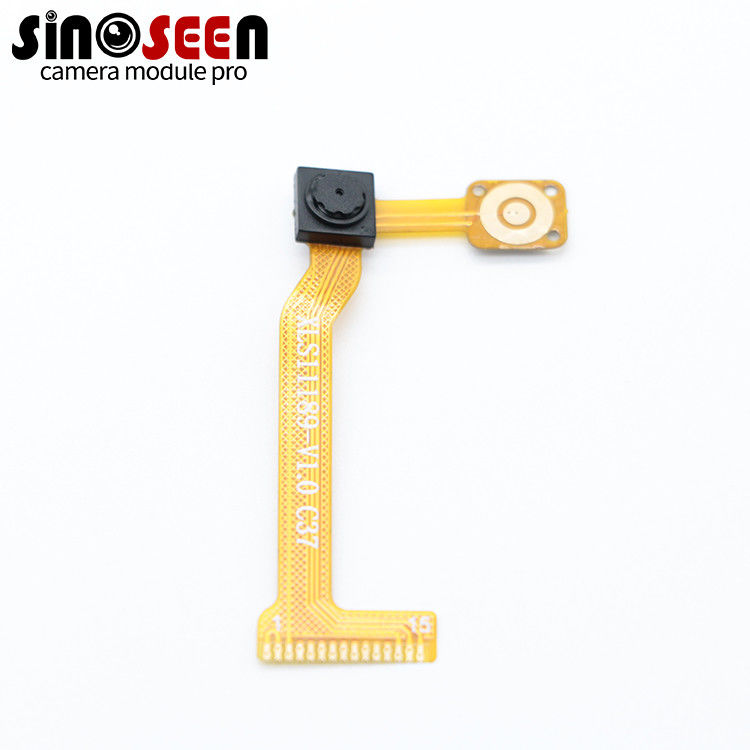

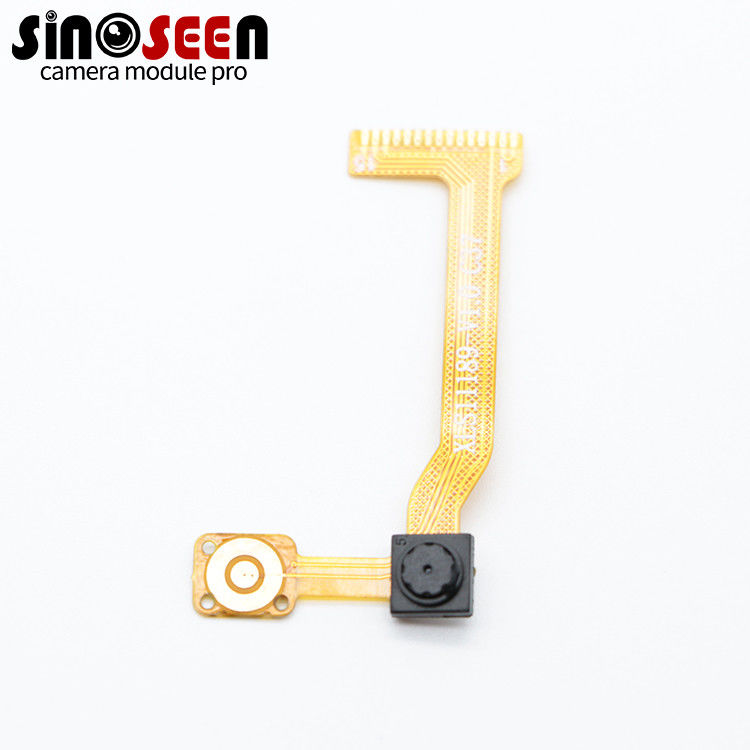

It widely used in Application like Cellular Phone Cameras,Notebook and desktop PC cameras,PDAs,Toys,Digital still cameras and camcorders,Video telephony and conferencing equipments,Security systems,Industrial and environmental systems.And this one you see in the picture is for mobile phone cameras
Specification
|
Module No |
SNS-11189-V1.0 |
|
Pixel Size |
2.2μm x 2.2μm |
|
Effective Pixels |
640×480 |
|
Video output |
Raw Bayer10bit/8bit |
|
Image Sensor |
1/10" |
|
Sensor Type |
GalaxyCore GC032A |
|
Lens view |
FOV80°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:2.7~3.0V DOVDD:1.7~3.0V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right sensor+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
