IMX586 Sensor 48MP HDR USB Camera Module 8000*6000 FPC+PCB Design
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS481742-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | Omnivision IMX586 |
|---|---|---|---|
| Resolution: | 48MP 8000*6000 30fps | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | FF |
| Interface: | USB | Feature: | Low Light Performance |
| High Light: | HDR USB Camera Module,48MP USB Camera Module,IMX586 Sensor Camera Module |
||
Product Description

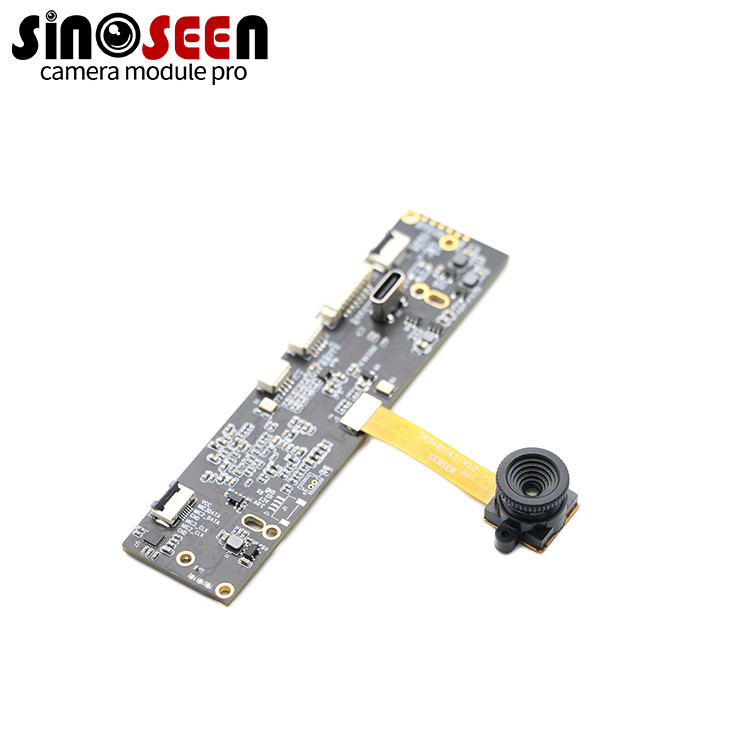

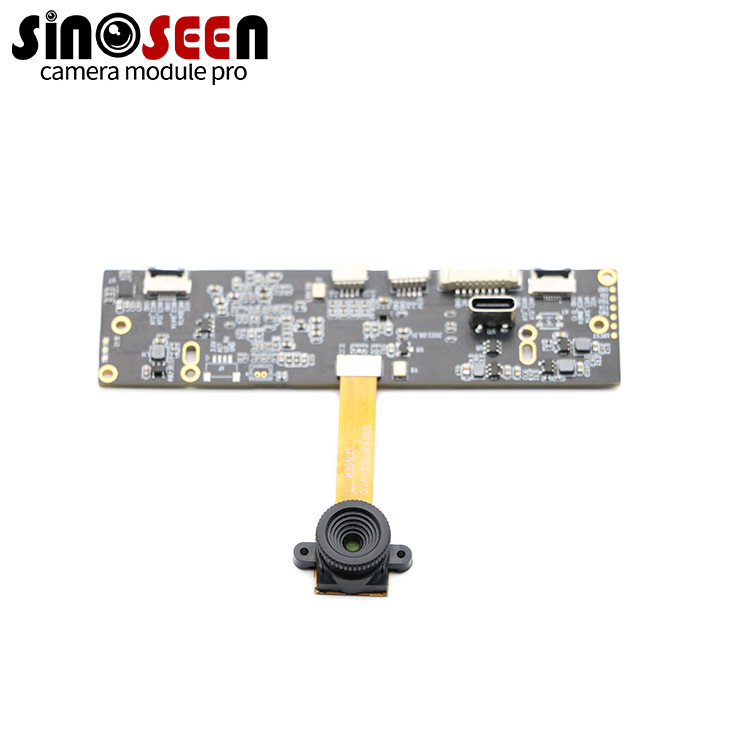

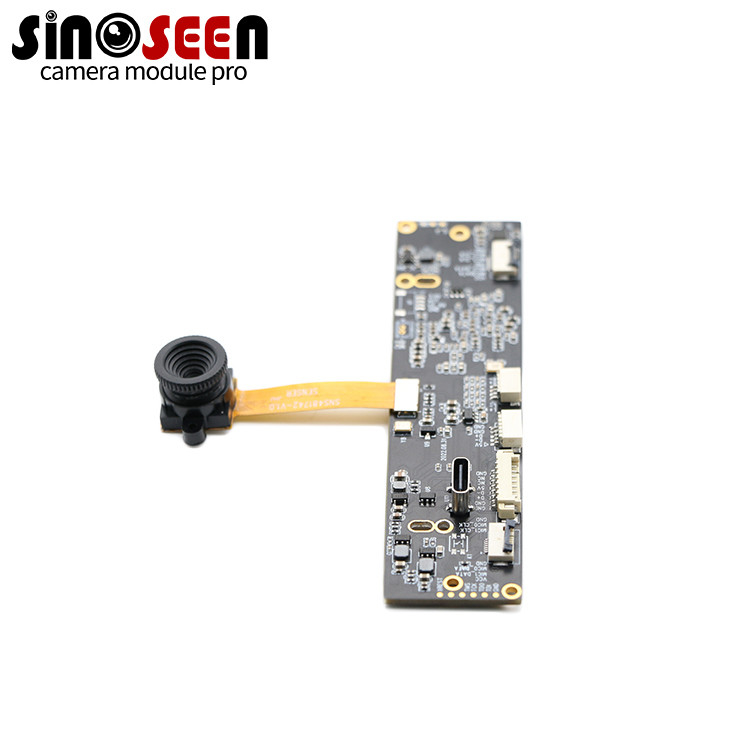

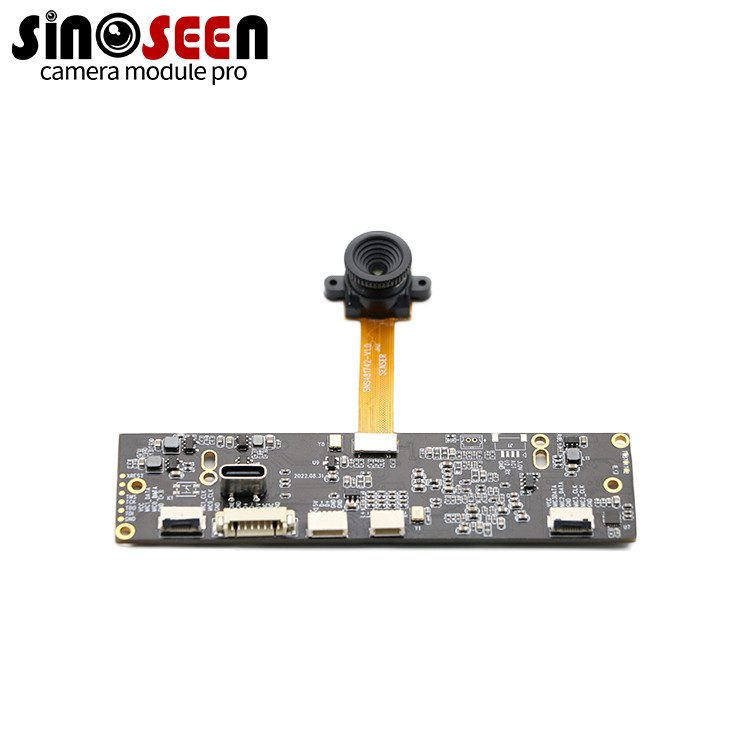

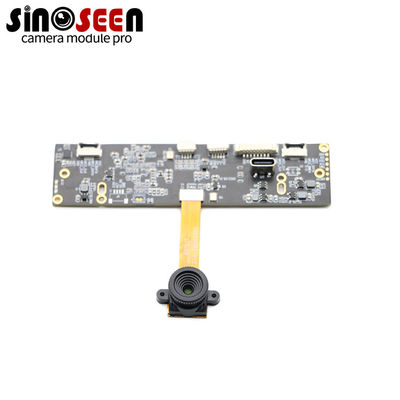

IMX586 sensor 48MP HDR USB camera module 8000*6000 FPC+PCB design
48MP Camera Module IMX586 Sensor
With 8000x6000 resolution, this camera module is a high-resolution camera system designed for various imaging applications. It uses the IMX586 image sensor developed by Sony, known for its excellent image quality and advanced imaging capabilities. The camera module supports a resolution of 48 megapixels, which equates to an impressive resolution of 8000x6000 pixels. This high resolution captures extremely detailed and sharp images with rich visual information. The mod's HDR (High Dynamic Range) feature enhances the camera module's ability to capture a wide range of tones and details in bright and dark areas of the scene. This results in a more balanced and visually appealing image, especially in challenging lighting conditions.
The FPC+PCB design of the camera module refers to the flexible printed circuit (FPC) and printed circuit board (PCB) used in its construction. The design ensures reliable and efficient communication between the camera module and the host device, providing stable performance and high-quality image transmission. Including photography, video recording, live streaming and other imaging tasks that require exceptional image quality and performance.
Specification
|
Module No |
SNS481742-V1.0 |
|
Pixel Size |
0.8um*0.8um |
|
Effective Pixels |
48MP 8000*6000 30fps |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
Full resolution@30FPS,1080P@60FPS |
|
Sensor Type |
Omnivision IMX586 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
