Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
HSJ80-GM258FD-V1.0

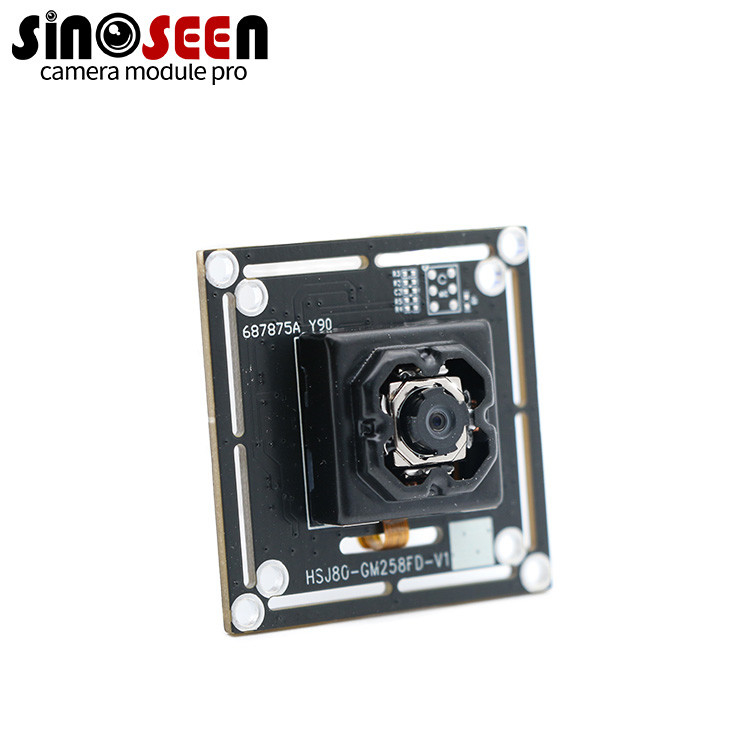

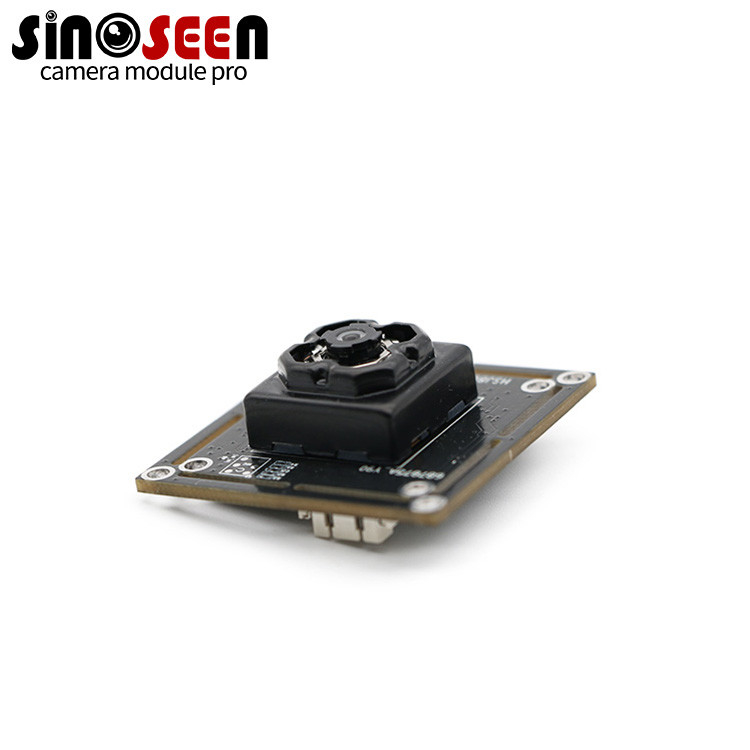

HDR 13MP Camera Module
The camera module uses IMX258 image sensor. The IMX258 is a 13 megapixel (13MP) CMOS sensor that delivers high-resolution images with good overall image quality. The camera module has an autofocus mechanism that automatically adjusts the focus based on subject distance. This ensures that the captured image is clear and sharp, even if the subject or camera position changes. Autofocus is particularly useful when the distance between the camera and the subject changes or when capturing objects at different depths. The camera module is equipped with a USB interface for communication with the host device. The USB interface allows for easy plug-and-play connectivity, making it compatible with a variety of devices, including computers, laptops, and other USB-enabled devices.
|
Pixel Size |
1.12 μm (H) × 1.12 μm (V) |
|
Effective Pixels |
4224 (H) × 3144 (V) |
|
Image Sensor |
1/3.06 |
|
Sensor Type |
IMX258 |
|
Operating temperature |
-20 to ~70 ˚C |
|
Storage temperature |
-30 to ~80 ˚C |
|
Lens view |
FOV80°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
