Samsung S5K3L2 Sensor 13MP Camera Module Auto Focus For Mobile Phone

Samsung S5K3L2 Sensor 13MP Camera Module Auto Focus For Mobile Phone

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-131168-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: MIPI Camera Module Sensor: Samsung S5K3L2
Resolution: 13MP 4208(H) X 3120(V) Dimensions: Customizable
Lens FOV: 90°(optional) Focus Type: Auto Focus
Interface: MIPI Feature: Low Light Performance
High Light:

60FPS 13MP Camera Module

,

30FPS 13MP Camera Module

,

30FPS 13MP rear camera module

Product Description

Samsung S5K3L2 Sensor 13MP Camera Module Auto Focus For Mobile Phone

13MP Mobile Phone Auto Focus Rear Camera Module With Samsung S5K3L2



13MP Camera Module Auto Focus

This is a mobile phone's rear camera module with Samsung sensor S5K3L2, S5K3L2 is a highly integrated 13 megabit pixel camera chip, including CMOS image sensor (CIS) data interface. It is developed by the SAMSUNG CMOS image sensor process for imaging applications to realize a high-efficiency, low-power back-illuminated (BSI) light sensor with a structure. The sensor is composed of 4208×3120 active pixels and meets the 1 inch / 3.06 inch optical format. CIS has an on-chip 10-bit ADC array that digitizes the pixel output, and also has an on-chip correlated double sampling (CDS) function, which can greatly reduce fixed pattern noise (FPN). It combines on-chip camera functions such as data packing, data formatting, image compression, shading correction and serial transmission using MIPI. It is programmed through the CCI serial interface. S5K3L2XX is suitable for low power consumption camera modules with 2.8V/1.2V power supply.

We have customized front and rear camera modules for many mobile phones, and have very rich experience. Both in structure and function, we can meet your needs.





Specification

Module No

SNS-113128-V1.1

Pixel Size

3.75μm x 3.75μm

Effective Pixels

13MP 4208(H) x 3120(V)

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

Full resolution@30FPS,1080P@60FPS

Sensor Type

Samsung S5K3L2

Lens view

FOV90°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

0~60℃

Storage temperature

-20~70℃

Dimensions

Customizable

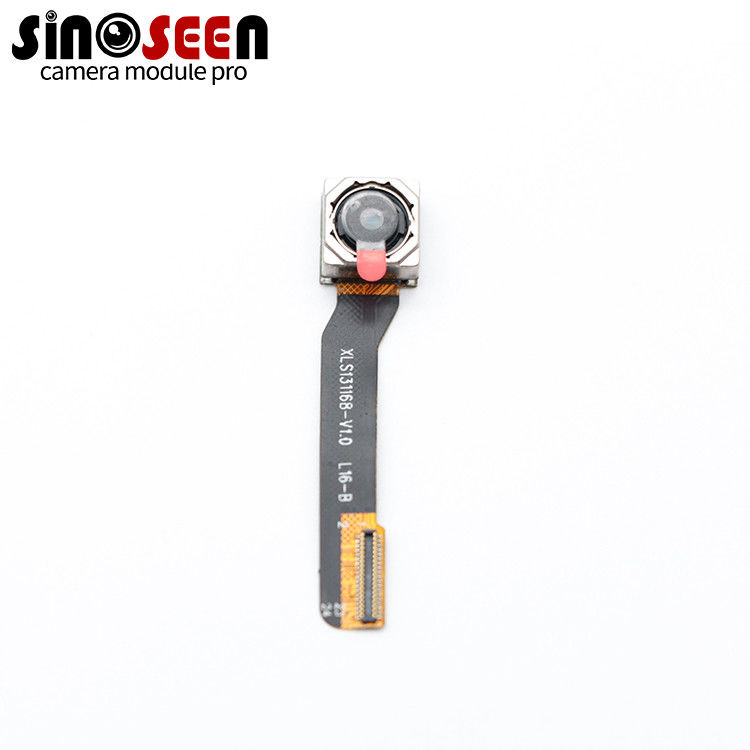

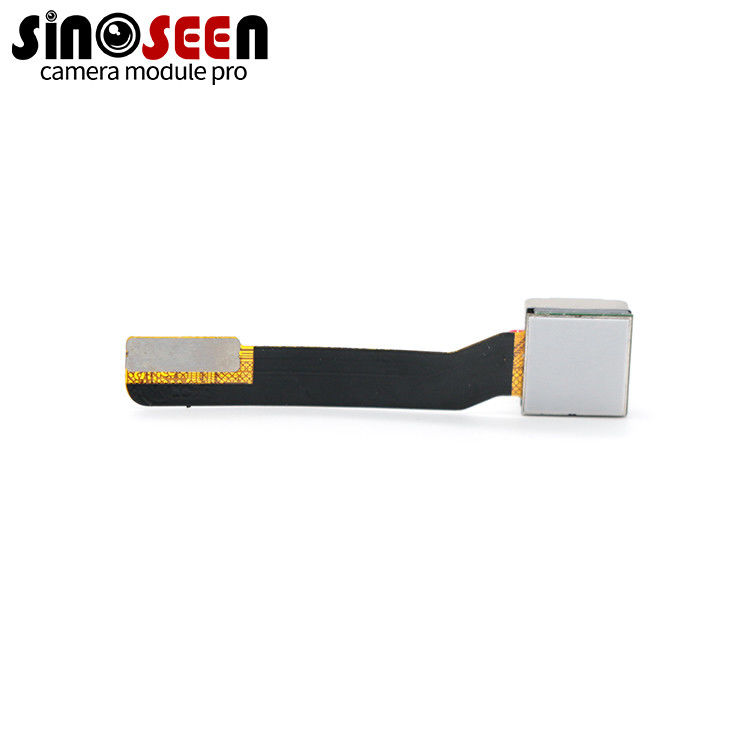

Samsung S5K3L2 Sensor 13MP Camera Module Auto Focus For Mobile Phone 0Samsung S5K3L2 Sensor 13MP Camera Module Auto Focus For Mobile Phone 1

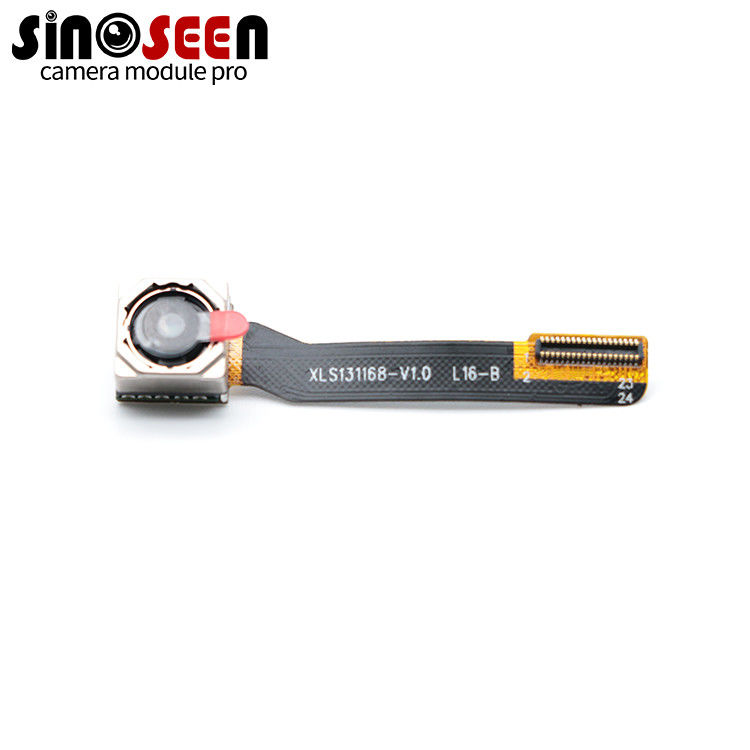

Samsung S5K3L2 Sensor 13MP Camera Module Auto Focus For Mobile Phone 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
