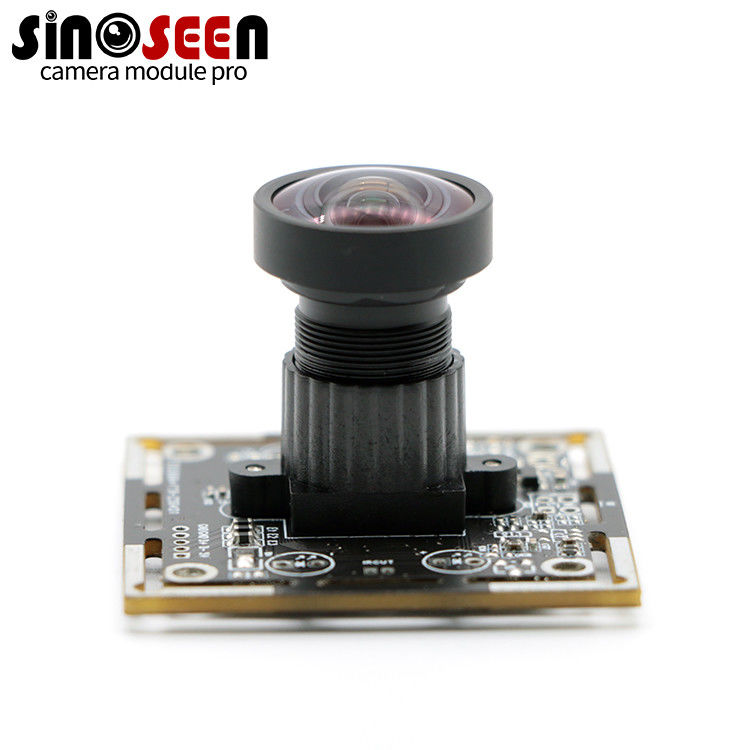

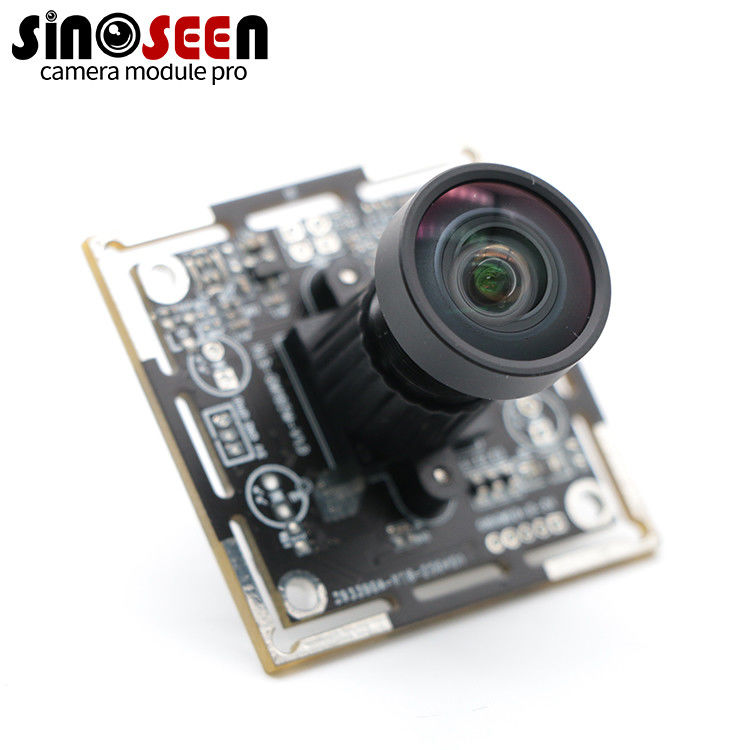

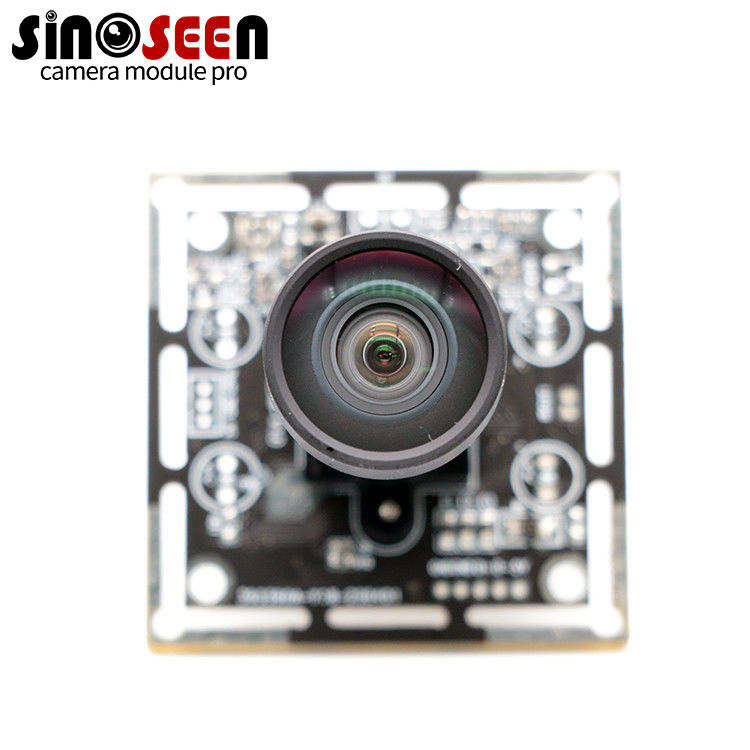

ODM Color Image Wide Angle Lens 13MP Camera Module Usb 2.0 HDR
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-13MP-IMX258-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.06" SONY IMX258 |
|---|---|---|---|
| Resolution: | 13MP 4208*3120 | Dimensions: | Customizable |
| Lens FOV: | 120°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | IMX258 13MP Camera Module,4K 13MP Camera Module,13MP imx258 camera module |
||
Product Description
ODM Color Image Wide Angle Lens 13MP Camera Module Usb 2.0 HDR
13MP HDR USB2.0 Color Image Wide Angle Lens Camera Module With IMX258 SONY CMOS
This is a 13MP USB camera module with IMX258 from SONY. The IMX258 is a diagonal 5.867mm (1/3.06") 13 megapixel CMOS active pixel type stacked image sensor with a square pixel array. It uses Exmor RS™ Technology, high-speed image capture can be achieved through column-parallel A/D converter circuits, and high-sensitivity and low-noise images can be achieved through the back-illuminated imaging pixel structure (compared to conventional CMOS image sensors). Using R, G and B pigment primary color mosaic Filter. By introducing spatially variable exposure technology, high dynamic range of still pictures and movies can be realized. It is equipped with a variable integration time for the electronic shutter. It operates with three power supply voltages: analog for input/output interfaces 2.7 V, digital 1.2 V and digital 1.8 V, and achieve low power consumption. In addition, this product is also designed for cellular phones and tablet computers.
Features:
◆ Back-illuminated and stacked CMOS image sensor Exmor RSTM
◆ Phase detection pixel data output, used for phase detection auto focus
◆ High dynamic range (HDR) mode with raw data output.
◆ High signal-to-noise ratio (SNR).
◆ Full resolution @ 30fps (normal/HDR). 4K2K @ 30fps (normal / HDR) 1080p @ 60fps (normal)
◆ Output raw10/8 video format.
◆ Pixel combined reading and V sub-sampling function.
◆ Independent flip and mirror.
◆ CSI-2 serial data output (mipi 2 channels/4 channels, maximum 1.3 Gbps/channel, in line with D-PHY specification version 1.1)
◆ 2-wire serial communication.
◆ Two PLLs for independent clock generation for pixel control and data output interface.
◆ Dynamic defect pixel correction.
◆ Quick mode conversion. (Instant)
◆ Dual sensors run synchronously.
◆ Users use 4K bit OTP ROM.
◆ Built-in temperature sensor
Specification
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
4208*3120 |
|
Image Sensor |
1/3.06" |
|
Sensor Type |
SONY IMX258 |
|
Lens View |
FOV120°(Optional),F/N(Optional) |
|
TV Distortion |
<1% (Optional) |
|
Temperature(Operation) |
0～60℃ |
|
Temperature(Storage) |
-20～70℃ |
|
Dimension |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
