13MP Autofocus Camera Module IMX258 Sensor USB Interface
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | HSJ80-GM258FD-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 200 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | 13mp Camera Module | Sensor: | 1/3.06" SONY IMX258 |
---|---|---|---|
Resolution: | 13MP 4224 (H) * 3144 (V) | Dimensions: | (customizable) |
Lens FOV: | 80°(optional) | Focus Type: | AF |
Interface: | USB2.0 | Feature: | HD |
Highlight: | 13MP Autofocus Camera Module,USB IMX258 Camera Module,Autofocus IMX258 Camera Module |
Product Description

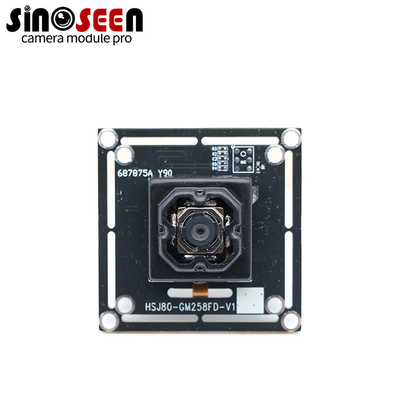

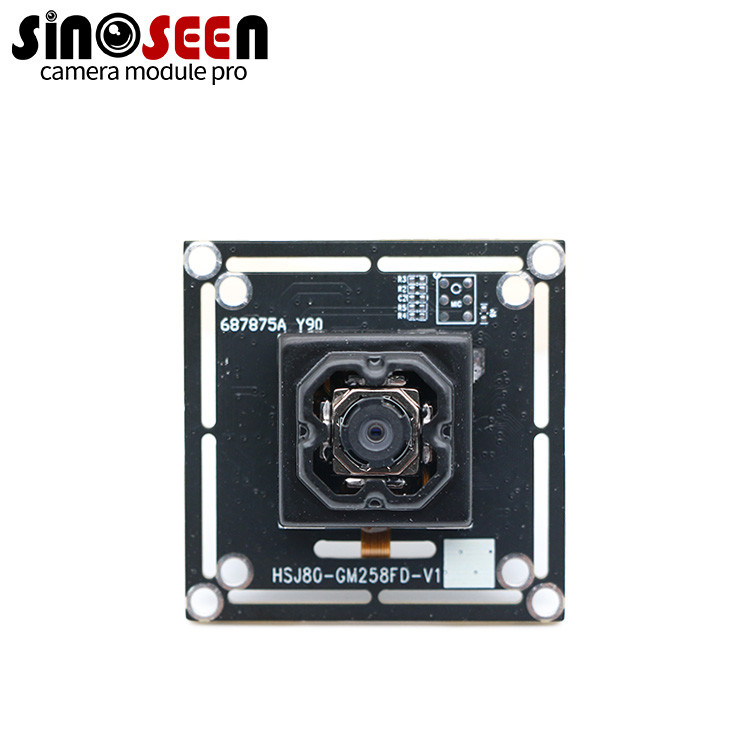

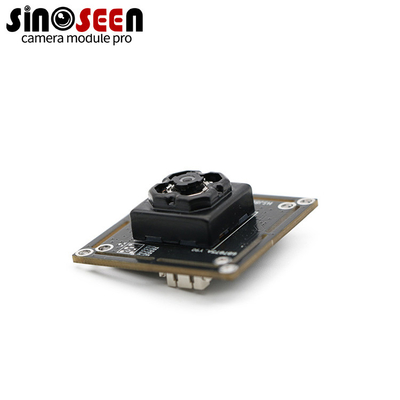

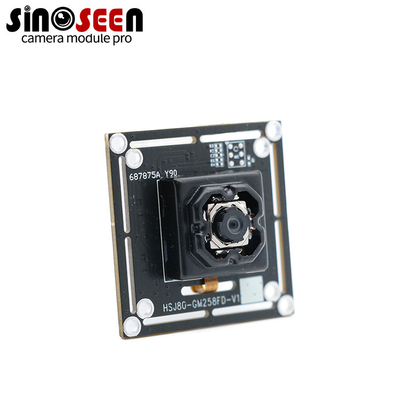

IMX258 Sensor 13MP USB Interface Autofocus Camera Module
HDR 13MP Camera Module
The camera module uses IMX258 image sensor. The IMX258 is a 13 megapixel (13MP) CMOS sensor that delivers high-resolution images with good overall image quality. The camera module has an autofocus mechanism that automatically adjusts the focus based on subject distance. This ensures that the captured image is clear and sharp, even if the subject or camera position changes. Autofocus is particularly useful when the distance between the camera and the subject changes or when capturing objects at different depths. The camera module is equipped with a USB interface for communication with the host device. The USB interface allows for easy plug-and-play connectivity, making it compatible with a variety of devices, including computers, laptops, and other USB-enabled devices.
Pixel Size |
1.12 μm (H) × 1.12 μm (V) |
Effective Pixels |
4224 (H) × 3144 (V) |
Image Sensor |
1/3.06 |
Sensor Type |
IMX258 |
Operating temperature |
-20 to ~70 ˚C |
Storage temperature |
-30 to ~80 ˚C |
Lens view |
FOV80°(optional),F/N(optional) |
TV Distortion |
<1% |
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
Dimensions |
Customizable |
