Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-USB214-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/3.06" SONY IMX214
Resolution: 13MP (4208*3120) Dimensions: 19.25mmx8.5mm,(customizable)
Lens FOV: 120°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HD
High Light:

USB2.0 13MP Camera Module

,

ODM 13MP Camera Module

,

IMX214 HD Camera Module

Product Description

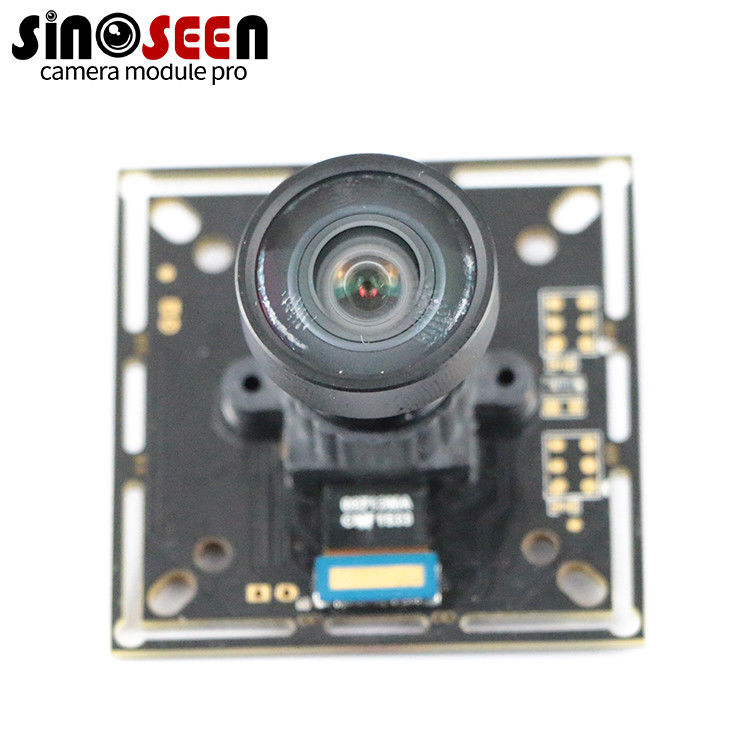

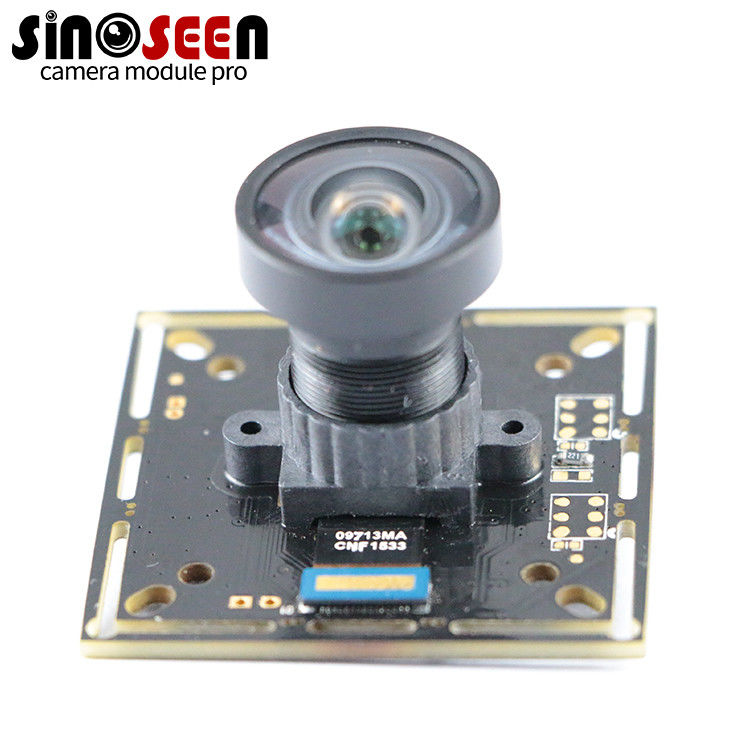

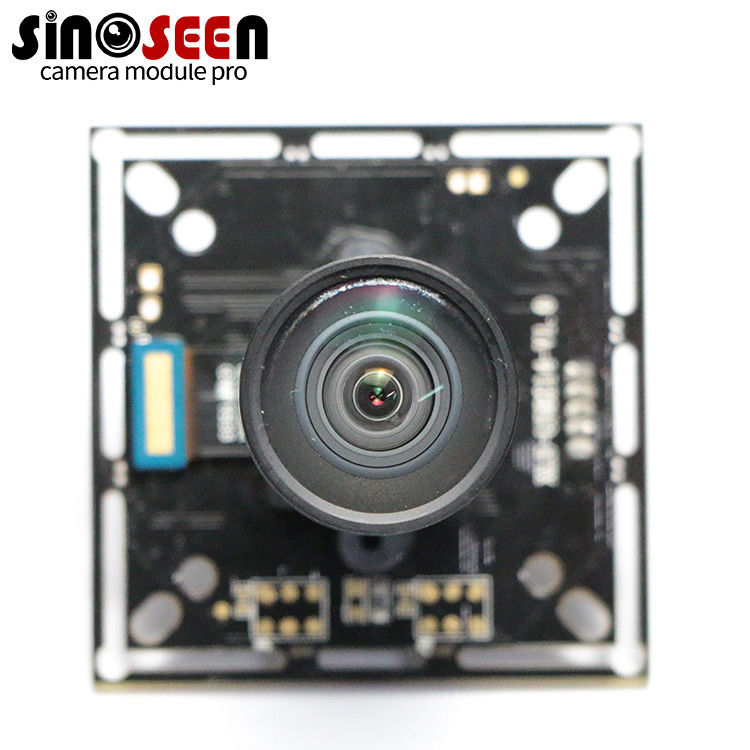

Sony IMX214 Sensor 13MP Camera Module HD Wide Angle Fixed Focus

Sinoseen Good Price 13MP Wide Angle Fixed Focus Hd USB Camera Module With Sony IMX214 Sensor



13MP Camera Module
This is a special USB camera module, the chip is SONY IMX214. Maybe you will be more curious, why it is a USB camera module, but it uses a MIPI camera module. Now, let me solve your question, because sometimes there are many finished camera modules on the market. In order to solve the financial pressure, or sometimes the market is not good, they will deal with these finished modules at preferential prices. Sometimes it is even cheaper than the price of the chip itself.
Therefore, if you need a high-resolution USB camera module and hope it is cheap enough, then this solution will be your best choice. Of course, such finished modules are not always available.



Specification

Pixel Size

1.4μm x 1.4μm

Effective Pixels

4208*3120

Image Sensor

1/3.06"

Sensor Type

SONY IMX214

Lens View

FOV120°(Optional),F/N(Optional)

TV Distortion

<1% (Optional)

Temperature(Operation)

0~60℃

Temperature(Storage)

-20~70℃

Dimension

19.25*8.5mm (Customizable)

Sony IMX214 Sensor 13MP Camera Module HD Wide Angle Fixed Focus 0Sony IMX214 Sensor 13MP Camera Module HD Wide Angle Fixed Focus 1


Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
