Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-131326-V1.0
Mobile Phone Rear Camera Module 4224x3136 Auto Focus MIPI Interface
13MP Auto Focus Mobile Phone Rear MIPI Interface Camera Module With HDR Fuction
Camera Module

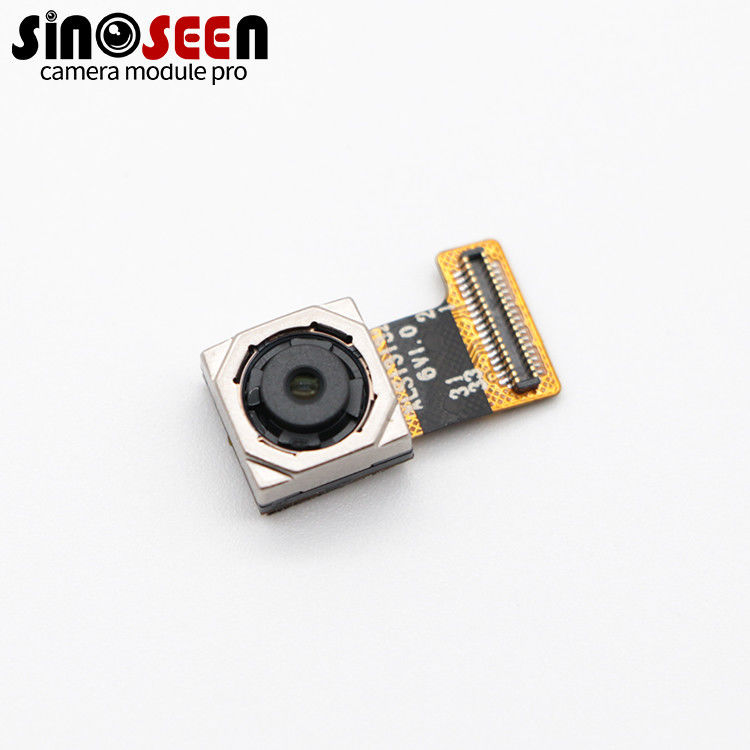

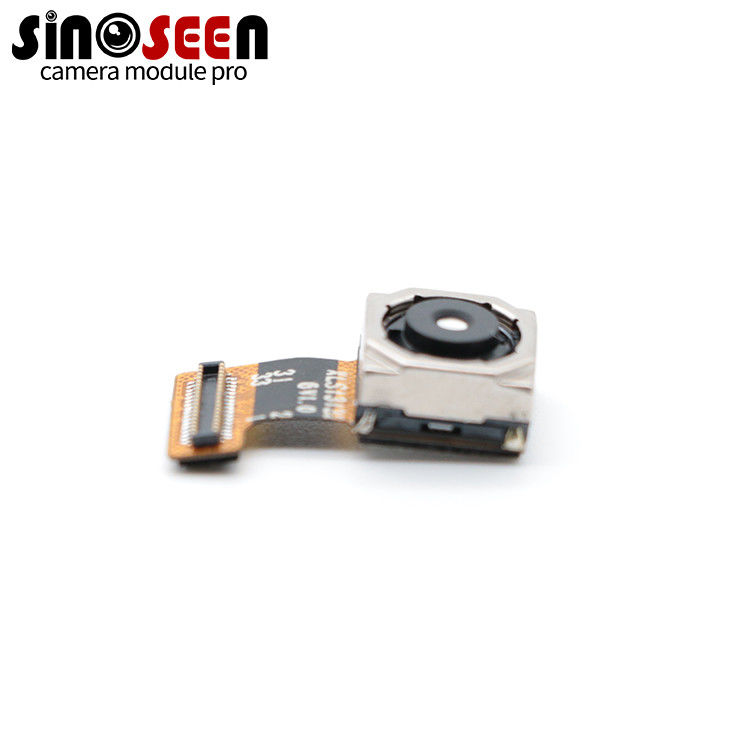

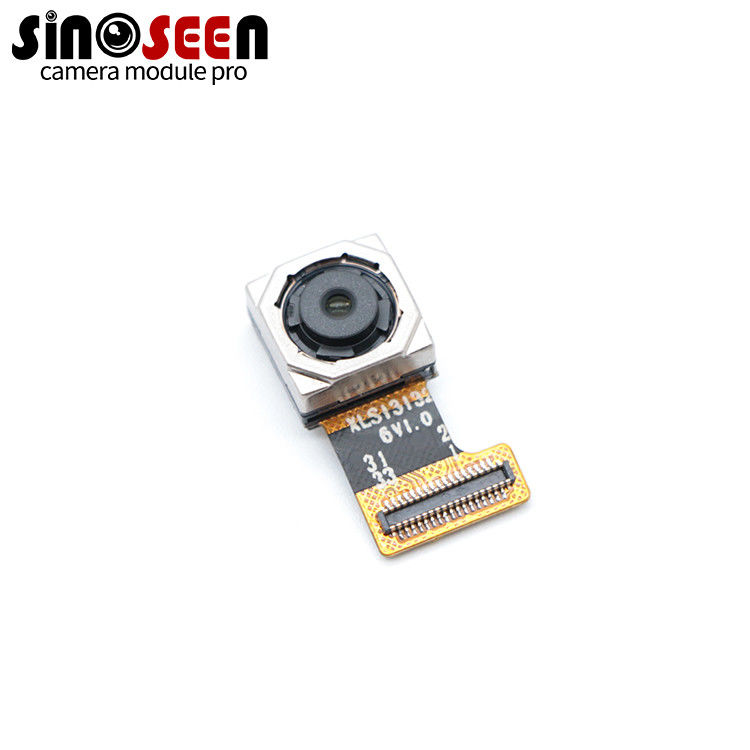

This is a 13MP MIPI camera module customized specifically for the rear camera of a mobile phone. It uses the OV13853 chip from Omnivision and is paired with an 8.5x8.5mm autofocus lens. The length of the FPC and the type of the connector are customized according to the needs of customers.
I have to emphasize again that we have very rich experience in the field of mobile phones and tablet cameras. If you just need to customize the camera module for your mobile phone or tablet, then please choose us without hesitation. We will provide you with the most suitable advice and the most perfect service.
Of course, in addition to mobile phones and flat-panel camera modules, we have also done many projects for other products that require cameras. Whether it is USB or MIPI, DVP, we can choose the best solution for you.
Specification
|
Module No |
SNS-131326-V1.1 |
|
Pixel Size |
1.12μm x 1.12μm |
|
Effective Pixels |
13MP 4224(H) x 3136(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
Full resolution@30FPS,1080P@60FPS |
|
Sensor Type |
Omnivision OV13853 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-30～80℃ |
|
Storage temperature |
0～60℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
