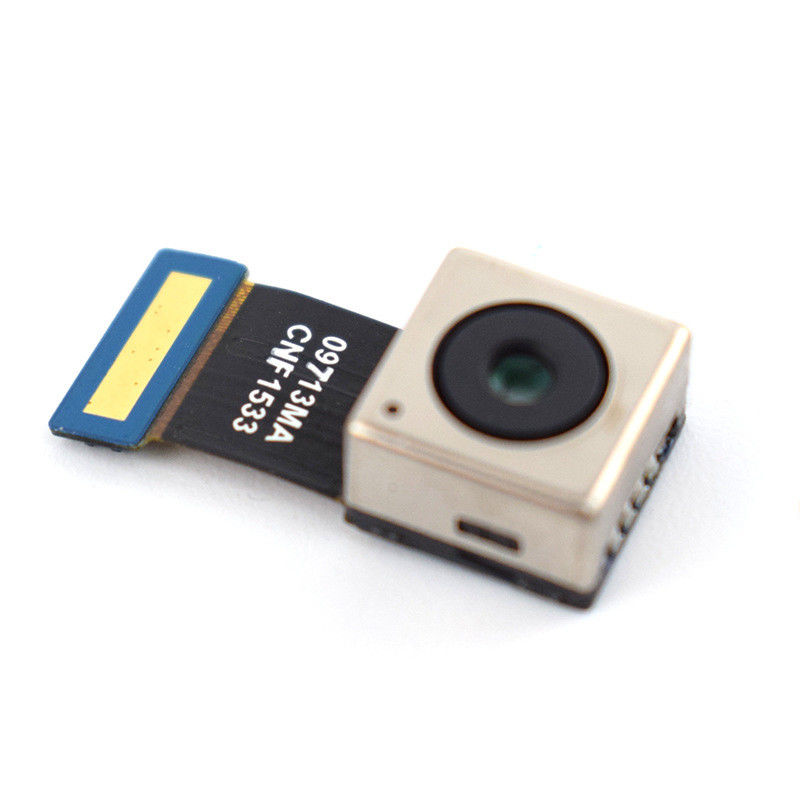

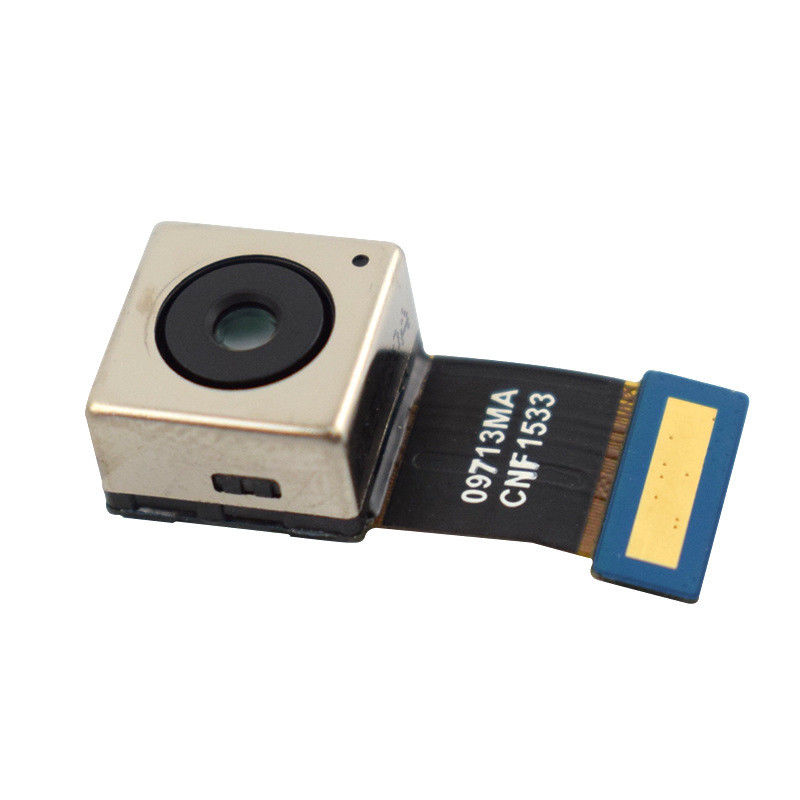

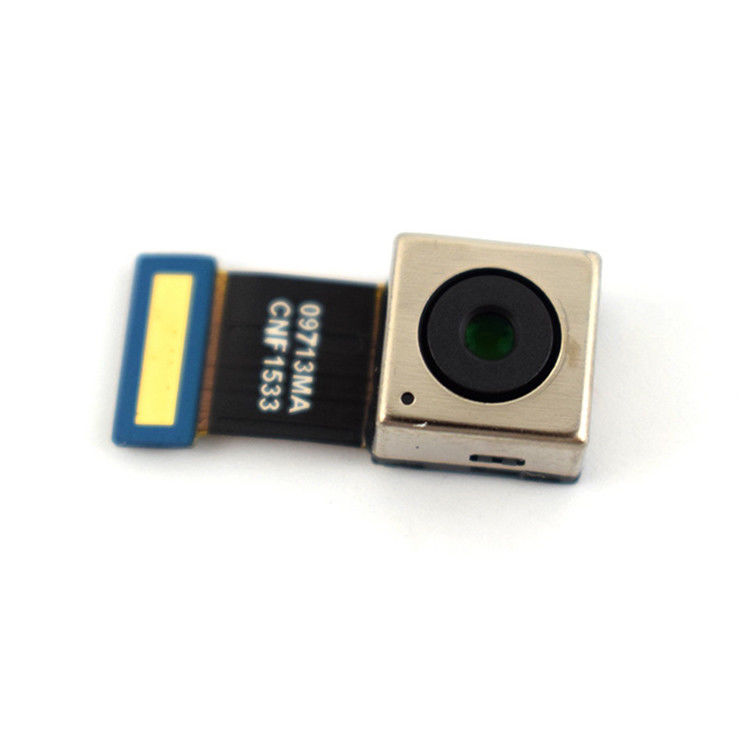

Fast Autofocus Wifi 13MP Camera Module Stereo With Sony IMX214 Sensor
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-CNF1355 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | MIPI Camera Module | Sensor: | 1/3.06"SONY IMX214 |
---|---|---|---|
Resolution: | 13MP (4208*3120) | Dimensions: | 19.25mmx8.5mm,(customizable) |
Lens FOV: | 80°(optional) | Focus Type: | Auto Focus |
Interface: | MIPI CSI2 | Feature: | HD |
Highlight: | IMX214 13MP Camera Module,MIPI 13MP Camera Module,IMX214 Wifi Camera Module |
Product Description
Fast Autofocus Wifi 13MP Camera Module Stereo With Sony IMX214 Sensor
Good Quality 13mp Fast Autofocus Wifi Hd Stereo MIPI Camera Module with Sony IMX214 sensor
This is a MIPI camera module with Sony IMX214.IMX214 is a diagonal 5.892mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor-RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor)through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is emproyed.By introducing spacially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.7 V,digital 1.0 V and 1.8 V for input/output interface and achieves low power consumption. IMX214 is designed for use in cellular phones or tablet devices.
Functions and Features
◆ Back-illuminated and stacked type CMOS image sensor “Exmor-RSTM”
◆ Single Frame High Dynamic Range (HDR) with equivalent full pixels.
◆ High signal to noise ratio (SNR).
◆ Full resolution @30fps (Nornmal / HDR). 4K2K @30fps (Normal / HDR) 1080p @60fps (Normal / HDR)
◆ Output video format of RAW10/8, RAW14/12(HDR).
◆ Pixel binning readout and H/V sub-sampling function
◆ Analog cropping, digital cropping and scaling function.
◆ Independent flipping and mirroring.
◆ CSI-2 serial data output (MIPI-2Lane/-4Lane selectable)
◆ 2-wire serial communication.
◆ Two PLLs for independent clock generation for pixel control and data output interface.
◆ Advanced Noise Reduction.
◆ Dynamic Defect Pixel Correction (1Dementional / 2Dementional)
◆ Zero shutter lag.
◆ Power-on reset function
◆ Dual sensor synchronization operation.
◆ 8K bit of OTP ROM for users.
◆ Built-in temperature sensor
For MIPI camera module,you just need to specifiy a sensor you want to use and let us know your requirements like FPC dimensions,pinouts,Lens FOV.We will have our engineer make a drawing based on all your requirements,after you confirmed,we will finish the rest.
Pixel Size |
1.4μm x 1.4μm |
Effective Pixels |
4208*3120 |
Image Sensor |
1/3.06" |
Sensor Type |
IMX214 |
Lens View |
FOV80°(Optional),F/N(Optional) |
TV Distortion |
<1% (Optional) |
Temperature(Operation) |
0~60℃ |
Temperature(Storage) |
-20~70℃ |
Dimension |
19.25*8.5mm (Customizable) |
