Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-5MP-OS05A10-M1

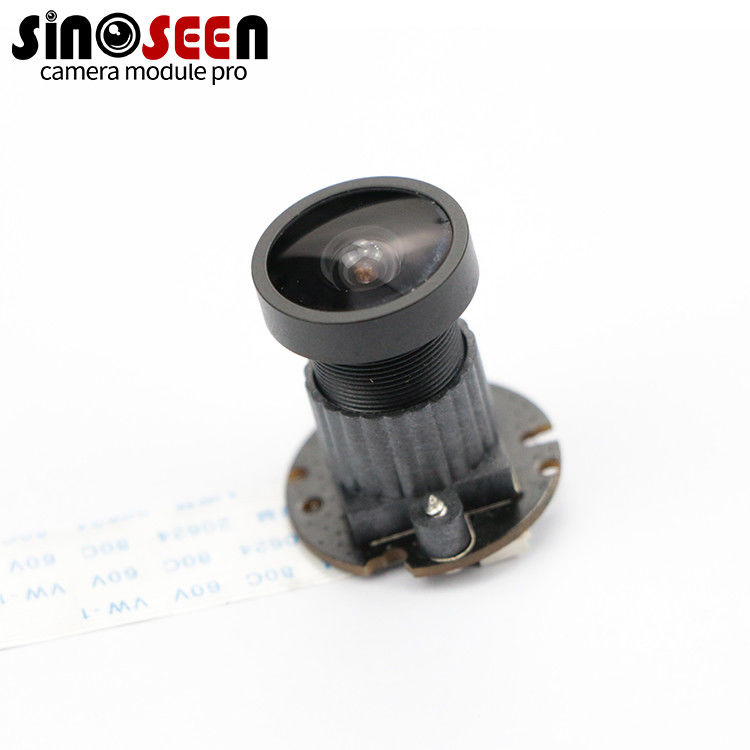

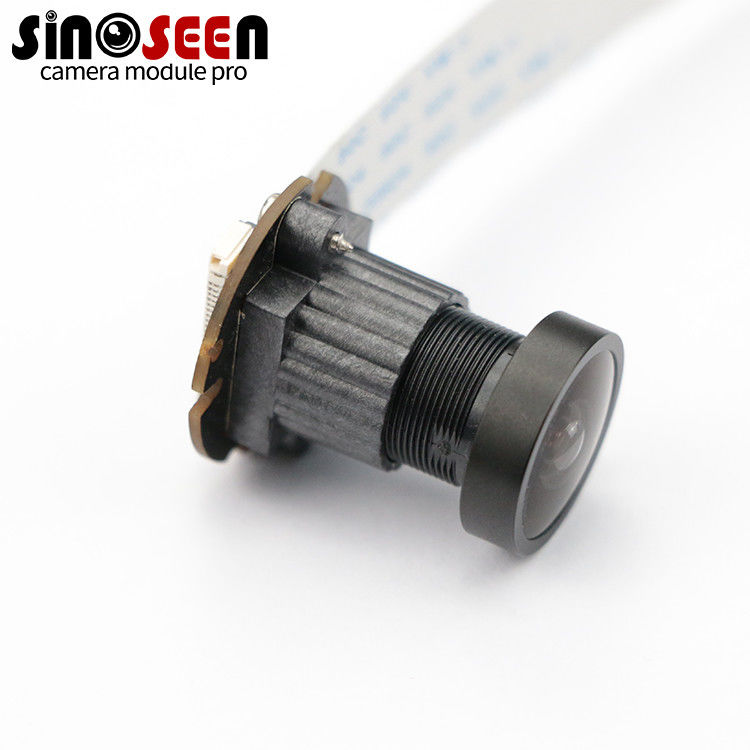

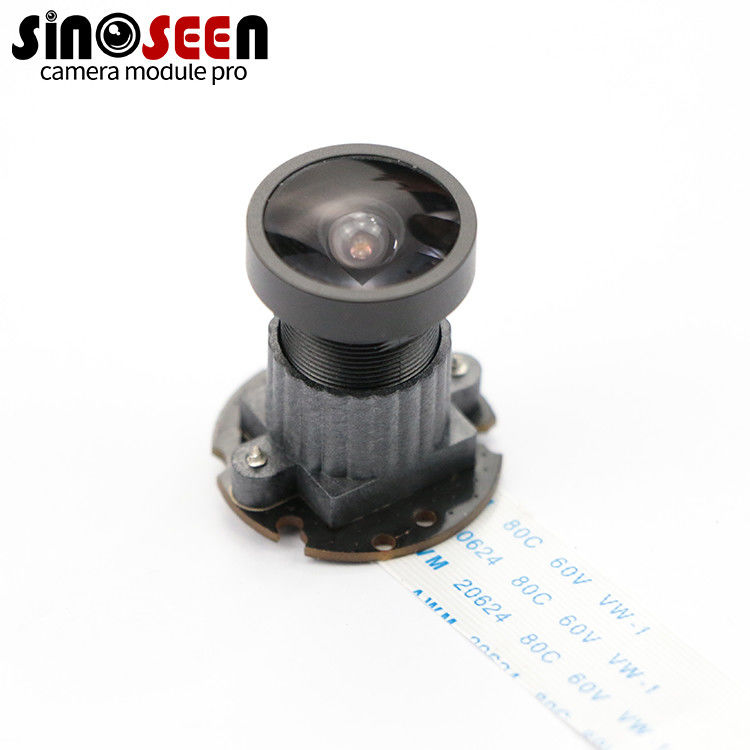

Omnivision OS05A10 Raspberry Pi 5MP Camera Module 2688x1944 MIPI Interface
Raspberry Pi MIPI color image fixed focus 5 MP camera module with Omnivision sensor OS05A10
Specification:5MP Camera Module
Model No | SNS-5MP-OS05A10-M1 |
Sensor | 1/2.7" Omnivision OS05A10 |
Pixel | 5MP |
Most effective pixels | 2688x1944 |
Pixel Size | 2.0 µm x 2.0 µm |
Min illumination | 530nm |
Compression format | MJPG / YUY2 |
Resolution & Frame rate | 2688x1944: 60 fps |
Shutter Type | Electronic rolling shutter |
Focus type | Fixed focus |
S/N ratio | TBDdB |
Dynamic range | TBDdB |
Sensitivity | 13,000 e- /Lux-sec |
Interface type | MIPI |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ |
Lens FOV | 100° |
Audio frequency | Support |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | Customizable |
Storage temperature | -20°C to 70°C |
Operating temperature | -30°C to 85°C |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
