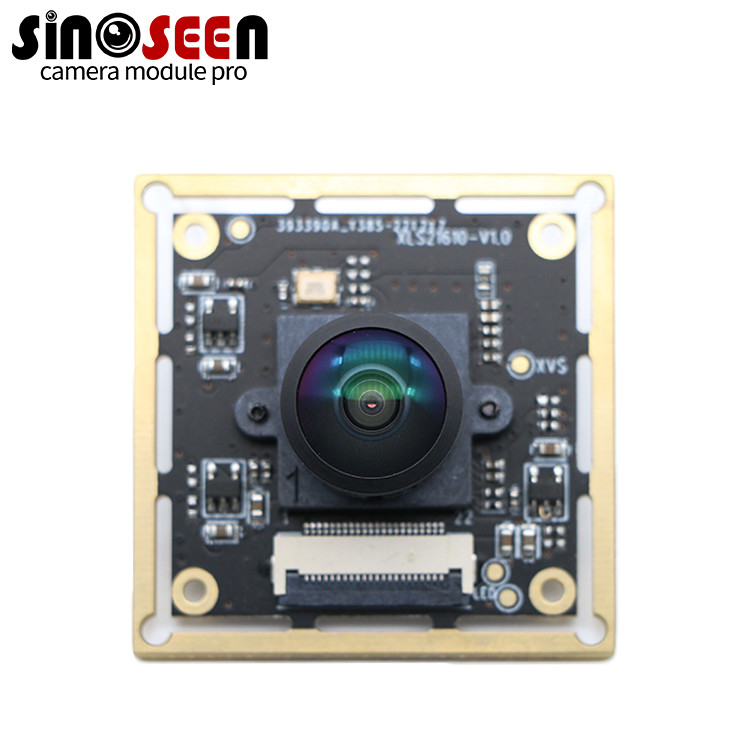

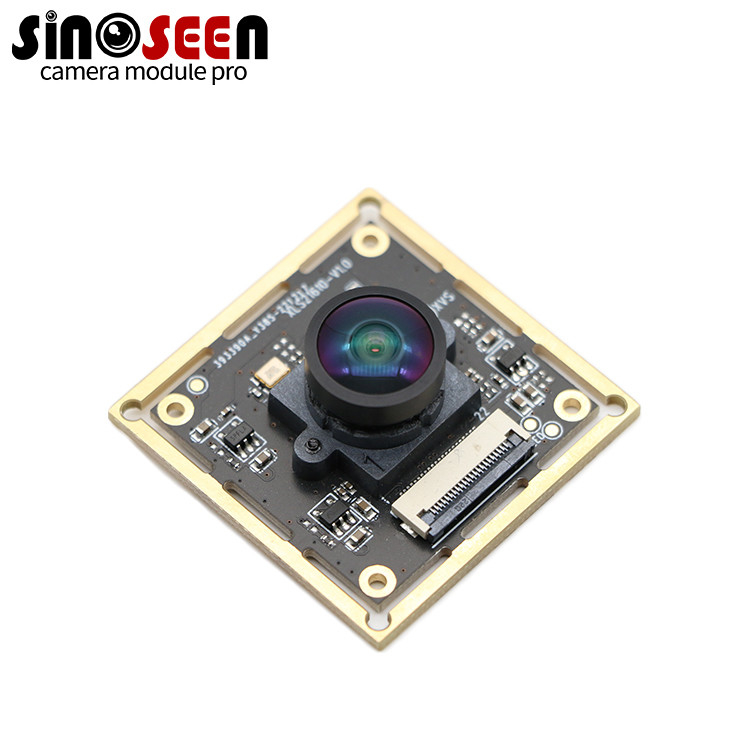

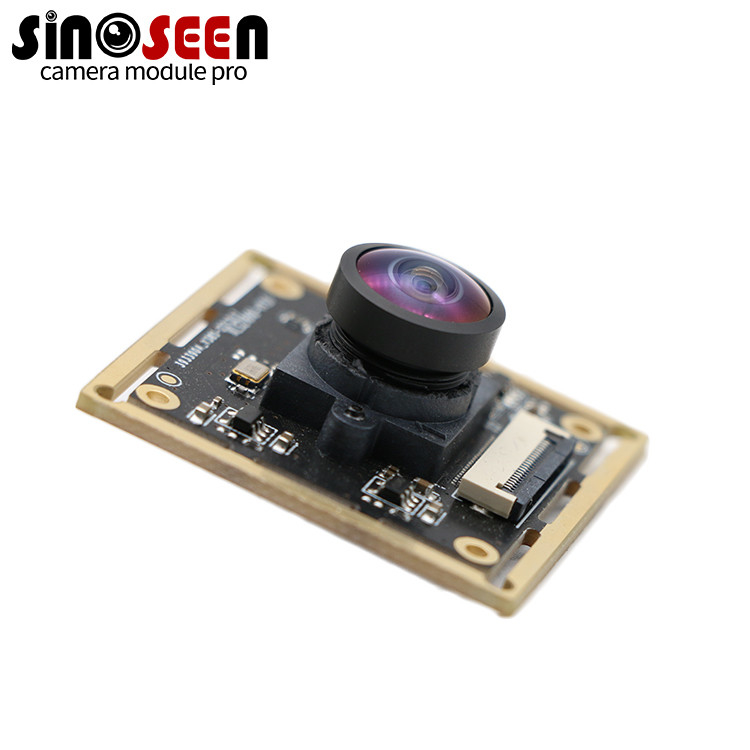

Night vision 2mp WDR MIPI 1080p Camera Module With Sony IMX290 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-21610-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.8" SONY IMX290 |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 120°(optional) | Focus Type: | Fixed Focus |
| Interface: | Mipi | Feature: | Night Vision |
| Highlight: | IMX290 1080p Camera Module,IMX290 2mp Camera Module,38mmx38mm Imx290 Camera Module |
||
Product Description
Night Vision 2mp WDR MIPI 1080p Camera Module With Sony IMX290 Sensor
2mp 1080p Wdr Mipi Camera Module Sony Imx290 Sensor
1080p Wdr mipi camera module
This is a Full HD mipi USB camera module with SONY sensor IMX290. The IMX290 is a 6.46 mm diagonal (Type 1/2.8) CMOS active pixel solid-state image sensor with a square pixel array and 2.13 M effective pixels.
This is a low-light starlight USB camera module with WDR function, which can take very good picture quality in low-light environment. Can be applied to surveillance cameras, FA cameras, industrial cameras, etc.
Specification:SONY IMX290 camera module
|
Model No |
SNS-21610-V1.0 |
|
Sensor |
1/2.8’’ SONY IMX290 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.9µm x 2.9µm |
|
Image area |
1937(H) x 1097(V) |
|
Compression format |
MJPEG / YUV2/H.264 |
|
Resolution & Frame rate |
1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
52dB |
|
Dynamic range |
72dB |
|
Sensitivity |
7757 mV / lux-sec |
|
Interface type |
USB2.0 and SPI |
|
Adjustable parameter |
Brightness |
|
Lens |
Optical length: 18.6mm |
|
|
F/NO: 2.4 |
|
|
FOV: D=120° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 260mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
NOT Support |
|
Auto White Balance (AEB) |
NOT Support |
|
Auto Gain Control (AGC) |
NOT Support |
|
Dimension |
38mm x 38mm |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
