Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-OS02C10-M1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: MIPI Camera Module Sensor: 1/2.8" Omnivision OS02C10
Resolution: 2MP 1920x1080 Dimensions: Customizable
Lens FOV: 160° Focus Type: Fixed Focus
Interface: MIPI CSI4 Feature: Fisheye Lens
High Light:

OS02C10 MIPI Camera Module

,

CSI4 MIPI Camera Module

,

OS02C10 csi camera module

Product Description

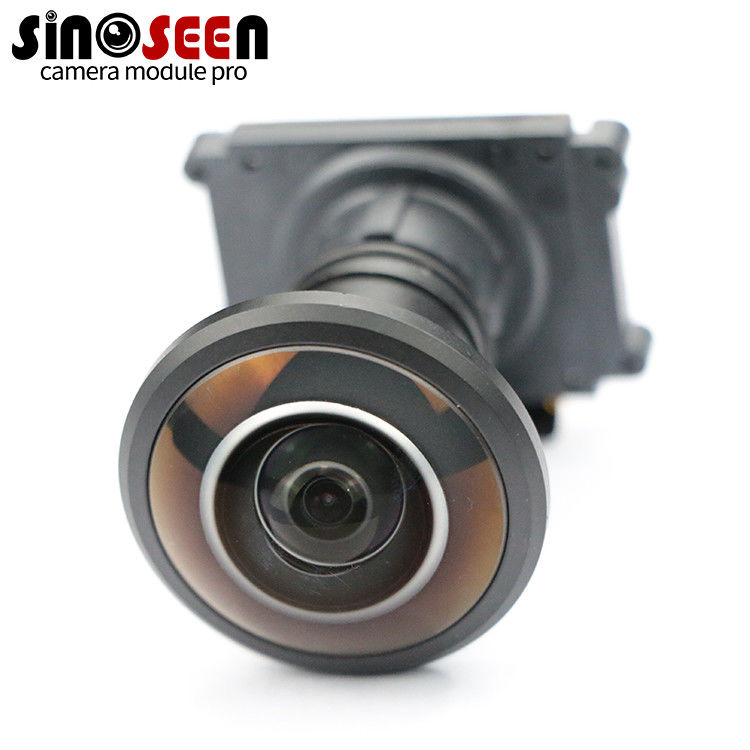

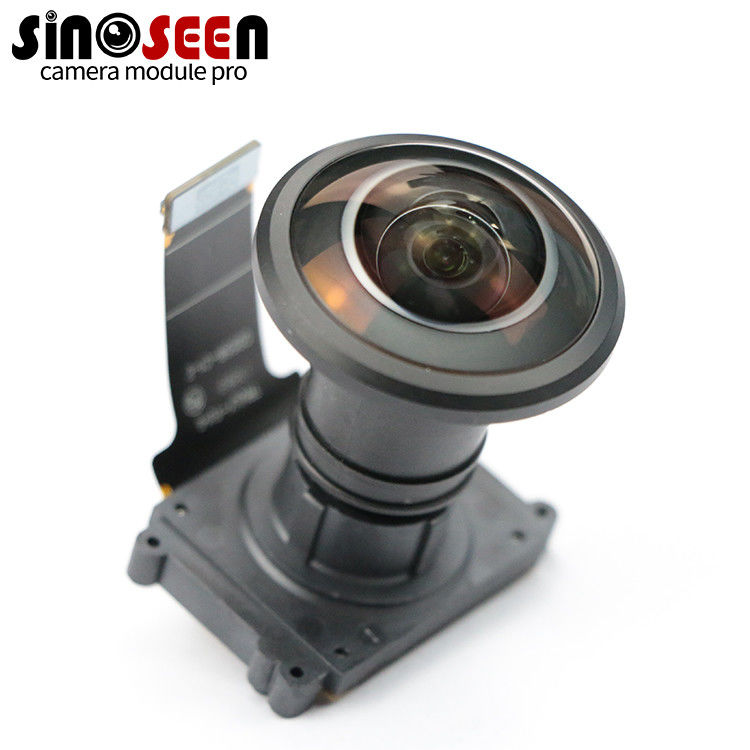

Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

Fisheye Lens Fixed Focus HDR High Dynamic Range MIPI CSI4 Camera Module With Omnivision Sensor OS02C10



This is a fisheye lens fixed focus HDR MIPI camera module with sensor OS02C10 from Omnivision,OS02C10 is a very good sensor widely used in security camera,action camera and high resolution consumer camera.It has below fetures:





QE enhancement in NIR range



support for image size: 1920x1080, VGA, QVGA,

and any cropped size



high dynamic range



high sensitivity



image sensor processor functions: defective pixel

cancelation, DCG combination, automatic black level

correction, PWL compression, etc.



pixel data: 12b RAW RGB



SCCB for register programming



programmable GPIOs



high speed serial data transfer with MIPI CSI-2 or

LVDS



external frame synchronization capability



embedded temperature sensor



one-time programmable (OTP) memory



Specification



Model No

SNS-2MP-OS02C10-M1

Sensor

1/2.8" Omnivision OS02C10

Pixel

2MP

Most effective pixels

1920x1080

Pixel Size

2.9 µm x 2.9 µm

Min illumination

530nm

Compression format

MJPG / YUY2

Resolution & Frame rate

40X3 fps @ 1080p in 10-bit

30X3 fps @ 1080p in 12-bit

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

TBDdB

Dynamic range

TBDdB

Sensitivity

32,000 e- /Lux-sec

Interface type

MIPI

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens FOV

160°

Audio frequency

Support

Power consumption

DC 5V, 100mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

-30°C to 85°C

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
